Magnitude |
:3.4 |
| Date & Time (UTC) | 2016-10-05 19:51:51.8 |
| Date & Time (Local) | 1395/7/14 23:21:51.8 |

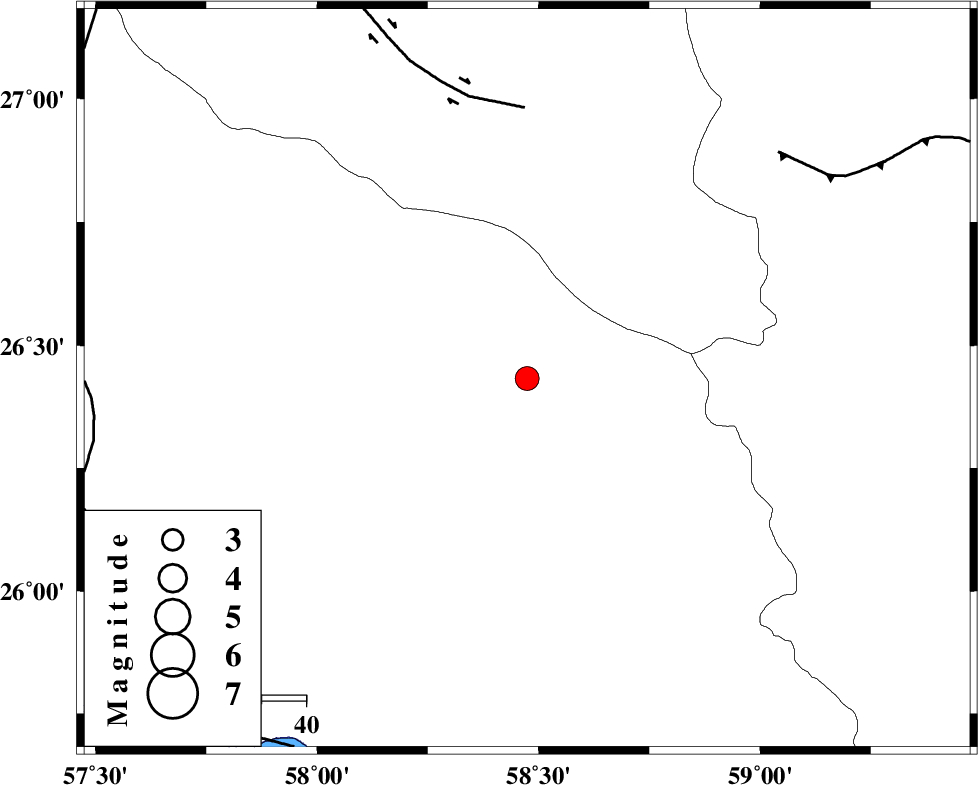

| Location | Lat:26.432 Lon: 58.474 |
| Region | Hormozgan Province, 113 km North-East of Jask |
Nearest Cities |
|
| 55 km South West of Ramashk, Kerman Province | |
| 60 km South East of Angahran, Hormozgan Province | |
| 61 km North West of Tutan, Sistan va Baloochestan Province | |
| 90 km North East of Yekdar, Hormozgan Province | |
| 93 km South East of Darpahn, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| JIROFT_F (Length: 144 km) , Distance to epicenter: 61 km | |
| S_JAZMURIAN_F (Length: 91 km) , Distance to epicenter: 76 km | |
| MAKRAN_F (Length: 414 km) , Distance to epicenter: 96 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109821 | IIEES | CHBR | N | 277.9 | 0.55 | 2016-10-05 19:52:58 | 2016-10-08 08:54:00 | n |
| 109822 | IIEES | CHBR | E | 261.3 | 0.55 | 2016-10-05 19:53:26 | 2016-10-08 08:54:00 | n |
| 109823 | IIEES | KRBR | N | 50.8 | 0.63 | 2016-10-05 19:54:24 | 2016-10-08 08:54:00 | n |
| 109824 | IIEES | KRBR | E | 47.4 | 0.84 | 2016-10-05 19:54:31 | 2016-10-08 08:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2016-10-05 19:52:26 | 0 | y | 221 | 114 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-05 19:52:51 | -0.01 | y | 419 | 32 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-05 19:52:52 | -0.11 | y | 428 | 337 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-05 19:53:16 | -0.02 | y | 617 | 6 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-05 19:53:34 | 0 | y | 760 | 331 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-05 19:53:39 | -0.27 | y | 811 | 351 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-05 19:53:41 | 0.12 | y | 819 | 12 | |||
| IIEES | NASN | Z | P | E | 2016-10-05 19:53:50 | 0.15 | y | 894 | 323 | |||
| IIEES | SHRO | Z | P | E | 2016-10-05 19:54:15 | 0.79 | y | 1087 | 348 | |||
