Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-10-10 00:22:37.6 |
| Date & Time (Local) | 1395/7/19 03:52:37.6 |
| Location | Lat:30.71 Lon: 50.997 |
| Region | Kohkiluieh va boyerahmad Province, 42 km -East of Dehdasht |
Nearest Cities |
|
| 29 km North of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 30 km West of Chitab, Kohkiluieh va boyerahmad Province | |
| 31 km South East of Savari, Kohkiluieh va boyerahmad Province | |
| 32 km South of Margun, Kohkiluieh va boyerahmad Province | |
| 37 km North West of Sepidar, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |

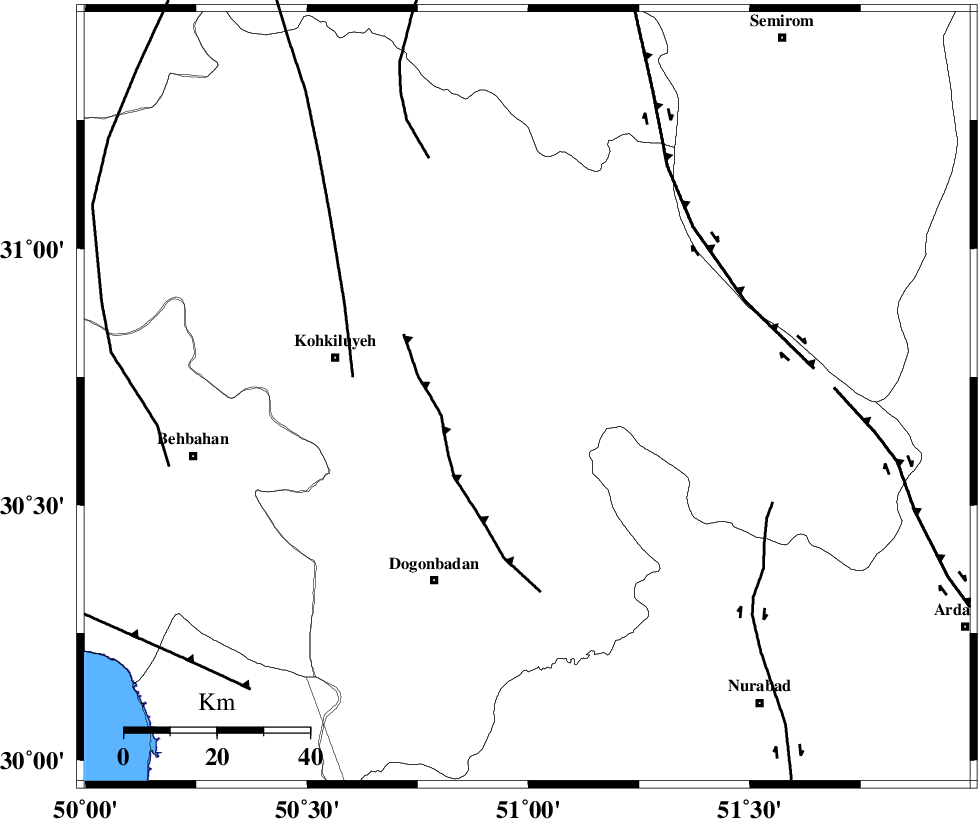

Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 34 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 52 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 58 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109869 | IIEES | AHRM | N | 377.8 | 0.55 | 2016-10-10 00:23:40 | 2016-10-10 05:54:00 | n |
| 109870 | IIEES | AHRM | E | 213 | 0.5 | 2016-10-10 00:23:41 | 2016-10-10 05:54:00 | n |
| 109871 | IIEES | KHMZ | E | 32.5 | 0.77 | 2016-10-10 00:24:21 | 2016-10-10 05:54:00 | n |
| 109872 | IIEES | KHMZ | N | 32.2 | 0.64 | 2016-10-10 00:24:30 | 2016-10-10 05:54:00 | n |
| 109873 | IIEES | YZKH | N | 22.7 | 0.66 | 2016-10-10 00:24:34 | 2016-10-10 05:54:00 | n |
| 109874 | IIEES | ASAO | N | 36.5 | 0.61 | 2016-10-10 00:24:29 | 2016-10-10 05:54:00 | n |
| 109875 | IIEES | ASAO | E | 15.6 | 0.61 | 2016-10-10 00:24:50 | 2016-10-10 05:54:00 | n |
| 109876 | IIEES | KRBR | N | 8.3 | 0.45 | 2016-10-10 00:24:58 | 2016-10-10 05:54:00 | n |
| 109877 | IIEES | KRBR | E | 9.5 | 0.32 | 2016-10-10 00:24:58 | 2016-10-10 05:54:00 | n |
| 109878 | IIEES | SNGE | N | 12.3 | 0.5 | 2016-10-10 00:25:05 | 2016-10-10 05:54:00 | n |
| 109879 | IIEES | SNGE | E | 9.2 | 0.25 | 2016-10-10 00:25:11 | 2016-10-10 05:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-10-10 00:23:10 | 0.1 | y | 207 | 172 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-10 00:23:21 | -0.09 | y | 288 | 36 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-10 00:23:29 | 0.2 | y | 350 | 344 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-10 00:23:34 | 0.48 | y | 389 | 60 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-10 00:23:39 | -0.09 | y | 435 | 348 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-10 00:23:54 | -0.57 | y | 560 | 97 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-10 00:23:57 | 0.49 | y | 577 | 1 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-10 00:23:58 | -0.42 | y | 594 | 326 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-10 00:24:07 | 0.21 | y | 663 | 59 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-10 00:24:17 | -0.66 | y | 750 | 37 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-10 00:24:23 | 0.17 | y | 786 | 78 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-10 00:24:36 | -0.45 | y | 902 | 30 | |||
