Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-10-14 02:46:59.5 |
| Date & Time (Local) | 1395/7/23 06:16:59.5 |

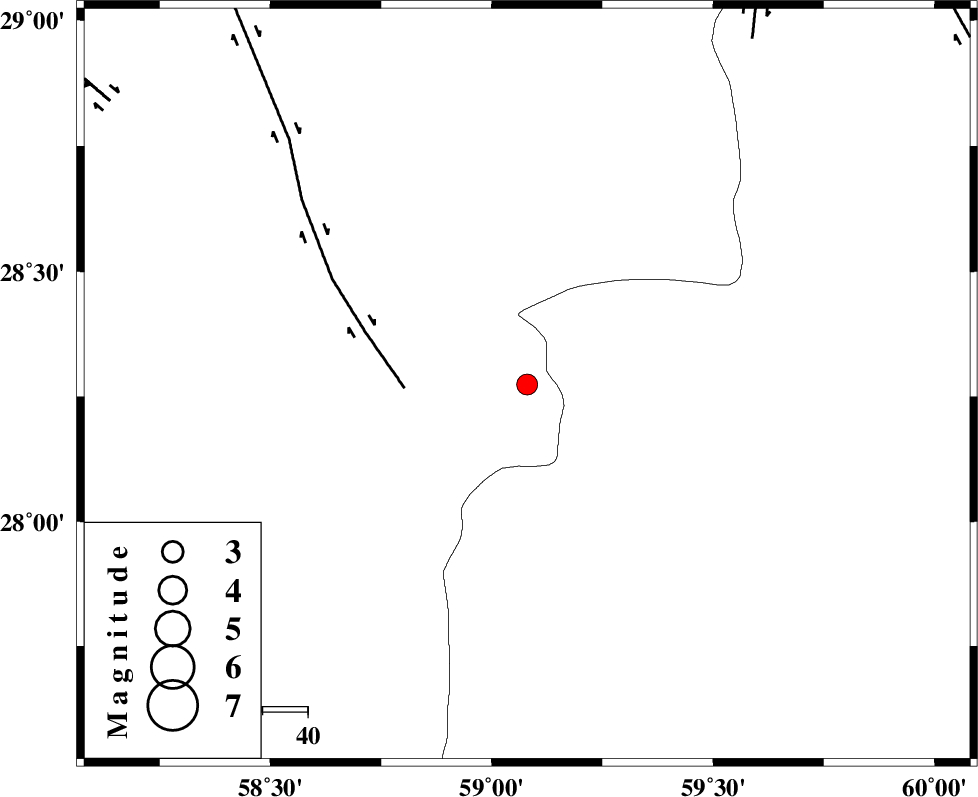

| Location | Lat:28.274 Lon: 59.08 |
| Region | Kerman Province, 117 km South-East of Bam |
Nearest Cities |
|
| 48 km South of Hoseynabad, Kerman Province | |
| 53 km South East of Mohammadabad-e gonbaki, Kerman Province | |
| 62 km North East of Borj-e abbasabad, Kerman Province | |
| 69 km South East of Void, Kerman Province | |
| 78 km South East of Fahroj, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 27 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 91 km | |
| DAMAN_F (Length: 167 km) , Distance to epicenter: 111 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109900 | IIEES | ZHSF | E | 54.5 | 0.45 | 2016-10-14 02:48:06 | 2016-10-15 08:03:00 | n |
| 109901 | IIEES | ZHSF | N | 57.2 | 0.48 | 2016-10-14 02:48:09 | 2016-10-15 08:03:00 | n |
| 109902 | IIEES | KRBR | N | 31.7 | 0.34 | 2016-10-14 02:48:24 | 2016-10-15 08:03:00 | n |
| 109903 | IIEES | KRBR | E | 51.8 | 0.58 | 2016-10-14 02:48:31 | 2016-10-15 08:03:00 | n |
| 109904 | IIEES | BSRN | E | 20.4 | 0.45 | 2016-10-14 02:49:03 | 2016-10-15 08:03:00 | n |
| 109905 | IIEES | BSRN | N | 19.5 | 0.37 | 2016-10-14 02:49:04 | 2016-10-15 08:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pg | E | 2016-10-14 02:47:35 | -0.02 | y | 222 | 48 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-14 02:47:44 | 0.42 | y | 295 | 311 | |||
| IIEES | KRBR | E | Sg | E | 2016-10-14 02:48:22 | -0.19 | y | 295 | 311 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-14 02:47:58 | 0.17 | y | 409 | 1 | |||
| IIEES | BSRN | N | Sg | E | 2016-10-14 02:48:54 | 0.21 | y | 409 | 1 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-14 02:48:22 | -0.46 | y | 607 | 11 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-14 02:48:24 | -0.46 | y | 625 | 343 | |||
