Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-10-13 05:37:57.6 |
| Date & Time (Local) | 1395/7/22 09:07:57.6 |

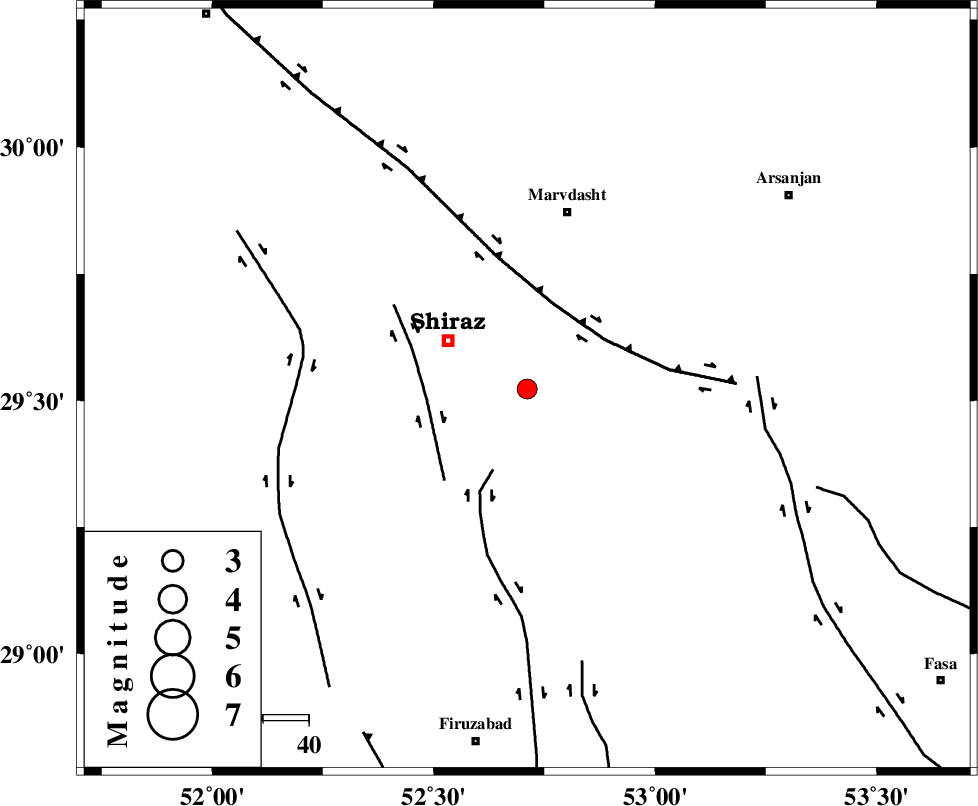

| Location | Lat:29.523 Lon: 52.711 |
| Region | Fars Province, 20 km -East of Shiraz |
Nearest Cities |
|
| 12 km East of Soltanabad, Fars Province | |
| 20 km East of Shiraz, Fars Province | |
| 22 km West of Darian, Fars Province | |
| 22 km North West of Maharlu, Fars Province | |
| 28 km South of Zarghan, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 19 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 20 km | |
| SABZ_PUSHAN_F_Z3 (Length: 37 km) , Distance to epicenter: 22 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109972 | IIEES | AHRM | N | 112.4 | 0.53 | 2016-10-13 05:38:46 | 2016-10-15 11:46:00 | n |
| 109973 | IIEES | AHRM | E | 71 | 0.76 | 2016-10-13 05:38:57 | 2016-10-15 11:46:00 | n |
| 109974 | IIEES | KRBR | E | 17 | 0.66 | 2016-10-13 05:39:57 | 2016-10-15 11:46:00 | n |
| 109975 | IIEES | KRBR | N | 18.6 | 0.6 | 2016-10-13 05:39:59 | 2016-10-15 11:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-10-13 05:38:23 | -0.05 | y | 156 | 242 | |||
| IIEES | AHRM | N | Sg | E | 2016-10-13 05:38:42 | 0.03 | y | 156 | 242 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-13 05:38:50 | -0.12 | y | 363 | 1 | |||
| IIEES | NASN | E | S | E | 2016-10-13 05:39:29 | 0.09 | y | 363 | 1 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-13 05:38:50 | -0.17 | y | 365 | 29 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-13 05:38:54 | 0.09 | y | 395 | 82 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-13 05:39:12 | 0.07 | y | 535 | 332 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-13 05:39:21 | 0.04 | y | 612 | 336 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-13 05:39:22 | 0.09 | y | 620 | 41 | |||
