Magnitude |
:3.6 |
| Date & Time (UTC) | 2016-10-18 00:05:39.7 |
| Date & Time (Local) | 1395/7/27 03:35:39.7 |

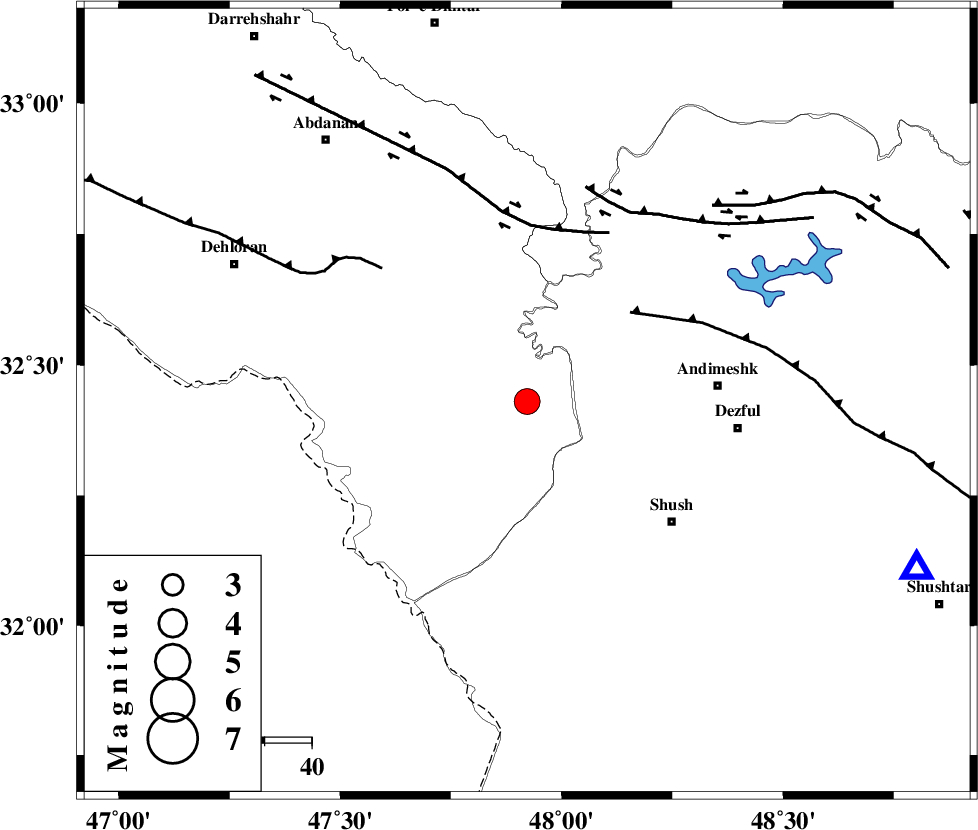

| Location | Lat:32.43 Lon: 47.922 |
| Region | Ilam Province, 40 km -West of Andimeshk |
Nearest Cities |
|
| 40 km North West of Shush, Khoozestan Province | |
| 40 km West of Andimeshk, Khoozestan Province | |
| 41 km South West of Hoseinieh, Khoozestan Province | |
| 44 km North West of Amaleh teimur, Khoozestan Province | |
| 45 km North West of Dezful, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 29 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 37 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 42 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 4 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110024 | IIEES | KHMZ | E | 205.5 | 0.56 | 2016-10-18 00:06:50 | 2016-10-19 06:38:00 | n |
| 110025 | IIEES | SNGE | N | 192.6 | 0.77 | 2016-10-18 00:07:10 | 2016-10-19 06:38:00 | n |
| 110026 | IIEES | SNGE | E | 169.5 | 0.72 | 2016-10-18 00:07:14 | 2016-10-19 06:38:00 | n |
| 110027 | IIEES | ASAO | E | 143.4 | 0.52 | 2016-10-18 00:07:11 | 2016-10-19 06:38:00 | n |
| 110028 | IIEES | ASAO | N | 126.4 | 0.58 | 2016-10-18 00:07:14 | 2016-10-19 06:38:00 | n |
| 110029 | IIEES | GHVR | E | 152.3 | 0.58 | 2016-10-18 00:07:30 | 2016-10-19 06:38:00 | n |
| 110030 | IIEES | AHRM | E | 48 | 0.63 | 2016-10-18 00:08:34 | 2016-10-19 06:38:00 | n |
| 110031 | IIEES | AHRM | N | 50.6 | 0.53 | 2016-10-18 00:08:35 | 2016-10-19 06:38:00 | n |
| 110032 | IIEES | GIDE | N | 22.3 | 0.48 | 2016-10-18 00:08:27 | 2016-10-19 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-18 00:06:17 | 0.43 | y | 240 | 52 | |||
| IIEES | KHMZ | N | Sg | E | 2016-10-18 00:06:47 | 0.07 | y | 240 | 52 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-18 00:06:24 | 0.01 | y | 300 | 350 | |||
| IIEES | SNGE | E | Sg | E | 2016-10-18 00:07:04 | -0.05 | y | 300 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-18 00:06:25 | 0.08 | y | 306 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-18 00:06:33 | -1.62 | n | 4 | 384 | 53 | ||
| IIEES | NASN | Z | Pn | E | 2016-10-18 00:06:44 | -0.27 | y | 460 | 84 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-10-18 00:06:46 | 0.06 | y | 476 | 8 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-18 00:06:47 | 0.13 | y | 486 | 37 | |||
| IIEES | AHRM | Z | Pn | E | 2016-10-18 00:06:50 | 0.43 | y | 511 | 140 | |||
| IIEES | GIDE | Z | Pn | E | 2016-10-18 00:06:52 | -0.37 | y | 531 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-18 00:07:04 | -0.42 | y | 627 | 89 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-18 00:07:31 | -0.16 | y | 844 | 60 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-18 00:07:34 | -0.37 | y | 869 | 79 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-18 00:07:36 | -0.32 | y | 885 | 106 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-18 00:07:58 | -0.38 | y | 1057 | 90 | |||
