Magnitude |
:4.8 |
| Date & Time (UTC) | 2016-10-20 15:10:29.3 |
| Date & Time (Local) | 1395/7/29 18:40:29.3 |

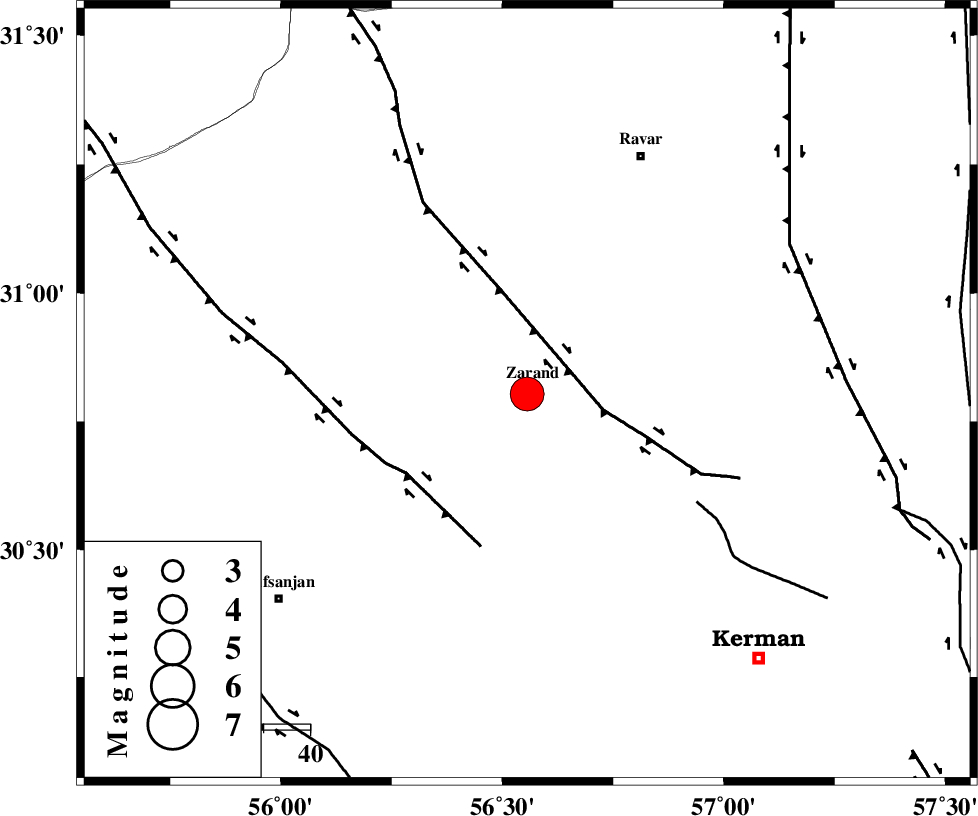

| Location | Lat:30.803 Lon: 56.556 |
| Region | Kerman Province, 1 km of Zarand |
Nearest Cities |
|
| 1 km of Zarand, Kerman Province | |
| 3 km North of Mohammadabad, Kerman Province | |
| 11 km North of Bahaabad, Kerman Province | |
| 22 km West of Hatkan, Kerman Province | |
| 24 km North West of Khankuk, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 17 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 31 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 43 km | |
| Number of Phases | 23 |
| RMS | 0.3 |
| Number of Stations | 22 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110036 | IIEES | KRBR | N | 24413.3 | 0.3 | 2016-10-20 15:11:01 | 2016-10-22 06:04:00 | n |
| 110037 | IIEES | KRBR | E | 24720.6 | 0.21 | 2016-10-20 15:11:02 | 2016-10-22 06:04:00 | n |
| 110038 | IIEES | YZKH | N | 11445.7 | 0.42 | 2016-10-20 15:11:45 | 2016-10-22 06:04:00 | n |
| 110039 | IIEES | YZKH | E | 6630 | 0.38 | 2016-10-20 15:11:45 | 2016-10-22 06:04:00 | n |
| 110040 | IIEES | TABS | E | 1645.3 | 0.85 | 2016-10-20 15:12:13 | 2016-10-22 06:04:00 | n |
| 110041 | IIEES | NASN | N | 1145 | 0.46 | 2016-10-20 15:12:30 | 2016-10-22 06:04:00 | n |
| 110042 | IIEES | NASN | E | 1279.6 | 0.46 | 2016-10-20 15:12:32 | 2016-10-22 06:04:00 | n |
| 110043 | IIEES | ZHSF | N | 657.2 | 0.63 | 2016-10-20 15:12:40 | 2016-10-22 06:04:00 | n |
| 110044 | IIEES | ZHSF | E | 486.9 | 0.7 | 2016-10-20 15:12:44 | 2016-10-22 06:04:00 | n |
| 110045 | IIEES | SHRO | E | 467 | 0.49 | 2016-10-20 15:13:28 | 2016-10-22 06:04:00 | n |
| 110046 | IIEES | SHRO | N | 372 | 0.57 | 2016-10-20 15:13:36 | 2016-10-22 06:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-20 15:10:45 | -0.07 | y | 93.1 | 168 | |||
| IIEES | KRBR | N | Sg | E | 2016-10-20 15:10:57 | 0.06 | y | 93.1 | 168 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-20 15:11:09 | -0.12 | y | 256 | 314 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-20 15:11:11 | -0.44 | y | 276 | 62 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-20 15:11:17 | 0.43 | y | 320 | 9 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-20 15:11:29 | -0.23 | y | 418 | 303 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-20 15:11:31 | 0.45 | y | 427 | 107 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-20 15:11:36 | 0.14 | y | 473 | 47 | |||
| IIEES | AHRM | Z | Pn | E | 2016-10-20 15:11:46 | 0.21 | y | 552 | 248 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-20 15:11:49 | -0.2 | y | 580 | 355 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-20 15:11:57 | -0.1 | y | 644 | 311 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-20 15:12:02 | -0.42 | y | 685 | 323 | |||
| IIEES | CHBR | Z | Pn | E | 2016-10-20 15:12:03 | -0.51 | y | 694 | 145 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-20 15:12:05 | 0.41 | y | 701 | 299 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-20 15:12:09 | 0.14 | y | 740 | 306 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-20 15:12:11 | -0.15 | y | 759 | 320 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-20 15:12:12 | 0.38 | y | 762 | 357 | |||
| IIEES | BJRD | Z | Pn | E | 2016-10-20 15:12:13 | -0.18 | y | 769 | 6 | |||
| IIEES | GIDE | Z | Pn | E | 2016-10-20 15:12:31 | 0.4 | y | 916 | 320 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-10-20 15:12:39 | 0.24 | y | 977 | 314 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-20 15:12:39 | -0.26 | y | 983 | 301 | |||
| IIEES | GRMI | Z | Pn | E | 2016-10-20 15:13:05 | 0.01 | y | 1190 | 321 | |||
| IIEES | MAKU | Z | Pn | E | 2016-10-20 15:13:36 | 0.62 | y | 1438 | 315 | |||
