Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-10-20 15:27:55.1 |
| Date & Time (Local) | 1395/7/29 18:57:55.1 |
| Location | Lat:30.812 Lon: 56.589 |
| Region | Kerman Province, 2 km of Zarand |
Nearest Cities |
|
| 2 km North of Zarand, Kerman Province | |
| 5 km North of Mohammadabad, Kerman Province | |
| 10 km North of Bahaabad, Kerman Province | |
| 19 km West of Hatkan, Kerman Province | |
| 21 km North West of Khankuk, Kerman Province | |
| Depth | 9 km |
| Agency | |

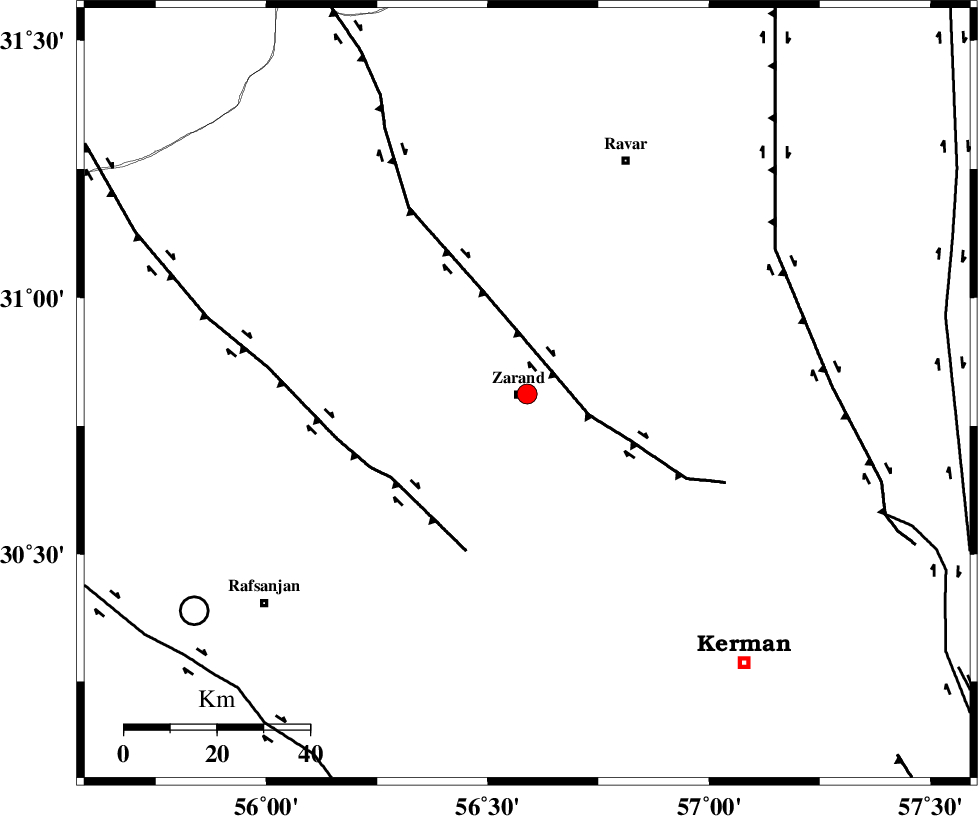

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 14 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 34 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 41 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 2 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110077 | IIEES | KRBR | E | 322.7 | 0.27 | 2016-10-20 15:28:28 | 2016-10-22 08:28:00 | n |
| 110078 | IIEES | KRBR | N | 342 | 0.21 | 2016-10-20 15:28:29 | 2016-10-22 08:28:00 | n |
| 110079 | IIEES | YZKH | N | 65.1 | 0.33 | 2016-10-20 15:29:10 | 2016-10-22 08:28:00 | n |
| 110080 | IIEES | YZKH | E | 44.5 | 0.38 | 2016-10-20 15:29:14 | 2016-10-22 08:28:00 | n |
| 110081 | IIEES | NASN | N | 7.8 | 0.46 | 2016-10-20 15:29:57 | 2016-10-22 08:28:00 | n |
| 110082 | IIEES | NASN | E | 10.2 | 0.5 | 2016-10-20 15:30:01 | 2016-10-22 08:28:00 | n |
| 110083 | IIEES | SHRO | E | 3 | 0.44 | 2016-10-20 15:30:45 | 2016-10-22 08:28:00 | n |
| 110084 | IIEES | SHRO | N | 3.4 | 0.59 | 2016-10-20 15:30:57 | 2016-10-22 08:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-20 15:28:11 | -0.04 | y | 93.5 | 170 | |||
| IIEES | KRBR | N | Sg | E | 2016-10-20 15:28:23 | 0.04 | y | 93.5 | 170 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-20 15:28:35 | -0.14 | y | 258 | 313 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-20 15:28:37 | -0.05 | y | 273 | 61 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-20 15:28:43 | 0.08 | y | 319 | 9 | |||
| IIEES | NASN | Z | P | E | 2016-10-20 15:28:56 | 0.1 | y | 420 | 303 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-20 15:29:01 | 0 | y | 470 | 47 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-20 15:29:15 | 0.07 | y | 579 | 355 | |||
