Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-10-22 15:08:07.2 |
| Date & Time (Local) | 1395/8/1 18:38:07.2 |

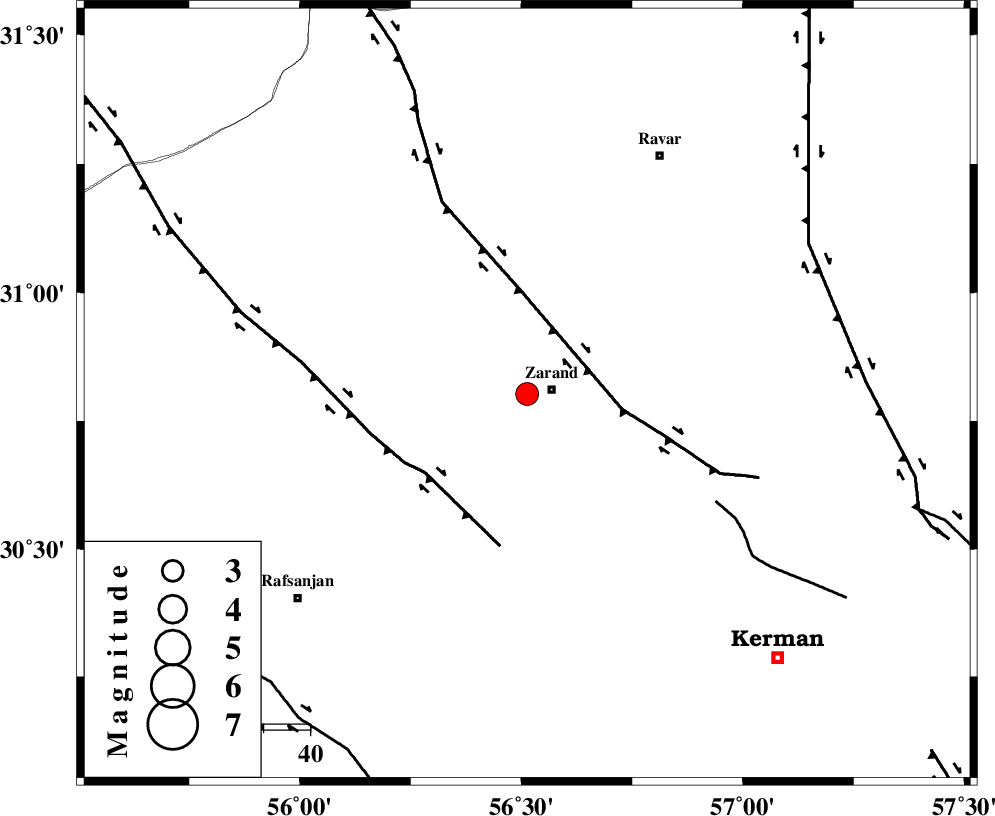

| Location | Lat:30.802 Lon: 56.513 |
| Region | Kerman Province, 5 km of Zarand |
Nearest Cities |
|
| 4 km North of Mohammadabad, Kerman Province | |
| 5 km of Zarand, Kerman Province | |
| 15 km North West of Bahaabad, Kerman Province | |
| 25 km North East of Jorjanak, Kerman Province | |
| 26 km South West of Ahmadi, Kerman Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 21 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 28 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 47 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110148 | IIEES | KRBR | N | 1076.5 | 0.06 | 2016-10-22 15:08:37 | 2016-10-23 06:51:00 | n |
| 110149 | IIEES | KRBR | E | 863.9 | 0.33 | 2016-10-22 15:08:38 | 2016-10-23 06:51:00 | n |
| 110150 | IIEES | YZKH | N | 201.1 | 0.45 | 2016-10-22 15:09:22 | 2016-10-23 06:51:00 | n |
| 110151 | IIEES | YZKH | E | 132.8 | 0.32 | 2016-10-22 15:09:26 | 2016-10-23 06:51:00 | n |
| 110152 | IIEES | TABS | N | 64.1 | 0.68 | 2016-10-22 15:09:48 | 2016-10-23 06:51:00 | n |
| 110153 | IIEES | NASN | E | 37.3 | 0.39 | 2016-10-22 15:10:13 | 2016-10-23 06:51:00 | n |
| 110154 | IIEES | ZHSF | N | 21.4 | 0.47 | 2016-10-22 15:10:15 | 2016-10-23 06:51:00 | n |
| 110155 | IIEES | SHRO | E | 10.8 | 0.35 | 2016-10-22 15:11:01 | 2016-10-23 06:51:00 | n |
| 110156 | IIEES | SHRO | N | 12 | 0.69 | 2016-10-22 15:11:09 | 2016-10-23 06:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-22 15:08:23 | -0.03 | y | 93.9 | 165 | |||
| IIEES | KRBR | N | Sg | E | 2016-10-22 15:08:35 | 0 | y | 93.9 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-22 15:08:47 | -0.01 | y | 253 | 315 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-22 15:08:49 | -0.8 | n | 4 | 280 | 62 | ||
| IIEES | TABS | Z | Pn | E | 2016-10-22 15:08:55 | 0.09 | y | 321 | 10 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-22 15:09:07 | 0.09 | y | 415 | 303 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-22 15:09:09 | 0.01 | y | 431 | 107 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-22 15:09:15 | 0.04 | y | 476 | 47 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-22 15:09:27 | -0.27 | y | 579 | 356 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-22 15:09:50 | 0.01 | y | 762 | 357 | |||
