Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-10-22 19:27:02.9 |
| Date & Time (Local) | 1395/8/1 22:57:02.9 |

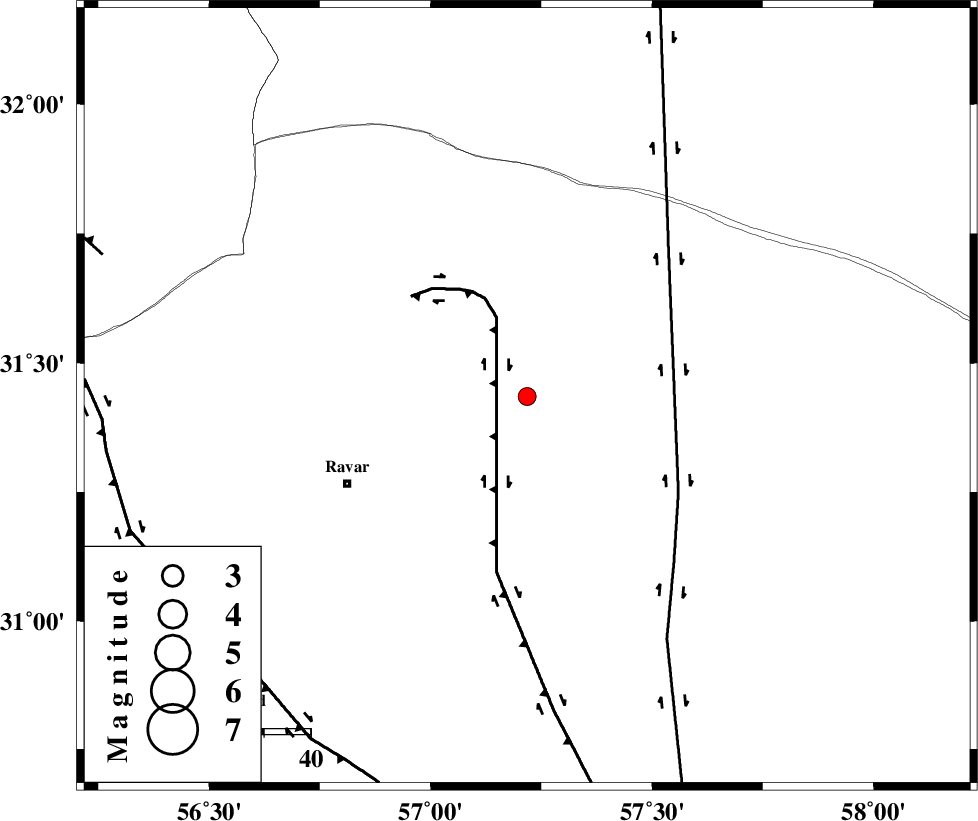

| Location | Lat:31.435 Lon: 57.218 |
| Region | Kerman Province, 43 km North-East of Ravar |
Nearest Cities |
|
| 42 km North East of Dehali, Kerman Province | |
| 43 km North East of Ravar, Kerman Province | |
| 73 km North East of Ahmadi, Kerman Province | |
| 75 km North East of Dasht-e khak, Kerman Province | |
| 78 km North East of Hatkan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 18 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 38 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 84 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110157 | IIEES | KRBR | E | 95.1 | 0.36 | 2016-10-22 19:27:55 | 2016-10-23 06:51:00 | n |
| 110158 | IIEES | KRBR | N | 63.7 | 0.28 | 2016-10-22 19:27:59 | 2016-10-23 06:51:00 | n |
| 110159 | IIEES | BSRN | N | 31.7 | 0.26 | 2016-10-22 19:28:01 | 2016-10-23 06:51:00 | n |
| 110160 | IIEES | BSRN | E | 28.4 | 0.38 | 2016-10-22 19:28:04 | 2016-10-23 06:51:00 | n |
| 110161 | IIEES | TABS | N | 24.3 | 0.33 | 2016-10-22 19:28:18 | 2016-10-23 06:51:00 | n |
| 110162 | IIEES | YZKH | N | 19.6 | 0.36 | 2016-10-22 19:28:20 | 2016-10-23 06:51:00 | n |
| 110163 | IIEES | YZKH | E | 20.6 | 0.36 | 2016-10-22 19:28:21 | 2016-10-23 06:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-22 19:27:30 | -0.01 | y | 167 | 195 | |||
| IIEES | KRBR | N | Sg | E | 2016-10-22 19:27:50 | -0.14 | y | 167 | 195 | |||
| IIEES | BSRN | Z | Pg | E | 2016-10-22 19:27:34 | 0.12 | y | 190 | 72 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-22 19:27:41 | -0.06 | y | 246 | 358 | |||
| IIEES | TABS | E | Sg | E | 2016-10-22 19:28:12 | -0.18 | y | 246 | 358 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-22 19:27:44 | 0.13 | y | 270 | 294 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-22 19:28:06 | 6.01 | n | 4 | 397 | 120 | ||
| IIEES | NASN | Z | Pn | E | 2016-10-22 19:28:06 | 0.2 | y | 443 | 291 | |||
