Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-10-23 13:30:55.6 |
| Date & Time (Local) | 1395/8/2 17:00:55.6 |

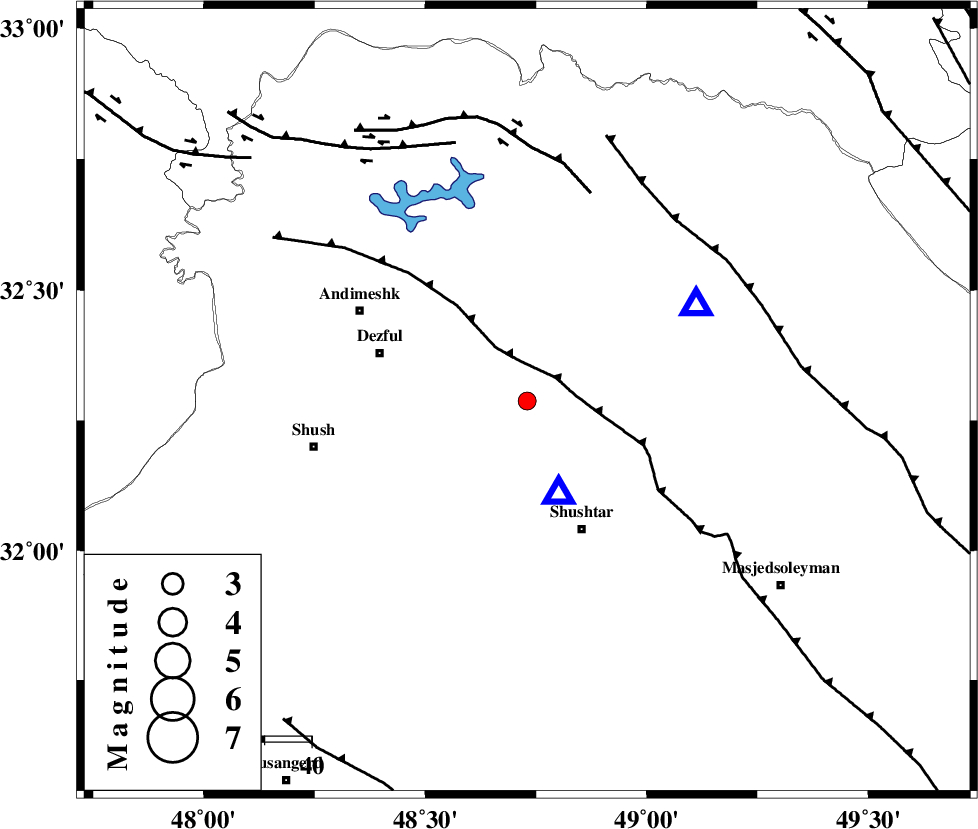

| Location | Lat:32.287 Lon: 48.73 |
| Region | Khoozestan Province, 30 km North-West of Shushtar |
Nearest Cities |
|
| 9 km North of Gatvand, Khoozestan Province | |
| 13 km South of Mahur berenji, Khoozestan Province | |
| 15 km North West of Samaleh, Khoozestan Province | |
| 26 km South West of Sardasht, Khoozestan Province | |
| 28 km East of Shamsabad, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 8 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 50 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110166 | IIEES | KHMZ | E | 54.6 | 0.43 | 2016-10-23 13:31:55 | 2016-10-24 05:23:00 | n |
| 110167 | IIEES | ASAO | N | 23 | 0.37 | 2016-10-23 13:32:21 | 2016-10-24 05:23:00 | n |
| 110168 | IIEES | SNGE | N | 11 | 0.5 | 2016-10-23 13:32:35 | 2016-10-24 05:23:00 | n |
| 110169 | IIEES | SNGE | E | 11.1 | 0.46 | 2016-10-23 13:32:37 | 2016-10-24 05:23:00 | n |
| 110170 | IIEES | GHVR | E | 18.8 | 0.54 | 2016-10-23 13:32:35 | 2016-10-24 05:23:00 | n |
| 110171 | IIEES | GHVR | N | 16.7 | 0.59 | 2016-10-23 13:32:39 | 2016-10-24 05:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-10-23 13:31:28 | 0.21 | y | 198 | 35 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-23 13:31:37 | 0.21 | y | 278 | 25 | |||
| IIEES | ASAO | N | Sg | E | 2016-10-23 13:32:13 | -0.17 | y | 278 | 25 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-23 13:31:44 | -0.17 | y | 337 | 338 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-23 13:31:45 | 0.18 | y | 338 | 43 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-23 13:31:50 | -0.3 | y | 387 | 80 | |||
