Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-10-24 18:36:00.9 |
| Date & Time (Local) | 1395/8/3 22:06:00.9 |

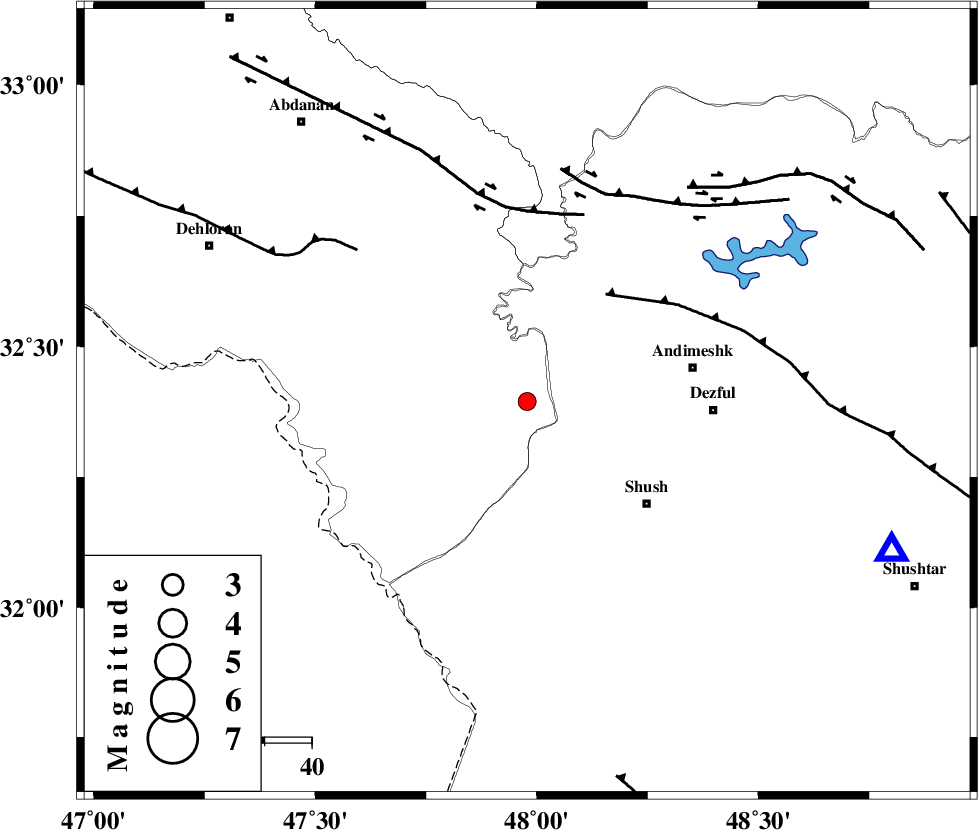

| Location | Lat:32.395 Lon: 47.978 |
| Region | Ilam Province, 39 km -West of Dezful |
Nearest Cities |
|
| 33 km North West of Shush, Khoozestan Province | |
| 36 km West of Andimeshk, Khoozestan Province | |
| 37 km North West of Amaleh teimur, Khoozestan Province | |
| 39 km North West of Dezful, Khoozestan Province | |
| 41 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 41 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 47 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110197 | IIEES | ASAO | E | 16.1 | 0.46 | 2016-10-24 18:37:32 | 2016-10-25 05:07:00 | n |
| 110198 | IIEES | SNGE | E | 15.1 | 0.65 | 2016-10-24 18:37:36 | 2016-10-25 05:07:00 | n |
| 110199 | IIEES | SNGE | N | 22.2 | 0.53 | 2016-10-24 18:37:37 | 2016-10-25 05:07:00 | n |
| 110200 | IIEES | ASAO | N | 21.8 | 0.69 | 2016-10-24 18:37:38 | 2016-10-25 05:07:00 | n |
| 110201 | IIEES | GHVR | N | 9.4 | 0.3 | 2016-10-24 18:37:55 | 2016-10-25 05:07:00 | n |
| 110202 | IIEES | GHVR | E | 12.3 | 0.53 | 2016-10-24 18:37:59 | 2016-10-25 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-24 18:36:38 | 0.52 | y | 238 | 51 | |||
| IIEES | KHMZ | N | Sg | E | 2016-10-24 18:37:08 | -0.07 | y | 238 | 51 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-24 18:36:46 | -0.02 | y | 305 | 38 | |||
| IIEES | ASAO | E | S | E | 2016-10-24 18:37:19 | -0.12 | y | 305 | 38 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-24 18:36:46 | -0.21 | y | 305 | 349 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-24 18:36:56 | 0.33 | y | 382 | 52 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-24 18:37:04 | -0.56 | y | 456 | 83 | |||
