Magnitude |
:3.6 |
| Date & Time (UTC) | 2016-10-26 05:12:21.7 |
| Date & Time (Local) | 1395/8/5 08:42:21.7 |

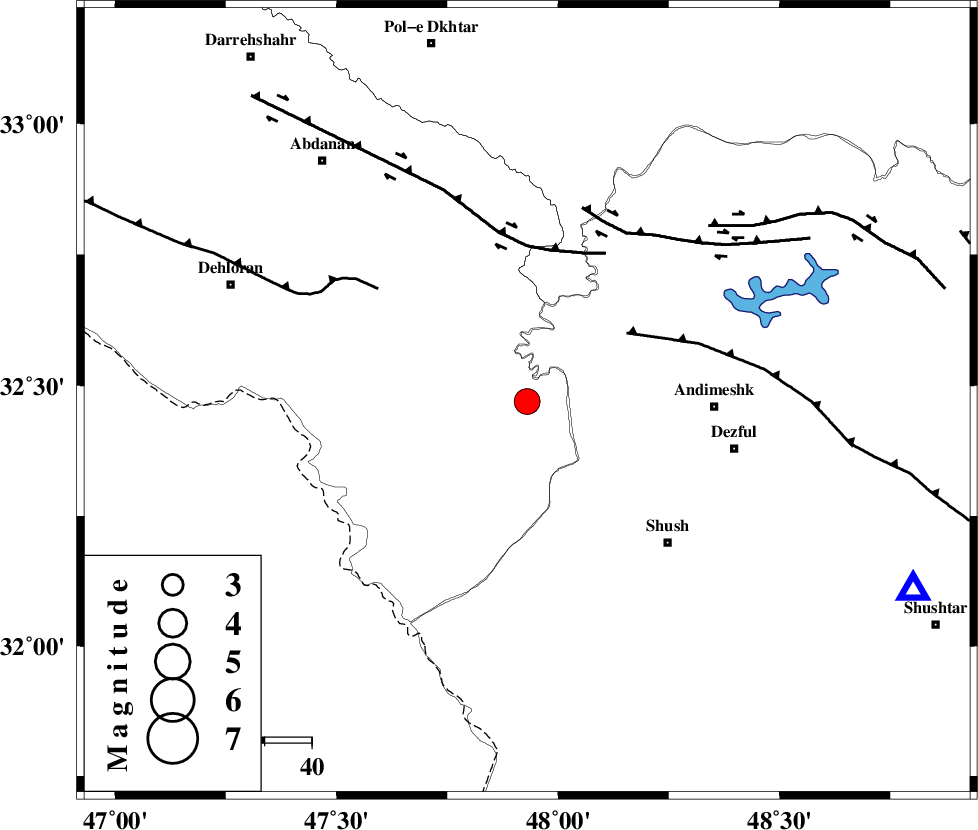

| Location | Lat:32.47 Lon: 47.93 |
| Region | Ilam Province, 40 km -West of Andimeshk |
Nearest Cities |
|
| 38 km South West of Hoseinieh, Khoozestan Province | |
| 40 km North West of Andimeshk, Khoozestan Province | |
| 42 km North West of Shush, Khoozestan Province | |
| 43 km South West of Bidruyeh, Khoozestan Province | |
| 45 km North West of Dezful, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 26 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 33 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 40 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >6 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110254 | IIEES | SNGE | E | 193.6 | 0.58 | 2016-10-26 05:13:57 | 2016-10-26 05:42:00 | n |
| 110255 | IIEES | SNGE | N | 225.8 | 0.63 | 2016-10-26 05:14:00 | 2016-10-26 05:42:00 | n |
| 110256 | IIEES | ASAO | E | 149.5 | 0.5 | 2016-10-26 05:13:54 | 2016-10-26 05:42:00 | n |
| 110257 | IIEES | ASAO | N | 172.5 | 0.76 | 2016-10-26 05:13:56 | 2016-10-26 05:42:00 | n |
| 110258 | IIEES | GHVR | N | 63.3 | 0.56 | 2016-10-26 05:14:17 | 2016-10-26 05:42:00 | n |
| 110259 | IIEES | GHVR | E | 82.7 | 0.43 | 2016-10-26 05:14:21 | 2016-10-26 05:42:00 | n |
| 110260 | IIEES | DAMV | N | 23.7 | 0.47 | 2016-10-26 05:14:58 | 2016-10-26 05:42:00 | n |
| 110261 | IIEES | DAMV | E | 23.9 | 0.52 | 2016-10-26 05:14:58 | 2016-10-26 05:42:00 | n |
| 110262 | IIEES | AHRM | E | 66.2 | 0.69 | 2016-10-26 05:14:26 | 2016-10-26 05:42:00 | n |
| 110263 | IIEES | AHRM | N | 55.5 | 0.58 | 2016-10-26 05:15:04 | 2016-10-26 05:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-26 05:12:59 | 0.21 | y | 236 | 53 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-26 05:13:05 | -0.27 | y | 296 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-26 05:13:07 | 0.13 | y | 302 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-26 05:13:17 | 0.9 | y | 380 | 53 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-26 05:13:26 | -0.56 | y | 459 | 84 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-10-26 05:13:28 | 0.19 | y | 471 | 8 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-26 05:13:29 | 0.17 | y | 482 | 37 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-26 05:13:32 | -0.63 | y | 512 | 46 | |||
| IIEES | AHRM | Z | Pn | E | 2016-10-26 05:13:33 | 0.28 | y | 514 | 140 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-26 05:13:47 | -0.05 | y | 627 | 89 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-26 05:14:12 | -0.95 | y | 841 | 60 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-26 05:14:16 | -0.36 | y | 868 | 79 | |||
