Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-10-27 20:08:25.7 |
| Date & Time (Local) | 1395/8/6 23:38:25.7 |

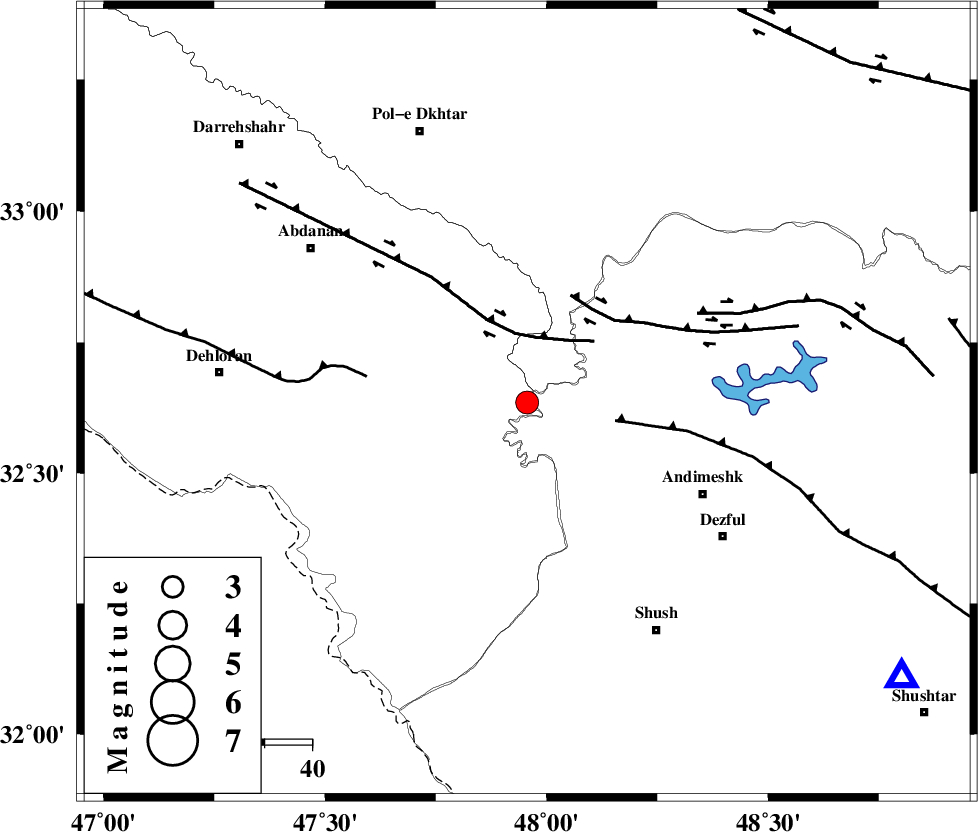

| Location | Lat:32.635 Lon: 47.956 |
| Region | Ilam Province, 42 km North-West of Andimeshk |
Nearest Cities |
|
| 28 km West of Hoseinieh, Khoozestan Province | |
| 30 km South West of Bidruyeh, Khoozestan Province | |
| 38 km South West of Sorkhakan, Khoozestan Province | |
| 42 km North West of Andimeshk, Khoozestan Province | |
| 47 km South East of Sarabbagh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 14 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 24 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110315 | IIEES | KHMZ | E | 82.8 | 0.44 | 2016-10-27 20:09:36 | 2016-10-29 07:52:00 | n |
| 110316 | IIEES | KHMZ | N | 106.5 | 0.49 | 2016-10-27 20:09:37 | 2016-10-29 07:52:00 | n |
| 110317 | IIEES | SNGE | E | 80.1 | 0.59 | 2016-10-27 20:09:52 | 2016-10-29 07:52:00 | n |
| 110318 | IIEES | SNGE | N | 97 | 0.41 | 2016-10-27 20:10:00 | 2016-10-29 07:52:00 | n |
| 110319 | IIEES | ASAO | E | 73.5 | 0.53 | 2016-10-27 20:09:55 | 2016-10-29 07:52:00 | n |
| 110320 | IIEES | ASAO | N | 92 | 0.61 | 2016-10-27 20:10:01 | 2016-10-29 07:52:00 | n |
| 110321 | IIEES | GHVR | E | 42.5 | 0.31 | 2016-10-27 20:10:17 | 2016-10-29 07:52:00 | n |
| 110322 | IIEES | GHVR | N | 42.2 | 0.46 | 2016-10-27 20:10:18 | 2016-10-29 07:52:00 | n |
| 110323 | IIEES | DAMV | N | 13.5 | 0.56 | 2016-10-27 20:10:55 | 2016-10-29 07:52:00 | n |
| 110324 | IIEES | DAMV | E | 12.8 | 0.28 | 2016-10-27 20:11:00 | 2016-10-29 07:52:00 | n |
| 110325 | IIEES | AHRM | E | 22.4 | 0.5 | 2016-10-27 20:11:12 | 2016-10-29 07:52:00 | n |
| 110326 | IIEES | AHRM | N | 26 | 0.5 | 2016-10-27 20:11:12 | 2016-10-29 07:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-27 20:09:01 | -0.18 | y | 224 | 56 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-27 20:09:08 | 0.11 | y | 278 | 348 | |||
| IIEES | SNGE | E | Sg | E | 2016-10-27 20:09:44 | -0.04 | y | 278 | 348 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-27 20:09:09 | 0.03 | y | 286 | 42 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-27 20:09:19 | 0.21 | y | 368 | 55 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-10-27 20:09:29 | -0.12 | y | 453 | 8 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-27 20:09:27 | -2.56 | n | 4 | 455 | 86 | ||
| IIEES | CHTH | Z | Pn | E | 2016-10-27 20:09:31 | 0.05 | y | 466 | 38 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-27 20:09:34 | -1.23 | n | 4 | 497 | 47 | ||
| IIEES | AHRM | Z | Pn | E | 2016-10-27 20:09:38 | -0.06 | y | 526 | 142 | |||
