Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-10-30 10:58:37.3 |
| Date & Time (Local) | 1395/8/9 14:28:37.3 |

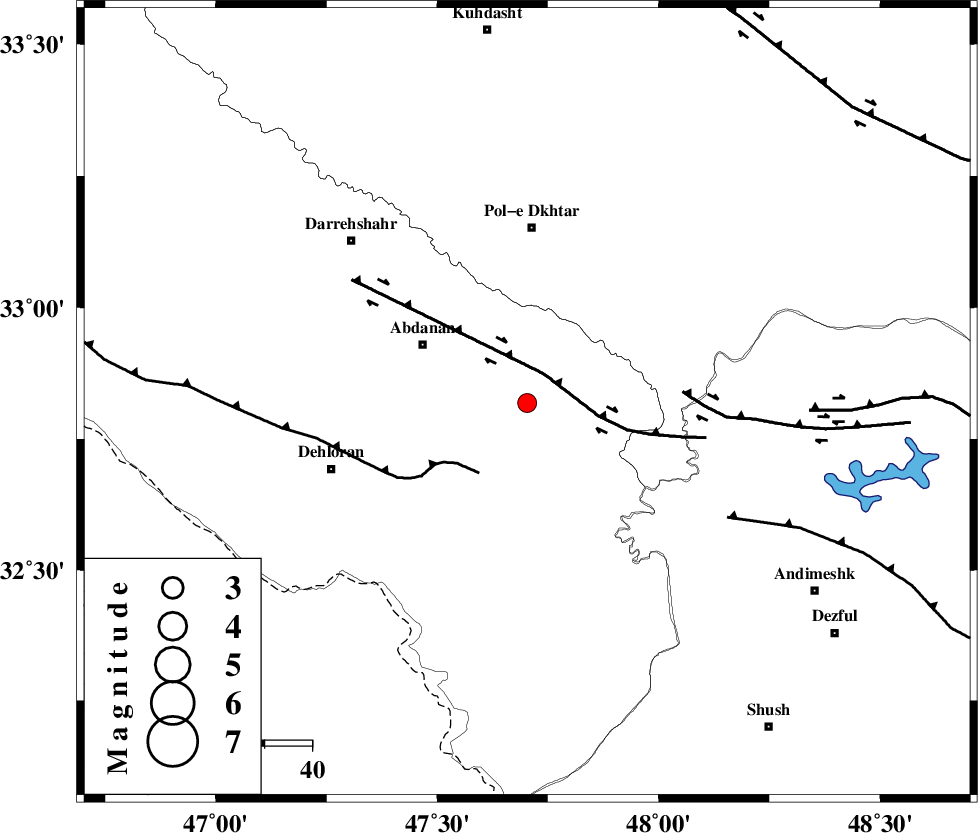

| Location | Lat:32.819 Lon: 47.703 |
| Region | Ilam Province, 37 km South of Pol-e dokhtar |
Nearest Cities |
|
| 16 km East of Sarabbagh, Ilam Province | |
| 25 km South East of Abdanan, Ilam Province | |
| 31 km South of Sarab hammam, Lorestan Province | |
| 37 km South of Pol-e dokhtar, Lorestan Province | |
| 44 km North East of Dehloran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 7 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 18 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 33 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >31.3 km |
| Error in Longitude | 18.8 km |
| Error in Depth | 44.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110351 | IIEES | KHMZ | E | 32.9 | 0.38 | 2016-10-30 10:59:49 | 2016-10-30 11:45:00 | n |
| 110352 | IIEES | KHMZ | N | 46.1 | 0.6 | 2016-10-30 10:59:50 | 2016-10-30 11:45:00 | n |
| 110353 | IIEES | SNGE | E | 34.9 | 0.57 | 2016-10-30 10:59:56 | 2016-10-30 11:45:00 | n |
| 110354 | IIEES | SNGE | N | 31.2 | 0.38 | 2016-10-30 11:00:00 | 2016-10-30 11:45:00 | n |
| 110355 | IIEES | GHVR | E | 16.4 | 0.48 | 2016-10-30 11:00:29 | 2016-10-30 11:45:00 | n |
| 110356 | IIEES | GHVR | N | 29.3 | 0.84 | 2016-10-30 11:00:32 | 2016-10-30 11:45:00 | n |
| 110357 | IIEES | NASN | E | 6.2 | 0.41 | 2016-10-30 11:00:58 | 2016-10-30 11:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-30 10:59:14 | -0.16 | y | 234 | 64 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-30 10:59:16 | 0 | y | 254 | 353 | |||
| IIEES | SNGE | E | Sg | E | 2016-10-30 10:59:49 | 0 | y | 254 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-30 10:59:21 | -0.04 | y | 288 | 48 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-30 10:59:32 | 0.23 | y | 377 | 60 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-30 10:59:42 | -2.28 | n | 4 | 478 | 89 | ||
