Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-10-31 08:06:49.7 |
| Date & Time (Local) | 1395/8/10 11:36:49.7 |
| Location | Lat:32.412 Lon: 56.431 |
| Region | Yazd Province, 132 km North-West of Ravar |
Nearest Cities |
|
| 71 km North East of Behabad, Yazd Province | |
| 82 km North East of Benestan, Yazd Province | |
| 85 km North East of Asfih, Yazd Province | |
| 96 km North East of Kushk, Yazd Province | |
| 100 km North West of Hoz-e qorban, Yazd Province | |
| Depth | 28 km |
| Agency | |

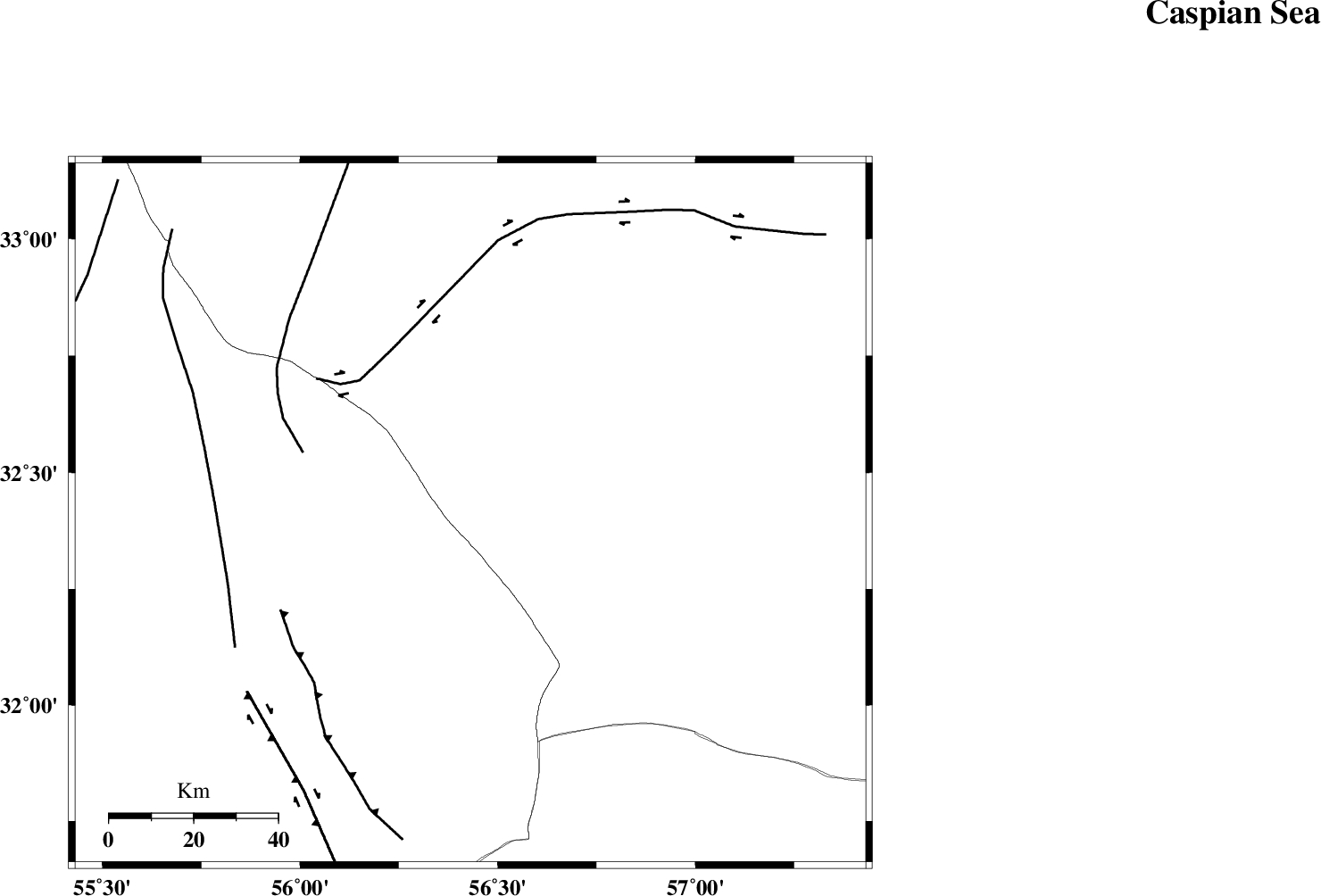

Faults within 150 km: |
|
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 41 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 42 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 51 km | |
| Number of Phases | 9 |
| RMS | 0.6 |
| Number of Stations | 7 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110383 | IIEES | YZKH | N | 62.8 | 0.16 | 2016-10-31 08:07:41 | 2016-10-31 08:45:00 | n |
| 110384 | IIEES | YZKH | E | 73.4 | 0.4 | 2016-10-31 08:07:41 | 2016-10-31 08:45:00 | n |
| 110385 | IIEES | BSRN | E | 20.8 | 0.22 | 2016-10-31 08:08:03 | 2016-10-31 08:45:00 | n |
| 110386 | IIEES | BSRN | N | 18.9 | 0.25 | 2016-10-31 08:08:04 | 2016-10-31 08:45:00 | n |
| 110387 | IIEES | KRBR | E | 77.1 | 0.39 | 2016-10-31 08:08:05 | 2016-10-31 08:45:00 | n |
| 110388 | IIEES | KRBR | N | 79.7 | 0.23 | 2016-10-31 08:08:06 | 2016-10-31 08:45:00 | n |
| 110389 | IIEES | NASN | N | 10.4 | 0.25 | 2016-10-31 08:08:28 | 2016-10-31 08:45:00 | n |
| 110390 | IIEES | SHRO | E | 9.5 | 0.53 | 2016-10-31 08:08:51 | 2016-10-31 08:45:00 | n |
| 110391 | IIEES | SHRO | N | 6.6 | 0.48 | 2016-10-31 08:08:55 | 2016-10-31 08:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2016-10-31 08:07:14 | 0.11 | y | 152 | 25 | |||
| IIEES | YZKH | Z | Pg | E | 2016-10-31 08:07:17 | -0.11 | y | 173 | 270 | |||
| IIEES | YZKH | N | Sg | E | 2016-10-31 08:07:38 | -0.15 | y | 173 | 270 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-31 08:07:27 | -0.74 | y | 259 | 100 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-31 08:07:30 | 0.31 | y | 271 | 173 | |||
| IIEES | KRBR | N | Sg | E | 2016-10-31 08:08:04 | 0.17 | y | 271 | 173 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-31 08:07:39 | 0.37 | y | 343 | 278 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-31 08:07:47 | 1 | y | 401 | 355 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-31 08:08:12 | -1.3 | y | 624 | 310 | |||
