Magnitude |
:3 |
| Date & Time (UTC) | 2016-11-04 11:38:09.8 |
| Date & Time (Local) | 1395/8/14 15:08:09.8 |

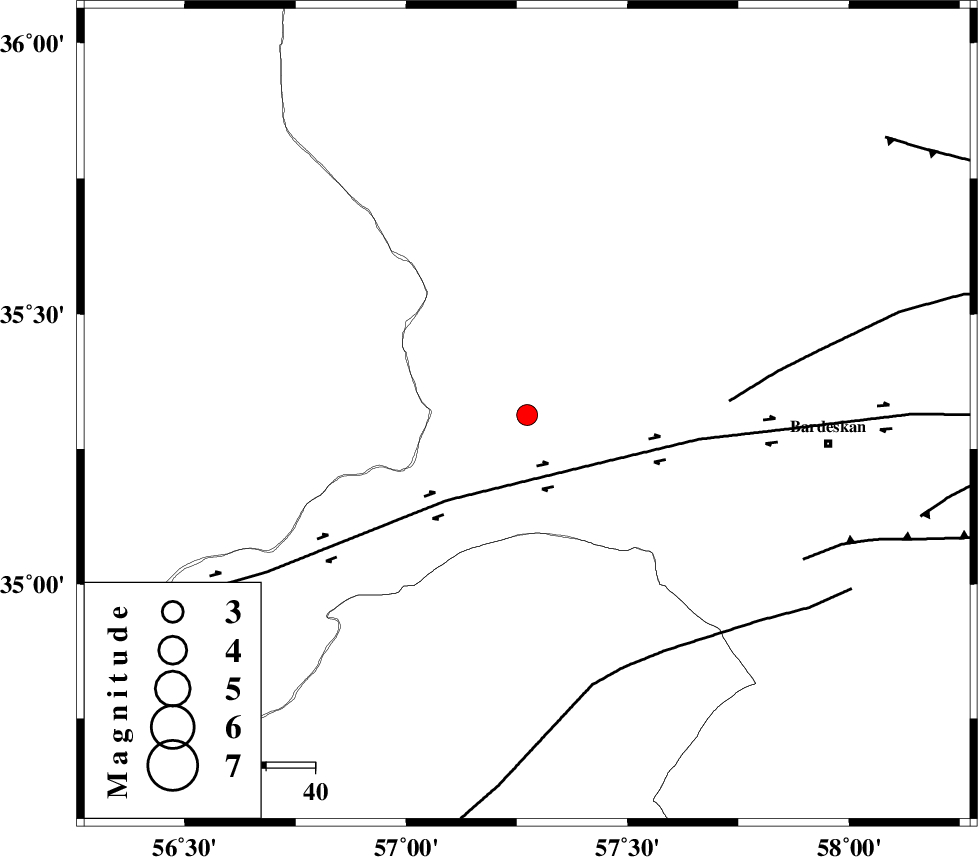

| Location | Lat:35.313 Lon: 57.273 |
| Region | Khorasan(center) Province, 62 km -West of Bardeskan |
Nearest Cities |
|
| 45 km North of Tappeh taq, Yazd Province | |
| 55 km South East of Zamanabad, Semnan Province | |
| 62 km South West of Bejdan, Khorasan(center) Province | |
| 62 km North West of Bardeskan, Khorasan(center) Province | |
| 62 km North West of Shahrabad, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 20 km | |
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 41 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 56 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 3 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110459 | IIEES | SHRO | E | 238.2 | 0.45 | 2016-11-04 11:38:56 | 2016-11-05 05:39:00 | n |
| 110460 | IIEES | SHRO | N | 274.9 | 0.23 | 2016-11-04 11:38:56 | 2016-11-05 05:39:00 | n |
| 110461 | IIEES | TABS | E | 98.7 | 0.55 | 2016-11-04 11:39:08 | 2016-11-05 05:39:00 | n |
| 110462 | IIEES | TABS | N | 203 | 0.74 | 2016-11-04 11:39:08 | 2016-11-05 05:39:00 | n |
| 110463 | IIEES | SHRT | N | 22.6 | 0.33 | 2016-11-04 11:39:52 | 2016-11-05 05:39:00 | n |
| 110464 | IIEES | SHRT | E | 25.8 | 0.45 | 2016-11-04 11:39:54 | 2016-11-05 05:39:00 | n |
| 110465 | IIEES | YZKH | E | 25.7 | 0.42 | 2016-11-04 11:40:04 | 2016-11-05 05:39:00 | n |
| 110466 | IIEES | YZKH | N | 26.7 | 0.49 | 2016-11-04 11:40:04 | 2016-11-05 05:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-11-04 11:38:31 | -1.39 | n | 4 | 138 | 304 | ||
| IIEES | SHRO | N | Sg | E | 2016-11-04 11:38:49 | -0.01 | y | 138 | 304 | |||
| IIEES | TABS | Z | Pg | E | 2016-11-04 11:38:40 | 0.09 | y | 185 | 184 | |||
| IIEES | TABS | E | Sg | E | 2016-11-04 11:39:02 | -0.15 | y | 185 | 184 | |||
| IIEES | MRVT | Z | Pn | E | 2016-11-04 11:38:52 | -0.1 | y | 281 | 338 | |||
| IIEES | SHRT | Z | Pn | E | 2016-11-04 11:38:58 | -0.04 | y | 333 | 123 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-04 11:39:08 | 0.32 | y | 408 | 218 | |||
| IIEES | BSRN | Z | Pn | E | 2016-11-04 11:39:08 | 0.02 | y | 409 | 155 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-04 11:39:19 | -0.09 | y | 497 | 237 | |||
