Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-11-06 23:06:41.7 |
| Date & Time (Local) | 1395/8/17 02:36:41.7 |

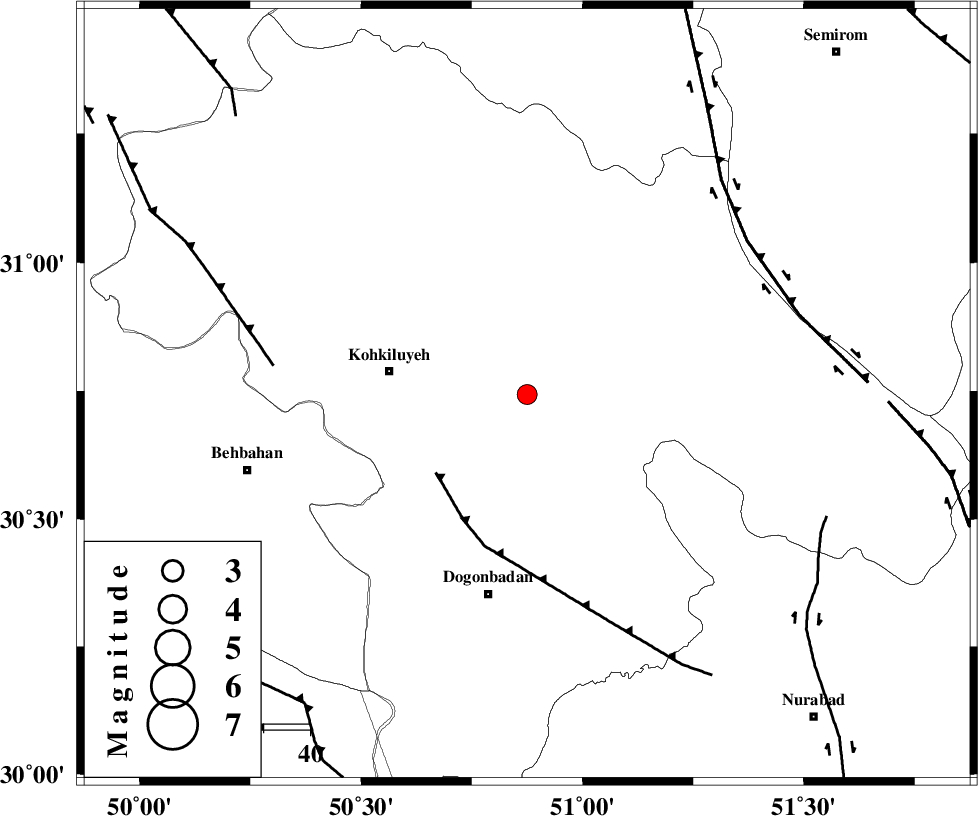

| Location | Lat:30.743 Lon: 50.875 |
| Region | Kohkiluieh va boyerahmad Province, 30 km -East of Dehdasht |
Nearest Cities |
|
| 21 km South East of Savari, Kohkiluieh va boyerahmad Province | |
| 30 km East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 34 km South West of Margun, Kohkiluieh va boyerahmad Province | |
| 36 km North West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 41 km West of Chitab, Kohkiluieh va boyerahmad Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 26 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 55 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 58 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110520 | IIEES | AHRM | N | 92.7 | 0.58 | 2016-11-06 23:07:45 | 2016-11-07 04:51:00 | n |
| 110521 | IIEES | AHRM | E | 46.7 | 0.44 | 2016-11-06 23:07:45 | 2016-11-07 04:51:00 | n |
| 110522 | IIEES | KHMZ | E | 9.9 | 0.34 | 2016-11-06 23:08:25 | 2016-11-07 04:51:00 | n |
| 110523 | IIEES | GHVR | E | 7.5 | 0.56 | 2016-11-06 23:08:53 | 2016-11-07 04:51:00 | n |
| 110524 | IIEES | ASAO | N | 9.4 | 0.6 | 2016-11-06 23:08:33 | 2016-11-07 04:51:00 | n |
| 110525 | IIEES | ILBA | N | 7.5 | 0.68 | 2016-11-06 23:09:00 | 2016-11-07 04:51:00 | n |
| 110526 | IIEES | ILBA | E | 4.5 | 0.68 | 2016-11-06 23:09:17 | 2016-11-07 04:51:00 | n |
| 110527 | IIEES | SNGE | E | 5.8 | 0.53 | 2016-11-06 23:09:10 | 2016-11-07 04:51:00 | n |
| 110528 | IIEES | SNGE | N | 3.6 | 0.46 | 2016-11-06 23:09:11 | 2016-11-07 04:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-11-06 23:07:15 | -0.06 | y | 212 | 169 | |||
| IIEES | AHRM | N | Sg | E | 2016-11-06 23:07:41 | 0.01 | y | 212 | 169 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-06 23:07:25 | 0.17 | y | 292 | 38 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-06 23:07:32 | 0.34 | y | 343 | 346 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-06 23:07:38 | -0.02 | y | 397 | 62 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-06 23:07:40 | -0.05 | y | 416 | 5 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-06 23:07:42 | -0.13 | y | 429 | 350 | |||
| IIEES | ILBA | Z | Pn | E | 2016-11-06 23:07:56 | -0.15 | y | 544 | 307 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-06 23:07:57 | -0.43 | y | 552 | 10 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-06 23:08:01 | 0.16 | y | 584 | 327 | |||
