Magnitude |
:3 |
| Date & Time (UTC) | 2016-11-07 06:36:21.4 |
| Date & Time (Local) | 1395/8/17 10:06:21.4 |

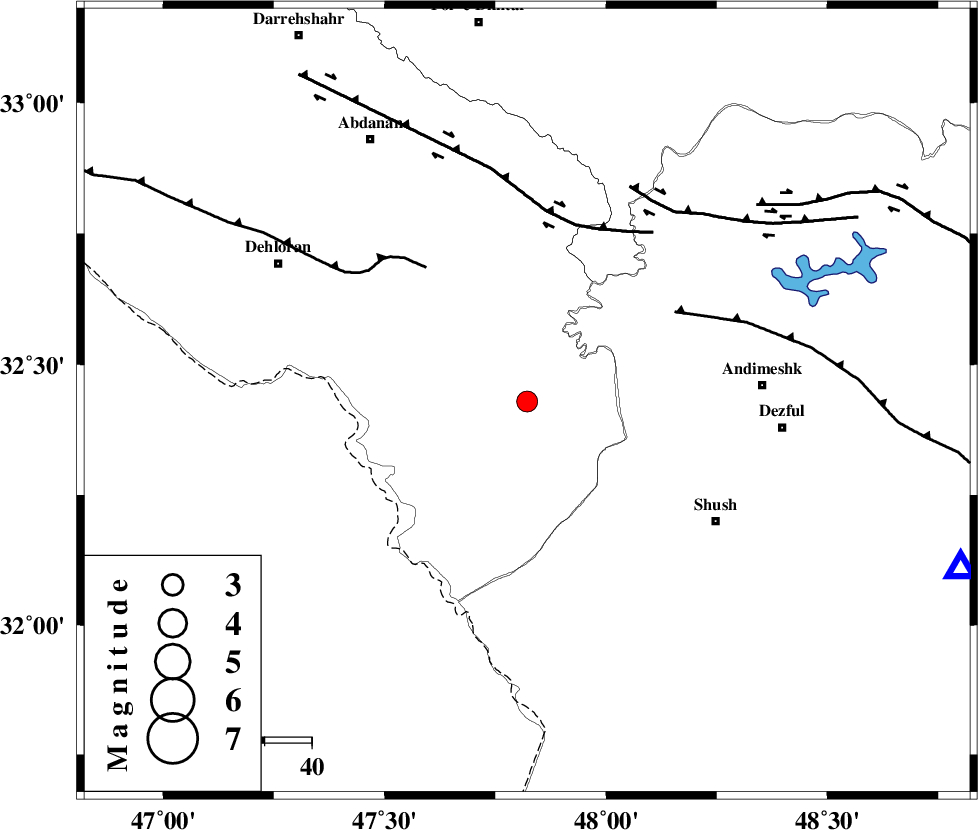

| Location | Lat:32.429 Lon: 47.822 |
| Region | Ilam Province, 50 km -West of Andimeshk |
Nearest Cities |
|
| 45 km South East of Musian, Ilam Province | |
| 47 km North West of Shush, Khoozestan Province | |
| 49 km South West of Hoseinieh, Khoozestan Province | |
| 50 km West of Andimeshk, Khoozestan Province | |
| 51 km North West of Amaleh teimur, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 36 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 37 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >8.2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110529 | IIEES | ILBA | N | 61.3 | 0.65 | 2016-11-07 06:37:30 | 2016-11-07 07:16:00 | n |
| 110530 | IIEES | KHMZ | E | 48.2 | 0.32 | 2016-11-07 06:37:35 | 2016-11-07 07:16:00 | n |
| 110531 | IIEES | KHMZ | N | 61.4 | 0.62 | 2016-11-07 06:37:36 | 2016-11-07 07:16:00 | n |
| 110532 | IIEES | SNGE | E | 52.9 | 0.45 | 2016-11-07 06:37:52 | 2016-11-07 07:16:00 | n |
| 110533 | IIEES | SNGE | N | 43.3 | 0.71 | 2016-11-07 06:38:01 | 2016-11-07 07:16:00 | n |
| 110534 | IIEES | ASAO | N | 51 | 0.48 | 2016-11-07 06:37:53 | 2016-11-07 07:16:00 | n |
| 110535 | IIEES | ASAO | E | 42.5 | 0.54 | 2016-11-07 06:37:54 | 2016-11-07 07:16:00 | n |
| 110536 | IIEES | GHVR | E | 33.5 | 0.4 | 2016-11-07 06:38:16 | 2016-11-07 07:16:00 | n |
| 110537 | IIEES | GHVR | N | 30 | 0.4 | 2016-11-07 06:38:17 | 2016-11-07 07:16:00 | n |
| 110538 | IIEES | DAMV | N | 8.2 | 0.54 | 2016-11-07 06:39:00 | 2016-11-07 07:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2016-11-07 06:36:54 | -0.06 | y | 201 | 312 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-07 06:37:00 | 0.31 | y | 247 | 53 | |||
| IIEES | KHMZ | N | Sg | E | 2016-11-07 06:37:31 | -0.05 | y | 247 | 53 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-07 06:37:08 | 2.11 | n | 4 | 299 | 352 | ||
| IIEES | ASAO | Z | Pn | E | 2016-11-07 06:37:08 | 0.05 | y | 312 | 40 | |||
| IIEES | ASAO | N | Sg | E | 2016-11-07 06:37:49 | -0.04 | y | 312 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-07 06:37:18 | 0.45 | y | 391 | 54 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-07 06:37:27 | -0.39 | y | 470 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-07 06:37:30 | -0.2 | y | 492 | 37 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-07 06:37:33 | -0.25 | y | 522 | 46 | |||
