Magnitude |
:3.8 |
| Date & Time (UTC) | 2016-11-11 14:35:36.0 |
| Date & Time (Local) | 1395/8/21 18:05:36.0 |

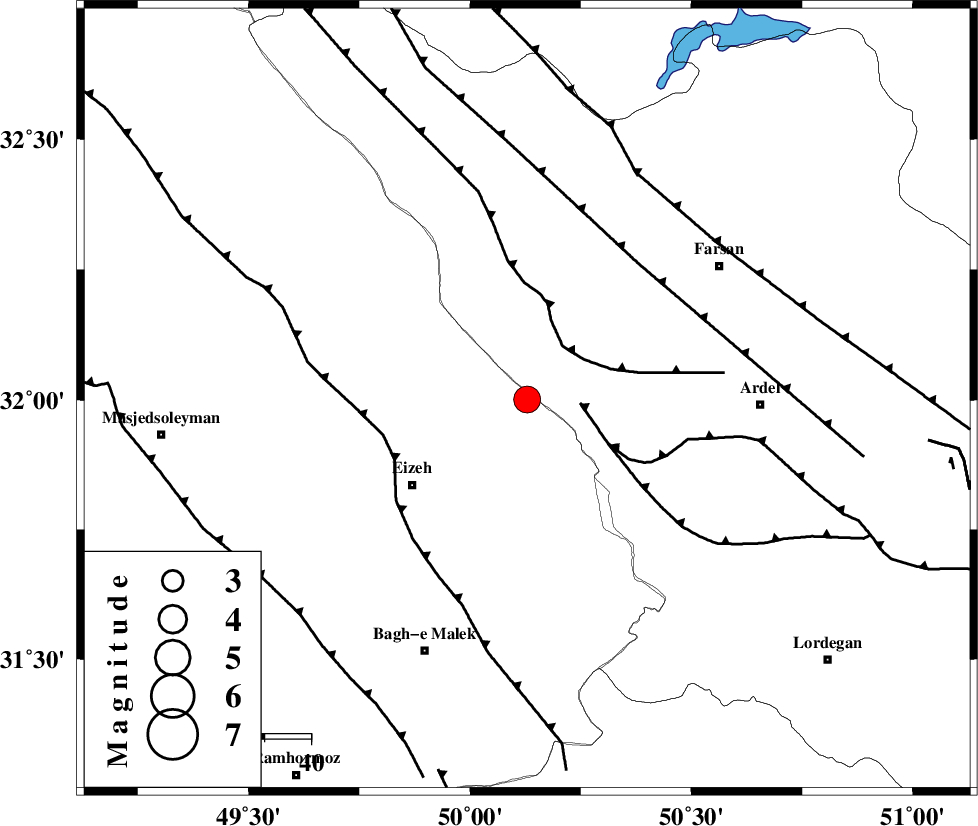

| Location | Lat:32.001 Lon: 50.129 |
| Region | Khoozestan Province, 31 km North-East of Izeh |
Nearest Cities |
|
| 29 km North East of Torshak, Khoozestan Province | |
| 31 km North East of Izeh, Khoozestan Province | |
| 31 km North West of Dehdez, Khoozestan Province | |
| 34 km North East of Rasvand, Khoozestan Province | |
| 40 km West of Rostamabad, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 11 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 14 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 20 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110586 | IIEES | KHMZ | E | 754.4 | 0.57 | 2016-11-11 14:36:37 | 2016-11-12 09:08:00 | n |
| 110587 | IIEES | GHVR | E | 375 | 0.59 | 2016-11-11 14:37:08 | 2016-11-12 09:08:00 | n |
| 110588 | IIEES | GHVR | N | 496.6 | 0.74 | 2016-11-11 14:37:11 | 2016-11-12 09:08:00 | n |
| 110589 | IIEES | AHRM | N | 135 | 0.58 | 2016-11-11 14:37:35 | 2016-11-12 09:08:00 | n |
| 110590 | IIEES | ILBA | E | 119.3 | 0.53 | 2016-11-11 14:37:44 | 2016-11-12 09:08:00 | n |
| 110591 | IIEES | ILBA | N | 133.9 | 0.82 | 2016-11-11 14:37:47 | 2016-11-12 09:08:00 | n |
| 110592 | IIEES | YZKH | E | 100.3 | 0.68 | 2016-11-11 14:37:50 | 2016-11-12 09:08:00 | n |
| 110593 | IIEES | YZKH | N | 83 | 0.5 | 2016-11-11 14:37:50 | 2016-11-12 09:08:00 | n |
| 110594 | IIEES | SNGE | N | 93.8 | 0.67 | 2016-11-11 14:37:50 | 2016-11-12 09:08:00 | n |
| 110595 | IIEES | SNGE | E | 78.4 | 0.6 | 2016-11-11 14:37:57 | 2016-11-12 09:08:00 | n |
| 110596 | IIEES | DAMV | E | 87.5 | 0.69 | 2016-11-11 14:37:48 | 2016-11-12 09:08:00 | n |
| 110597 | IIEES | DAMV | N | 70.3 | 0.39 | 2016-11-11 14:37:59 | 2016-11-12 09:08:00 | n |
| 110598 | IIEES | GIDE | N | 50.3 | 0.53 | 2016-11-11 14:38:00 | 2016-11-12 09:08:00 | n |
| 110599 | IIEES | GIDE | E | 47.6 | 0.42 | 2016-11-11 14:38:23 | 2016-11-12 09:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-11-11 14:36:08 | 0.39 | y | 193 | 355 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-11 14:36:17 | -0.01 | y | 267 | 70 | |||
| IIEES | NASN | N | Sg | E | 2016-11-11 14:36:51 | -0.48 | y | 267 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-11 14:36:20 | 0.38 | y | 294 | 20 | |||
| IIEES | AHRM | Z | Pn | E | 2016-11-11 14:36:29 | 0.09 | y | 365 | 162 | |||
| IIEES | ILBA | Z | Pn | E | 2016-11-11 14:36:32 | -1.77 | n | 4 | 409 | 297 | ||
| IIEES | YZKH | Z | Pn | E | 2016-11-11 14:36:36 | 0.51 | y | 423 | 83 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-11 14:36:36 | -1 | y | 429 | 324 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-11 14:36:38 | 0.13 | y | 437 | 22 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-11 14:36:38 | -0.13 | y | 443 | 12 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-11 14:36:49 | -0.33 | y | 535 | 346 | |||
| IIEES | GIDE | Z | Pn | E | 2016-11-11 14:36:52 | 0.39 | y | 546 | 358 | |||
| IIEES | KRBR | Z | Pn | E | 2016-11-11 14:37:06 | -0.39 | y | 672 | 108 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-11 14:37:08 | 0.08 | y | 679 | 73 | |||
| IIEES | SHRO | Z | Pn | E | 2016-11-11 14:37:10 | -0.06 | y | 702 | 49 | |||
| IIEES | MRVT | Z | Pn | E | 2016-11-11 14:37:27 | 0.08 | y | 831 | 39 | |||
| IIEES | BSRN | Z | Pn | E | 2016-11-11 14:37:29 | -0.33 | y | 850 | 88 | |||
| IIEES | SHRT | Z | Pn | E | 2016-11-11 14:37:45 | 1.06 | y | 969 | 76 | |||
