Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-11-07 06:39:36.6 |
| Date & Time (Local) | 1395/8/17 10:09:36.6 |

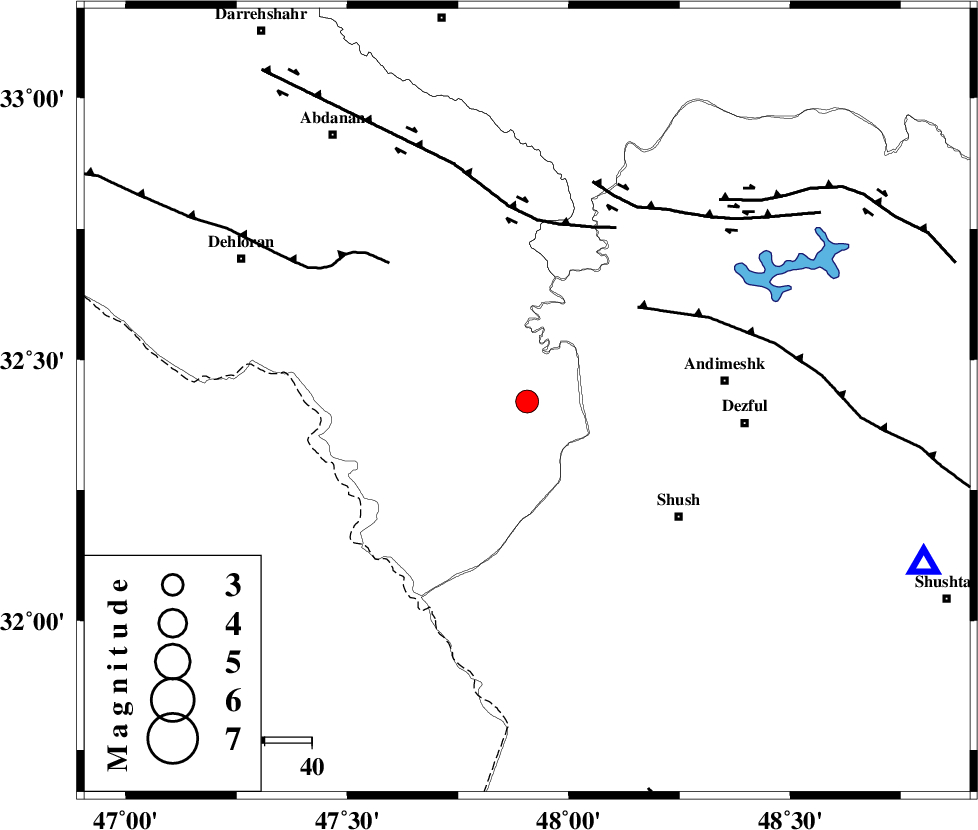

| Location | Lat:32.42 Lon: 47.906 |
| Region | Ilam Province, 42 km -West of Andimeshk |
Nearest Cities |
|
| 40 km North West of Shush, Khoozestan Province | |
| 42 km West of Andimeshk, Khoozestan Province | |
| 43 km South West of Hoseinieh, Khoozestan Province | |
| 44 km North West of Amaleh teimur, Khoozestan Province | |
| 46 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 31 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 38 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 42 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110667 | IIEES | KHMZ | N | 123.5 | 0.36 | 2016-11-07 06:40:51 | 2016-11-12 03:16:00 | n |
| 110668 | IIEES | SNGE | N | 56 | 0.56 | 2016-11-07 06:41:07 | 2016-11-12 03:16:00 | n |
| 110669 | IIEES | ASAO | E | 71.1 | 0.58 | 2016-11-07 06:41:04 | 2016-11-12 03:16:00 | n |
| 110670 | IIEES | ASAO | N | 124.2 | 0.71 | 2016-11-07 06:41:12 | 2016-11-12 03:16:00 | n |
| 110671 | IIEES | GHVR | E | 47.7 | 0.48 | 2016-11-07 06:41:33 | 2016-11-12 03:16:00 | n |
| 110672 | IIEES | GHVR | N | 39.6 | 0.27 | 2016-11-07 06:41:43 | 2016-11-12 03:16:00 | n |
| 110673 | IIEES | DAMV | E | 11.7 | 0.39 | 2016-11-07 06:42:13 | 2016-11-12 03:16:00 | n |
| 110674 | IIEES | DAMV | N | 8.7 | 0.63 | 2016-11-07 06:42:15 | 2016-11-12 03:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pn | E | 2016-11-07 06:40:10 | -0.04 | y | 207 | 311 | |||
| IIEES | ILBA | N | Sg | E | 2016-11-07 06:40:35 | -0.07 | y | 207 | 311 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-07 06:40:16 | 2.04 | n | 4 | 242 | 52 | ||
| IIEES | SNGE | Z | Pn | E | 2016-11-07 06:40:22 | 0.2 | y | 301 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-07 06:40:23 | 0.33 | y | 307 | 39 | |||
| IIEES | ASAO | E | Sg | E | 2016-11-07 06:41:03 | -0.12 | y | 307 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-07 06:40:32 | 0.52 | y | 385 | 53 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-07 06:40:41 | -0.04 | y | 462 | 83 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-07 06:40:43 | -0.16 | y | 477 | 8 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-07 06:40:45 | -0.1 | y | 488 | 37 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-07 06:40:48 | -0.4 | y | 517 | 45 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-07 06:41:02 | -0.43 | y | 629 | 89 | |||
