Magnitude |
:3.7 |
| Date & Time (UTC) | 2016-11-15 01:21:13.6 |
| Date & Time (Local) | 1395/8/25 04:51:13.6 |

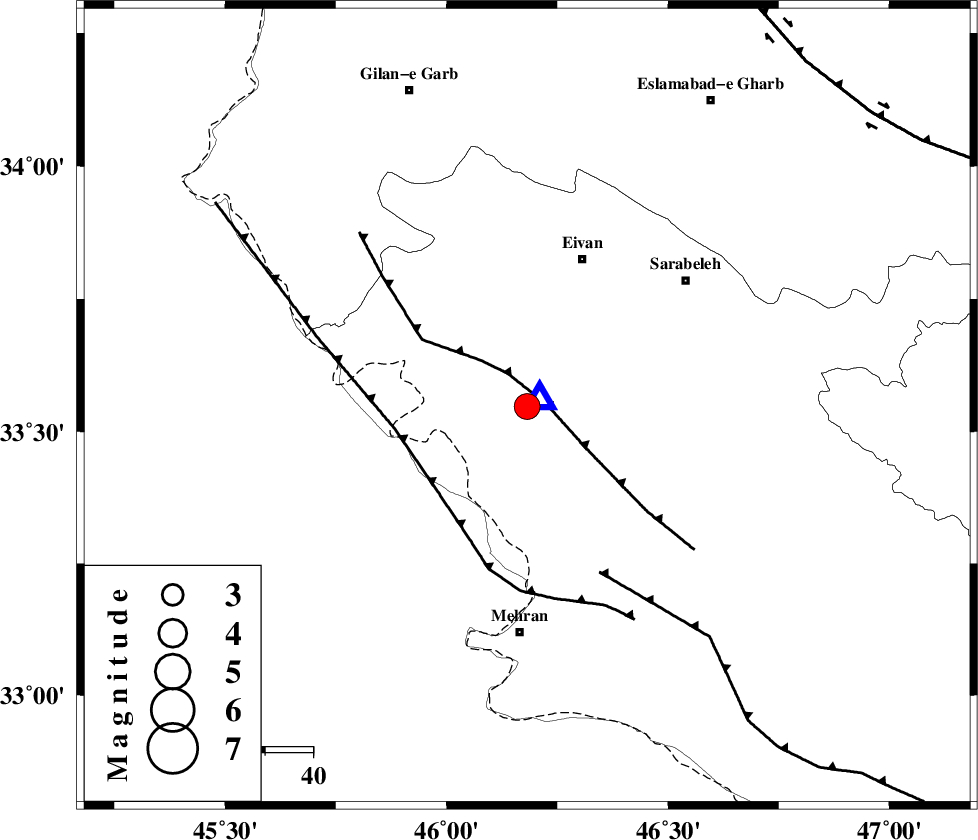

| Location | Lat:33.547 Lon: 46.182 |
| Region | Ilam Province, 25 km -West of Ilam |
Nearest Cities |
|
| 8 km North of Salehabad, Ilam Province | |
| 18 km South of Chavar, Ilam Province | |
| 25 km West of Ilam, Ilam Province | |
| 29 km North West of Mehr, Ilam Province | |
| 33 km South West of Eyvan, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 4 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 28 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 38 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >3 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110711 | IIEES | SNGE | N | 673.4 | 0.59 | 2016-11-15 01:22:19 | 2016-11-15 09:45:00 | n |
| 110712 | IIEES | SNGE | E | 479.3 | 0.56 | 2016-11-15 01:22:23 | 2016-11-15 09:45:00 | n |
| 110713 | IIEES | KHMZ | E | 160.1 | 0.6 | 2016-11-15 01:22:58 | 2016-11-15 09:45:00 | n |
| 110714 | IIEES | KHMZ | N | 114 | 0.4 | 2016-11-15 01:23:05 | 2016-11-15 09:45:00 | n |
| 110715 | IIEES | ASAO | N | 137.7 | 0.77 | 2016-11-15 01:23:19 | 2016-11-15 09:45:00 | n |
| 110716 | IIEES | ASAO | E | 98.3 | 0.55 | 2016-11-15 01:23:29 | 2016-11-15 09:45:00 | n |
| 110717 | IIEES | GHVR | E | 122.8 | 0.65 | 2016-11-15 01:23:41 | 2016-11-15 09:45:00 | n |
| 110718 | IIEES | GHVR | N | 77.3 | 0.74 | 2016-11-15 01:23:48 | 2016-11-15 09:45:00 | n |
| 110719 | IIEES | GIDE | N | 41.2 | 0.71 | 2016-11-15 01:23:50 | 2016-11-15 09:45:00 | n |
| 110720 | IIEES | GIDE | E | 32.3 | 0.71 | 2016-11-15 01:23:56 | 2016-11-15 09:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2016-11-15 01:21:16 | -0.02 | y | 8.89 | 15 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-15 01:21:47 | 0.04 | y | 202 | 32 | |||
| IIEES | SNGE | N | Sg | E | 2016-11-15 01:22:13 | 0.02 | y | 202 | 32 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-15 01:22:05 | 0.03 | y | 352 | 85 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-15 01:22:08 | 0.36 | y | 372 | 72 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-15 01:22:13 | -0.1 | y | 415 | 33 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-15 01:22:21 | 0.13 | y | 479 | 76 | |||
| IIEES | GIDE | Z | Pn | E | 2016-11-15 01:22:25 | 0.3 | y | 505 | 41 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-15 01:22:26 | -0.53 | y | 523 | 59 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-15 01:22:38 | -1.56 | n | 4 | 623 | 96 | ||
| IIEES | AHRM | Z | Pn | E | 2016-11-15 01:22:50 | 0.21 | y | 712 | 135 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-15 01:22:58 | -2.32 | n | 4 | 796 | 97 | ||
| IIEES | SHRO | Z | Pn | E | 2016-11-15 01:23:18 | -0.12 | y | 940 | 70 | |||
| IIEES | MRVT | Z | Pn | E | 2016-11-15 01:23:26 | -0.64 | y | 1006 | 60 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-15 01:23:27 | -0.2 | y | 1015 | 86 | |||
| IIEES | KRBR | Z | Pn | E | 2016-11-15 01:23:34 | -0.86 | y | 1077 | 109 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-11-15 01:24:21 | -0.54 | y | 1451 | 104 | |||
