Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-11-17 20:15:51.9 |
| Date & Time (Local) | 1395/8/27 23:45:51.9 |

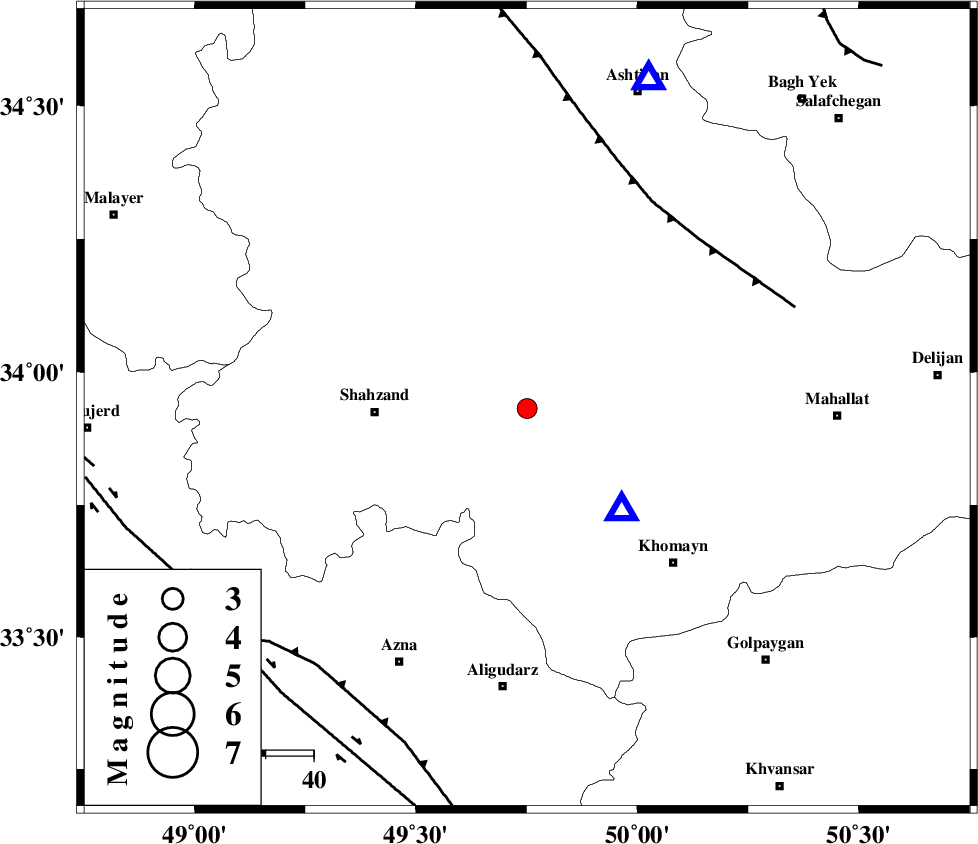

| Location | Lat:33.931 Lon: 49.751 |
| Region | Markazi Province, 18 km South of Arak |
Nearest Cities |
|
| 4 km North of Qasemabad, Markazi Province | |
| 17 km West of Amanabad, Markazi Province | |
| 18 km South of Arak, Markazi Province | |
| 19 km North East of Hafteh, Markazi Province | |
| 21 km South East of Sanjan, Markazi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 50 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 69 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 78 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 7 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110811 | IIEES | KHMZ | N | 1086.5 | 0.21 | 2016-11-17 20:16:03 | 2016-11-19 09:35:00 | n |
| 110812 | IIEES | KHMZ | E | 3345.9 | 0.4 | 2016-11-17 20:16:03 | 2016-11-19 09:35:00 | n |
| 110813 | IIEES | ASAO | N | 269.7 | 0.36 | 2016-11-17 20:16:16 | 2016-11-19 09:35:00 | n |
| 110814 | IIEES | ASAO | E | 449.8 | 0.44 | 2016-11-17 20:16:16 | 2016-11-19 09:35:00 | n |
| 110815 | IIEES | GHVR | N | 108.4 | 0.22 | 2016-11-17 20:16:37 | 2016-11-19 09:35:00 | n |
| 110816 | IIEES | GHVR | E | 118.2 | 0.32 | 2016-11-17 20:16:37 | 2016-11-19 09:35:00 | n |
| 110817 | IIEES | SNGE | E | 57 | 0.14 | 2016-11-17 20:17:04 | 2016-11-19 09:35:00 | n |
| 110818 | IIEES | SNGE | N | 82.5 | 0.42 | 2016-11-17 20:17:05 | 2016-11-19 09:35:00 | n |
| 110819 | IIEES | NASN | N | 14.9 | 0.52 | 2016-11-17 20:17:23 | 2016-11-19 09:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-11-17 20:15:57 | 0.11 | y | 28.9 | 137 | |||
| IIEES | KHMZ | N | Sg | E | 2016-11-17 20:16:02 | -0.02 | y | 28.9 | 137 | |||
| IIEES | ASAO | Z | Pg | E | 2016-11-17 20:16:03 | -0.81 | y | 72.9 | 20 | |||
| IIEES | GHVR | Z | Pg | E | 2016-11-17 20:16:16 | -0.15 | y | 151 | 66 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-17 20:16:32 | 0.88 | y | 253 | 29 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-17 20:16:32 | 0.58 | y | 256 | 301 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-17 20:16:38 | -0.03 | y | 311 | 113 | |||
| IIEES | ILBA | Z | Pn | E | 2016-11-17 20:16:39 | -0.63 | y | 330 | 265 | |||
