Magnitude |
:3 |
| Date & Time (UTC) | 2016-11-22 00:43:39.6 |
| Date & Time (Local) | 1395/9/2 04:13:39.6 |

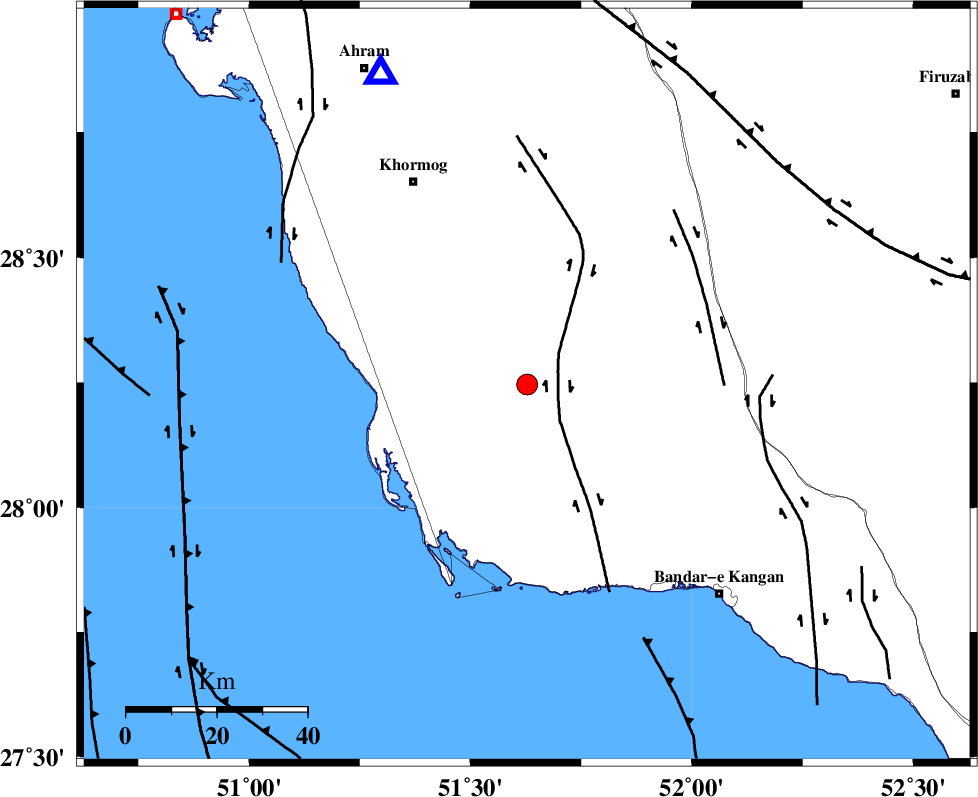

| Location | Lat:28.246 Lon: 51.628 |
| Region | Bushehr Province, 52 km South-East of Khormog |
Nearest Cities |
|
| 14 km North East of Abkesh, Bushehr Province | |
| 15 km East of Kaki, Bushehr Province | |
| 21 km South West of Shanbeh, Bushehr Province | |
| 21 km South East of Baduleh, Bushehr Province | |
| 23 km North West of Abdan, Bushehr Province | |
| Depth | 26 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 4 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 13 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 26 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >9 km |
| Error in Longitude | 8.8 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110925 | IIEES | AHRM | E | 635.4 | 0.42 | 2016-11-22 00:44:15 | 2016-11-22 08:55:00 | n |
| 110926 | IIEES | AHRM | N | 665.6 | 0.35 | 2016-11-22 00:44:15 | 2016-11-22 08:55:00 | n |
| 110927 | IIEES | KRBR | N | 7.4 | 0.55 | 2016-11-22 00:46:08 | 2016-11-22 08:55:00 | n |
| 110928 | IIEES | KRBR | E | 9.9 | 0.44 | 2016-11-22 00:46:31 | 2016-11-22 08:55:00 | n |
| 110929 | IIEES | KHMZ | E | 3.5 | 0.4 | 2016-11-22 00:46:26 | 2016-11-22 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-11-22 00:43:52 | -0.07 | y | 75.8 | 335 | |||
| IIEES | AHRM | N | Sg | E | 2016-11-22 00:44:02 | 0.06 | y | 75.8 | 335 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-22 00:44:50 | -0.28 | y | 517 | 12 | |||
| IIEES | KRBR | Z | Pn | E | 2016-11-22 00:44:53 | 0.14 | y | 535 | 68 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-22 00:45:04 | -0.09 | y | 629 | 346 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-22 00:45:15 | 0.36 | y | 715 | 348 | |||
