Magnitude |
:3.6 |
| Date & Time (UTC) | 2016-11-22 16:55:33.9 |
| Date & Time (Local) | 1395/9/2 20:25:33.9 |

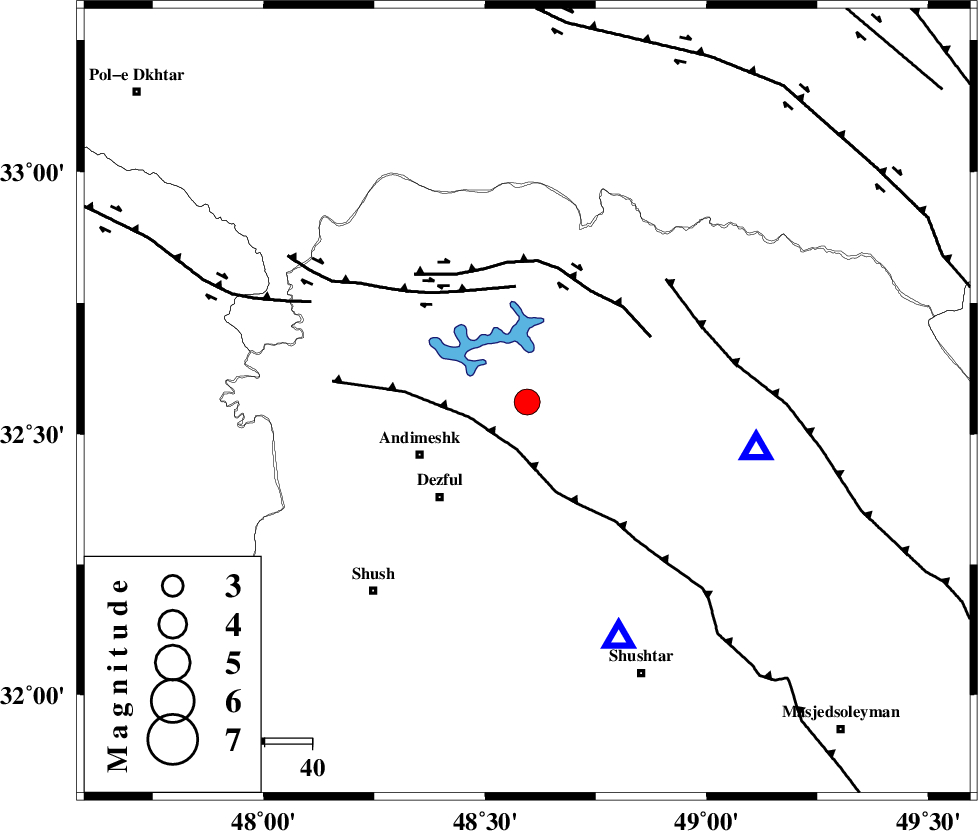

| Location | Lat:32.561 Lon: 48.595 |
| Region | Khoozestan Province, 25 km North-East of Andimeshk |
Nearest Cities |
|
| 20 km North of Mahur berenji, Khoozestan Province | |
| 24 km North West of Sardasht, Khoozestan Province | |
| 25 km North East of Andimeshk, Khoozestan Province | |
| 27 km North East of Dezful, Khoozestan Province | |
| 33 km South West of Shuy, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 27 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110935 | IIEES | KHMZ | E | 374.3 | 0.66 | 2016-11-22 16:56:30 | 2016-11-23 09:00:00 | n |
| 110936 | IIEES | ASAO | N | 248.1 | 0.46 | 2016-11-22 16:56:55 | 2016-11-23 09:00:00 | n |
| 110937 | IIEES | ASAO | E | 195.8 | 0.55 | 2016-11-22 16:57:00 | 2016-11-23 09:00:00 | n |
| 110938 | IIEES | GHVR | E | 223.3 | 0.65 | 2016-11-22 16:57:15 | 2016-11-23 09:00:00 | n |
| 110939 | IIEES | GHVR | N | 243.7 | 0.79 | 2016-11-22 16:57:23 | 2016-11-23 09:00:00 | n |
| 110940 | IIEES | NASN | N | 63.4 | 0.54 | 2016-11-22 16:57:31 | 2016-11-23 09:00:00 | n |
| 110941 | IIEES | NASN | E | 73.5 | 0.38 | 2016-11-22 16:57:32 | 2016-11-23 09:00:00 | n |
| 110942 | IIEES | DAMV | N | 48.7 | 0.59 | 2016-11-22 16:57:55 | 2016-11-23 09:00:00 | n |
| 110943 | IIEES | DAMV | E | 49.4 | 0.59 | 2016-11-22 16:57:57 | 2016-11-23 09:00:00 | n |
| 110944 | IIEES | AHRM | N | 79 | 0.48 | 2016-11-22 16:57:34 | 2016-11-23 09:00:00 | n |
| 110945 | IIEES | AHRM | E | 65.7 | 0.32 | 2016-11-22 16:57:38 | 2016-11-23 09:00:00 | n |
| 110946 | IIEES | YZKH | E | 22.6 | 0.47 | 2016-11-22 16:58:19 | 2016-11-23 09:00:00 | n |
| 110947 | IIEES | YZKH | N | 23 | 0.47 | 2016-11-22 16:58:23 | 2016-11-23 09:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-11-22 16:56:04 | -0.08 | y | 183 | 44 | |||
| IIEES | ILBA | Z | Pn | E | 2016-11-22 16:56:12 | -0.54 | y | 252 | 299 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-22 16:56:14 | 0.31 | y | 257 | 31 | |||
| IIEES | ASAO | E | Sg | E | 2016-11-22 16:56:46 | -0.52 | y | 257 | 31 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-22 16:56:19 | 0.48 | y | 304 | 338 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-22 16:56:22 | 0.76 | y | 325 | 48 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-22 16:56:31 | 0.14 | y | 396 | 85 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-22 16:56:36 | -0.09 | y | 438 | 31 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-22 16:56:38 | 0 | y | 456 | 1 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-22 16:56:39 | -0.15 | y | 461 | 42 | |||
| IIEES | AHRM | Z | Pn | E | 2016-11-22 16:56:41 | -0.25 | y | 485 | 147 | |||
| IIEES | GIDE | Z | Pn | E | 2016-11-22 16:56:44 | 0.35 | y | 499 | 14 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-22 16:56:51 | -0.2 | y | 564 | 90 | |||
| IIEES | SHRO | Z | Pn | E | 2016-11-22 16:57:18 | -0.16 | y | 782 | 59 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-22 16:57:21 | -0.25 | y | 805 | 79 | |||
| IIEES | SHRT | Z | Pn | E | 2016-11-22 16:57:57 | -0.16 | y | 1098 | 81 | |||
