Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-11-26 16:12:14.5 |
| Date & Time (Local) | 1395/9/6 19:42:14.5 |

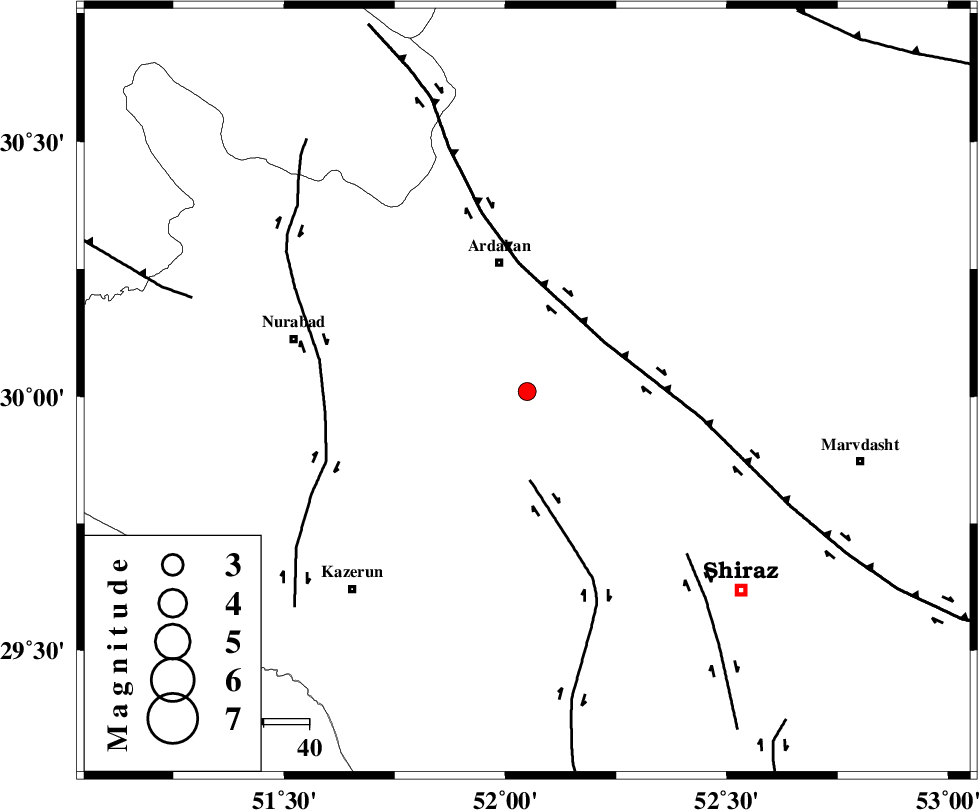

| Location | Lat:30.01 Lon: 52.049 |
| Region | Fars Province, 29 km South of Ardakan |
Nearest Cities |
|
| 23 km South of Bahrghan, Fars Province | |
| 29 km South of Ardakan, Fars Province | |
| 34 km North West of Baiza, Fars Province | |
| 37 km West of Banesh, Fars Province | |
| 41 km North East of Nodan, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 19 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 20 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 44 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 12.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111020 | IIEES | AHRM | N | 136 | 0.53 | 2016-11-26 16:13:00 | 2016-11-27 10:57:00 | n |
| 111021 | IIEES | AHRM | E | 89.3 | 0.36 | 2016-11-26 16:13:04 | 2016-11-27 10:57:00 | n |
| 111022 | IIEES | KHMZ | E | 3.2 | 0.57 | 2016-11-26 16:14:09 | 2016-11-27 10:57:00 | n |
| 111023 | IIEES | KHMZ | N | 3.1 | 0.57 | 2016-11-26 16:14:37 | 2016-11-27 10:57:00 | n |
| 111024 | IIEES | ASAO | E | 1.8 | 0.65 | 2016-11-26 16:14:30 | 2016-11-27 10:57:00 | n |
| 111025 | IIEES | ASAO | N | 2.5 | 0.13 | 2016-11-26 16:14:33 | 2016-11-27 10:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-11-26 16:12:38 | -0.06 | y | 146 | 210 | |||
| IIEES | AHRM | E | Sg | E | 2016-11-26 16:12:56 | 0.04 | y | 146 | 210 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-26 16:13:01 | -0.04 | y | 318 | 13 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-26 16:13:06 | 0.04 | y | 358 | 42 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-26 16:13:19 | -0.04 | y | 458 | 335 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-26 16:13:29 | 0.14 | y | 538 | 340 | |||
| IIEES | ILBA | Z | Pn | E | 2016-11-26 16:13:47 | 0.08 | y | 683 | 307 | |||
| IIEES | SNGE | Z | Pn | E | 2016-11-26 16:13:51 | -0.17 | y | 716 | 323 | |||
