Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-12-05 22:16:55.6 |
| Date & Time (Local) | 1395/9/16 01:46:55.6 |
| Location | Lat:32.699 Lon: 47.778 |
| Region | Ilam Province, 51 km South of Pol-e dokhtar |
Nearest Cities |
|
| 30 km South East of Sarabbagh, Ilam Province | |
| 39 km South East of Abdanan, Ilam Province | |
| 43 km North East of Musian, Ilam Province | |
| 43 km West of Bidruyeh, Khoozestan Province | |
| 44 km North West of Hoseinieh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |

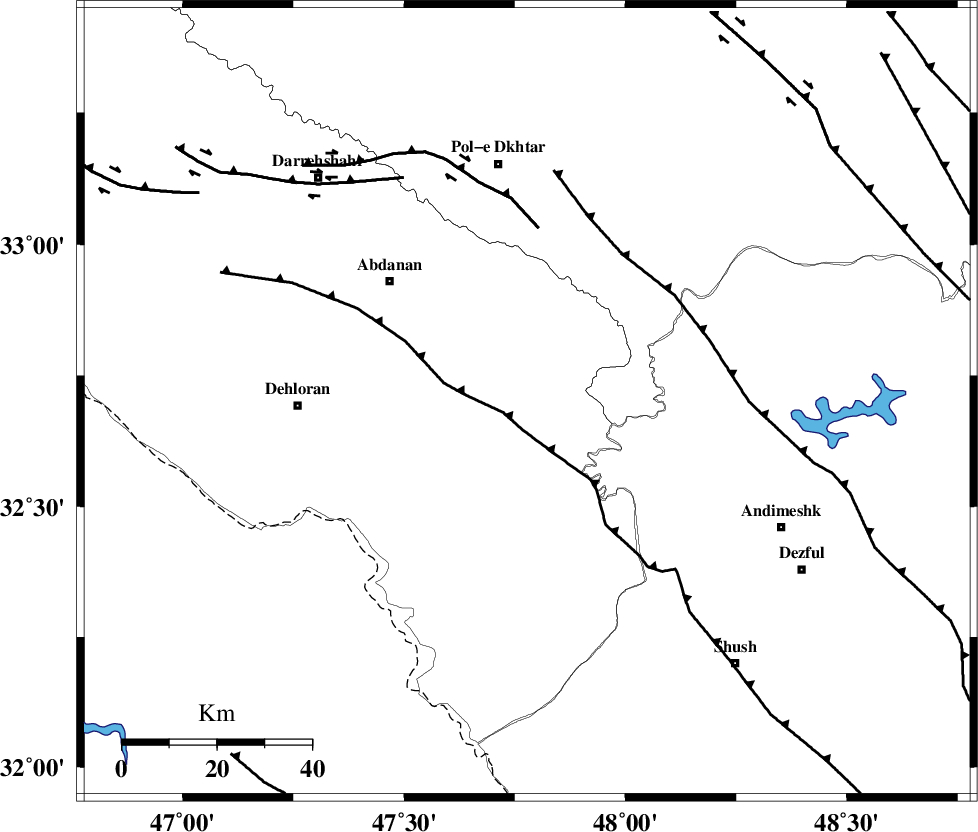

Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 13 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 30 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >6 km |
| Error in Longitude | 4 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111207 | IIEES | ILBA | N | 124.1 | 0.51 | 2016-12-05 22:17:52 | 2016-12-06 08:45:00 | n |
| 111208 | IIEES | ILBA | E | 142.8 | 0.37 | 2016-12-05 22:17:56 | 2016-12-06 08:45:00 | n |
| 111209 | IIEES | KHMZ | E | 54.6 | 0.54 | 2016-12-05 22:18:08 | 2016-12-06 08:45:00 | n |
| 111210 | IIEES | KHMZ | N | 55.8 | 0.54 | 2016-12-05 22:18:08 | 2016-12-06 08:45:00 | n |
| 111211 | IIEES | ASAO | N | 40.4 | 0.57 | 2016-12-05 22:18:25 | 2016-12-06 08:45:00 | n |
| 111212 | IIEES | ASAO | E | 46.7 | 0.84 | 2016-12-05 22:18:26 | 2016-12-06 08:45:00 | n |
| 111213 | IIEES | GHVR | E | 33.3 | 0.67 | 2016-12-05 22:18:36 | 2016-12-06 08:45:00 | n |
| 111214 | IIEES | GHVR | N | 22.6 | 0.59 | 2016-12-05 22:18:59 | 2016-12-06 08:45:00 | n |
| 111215 | IIEES | DAMV | E | 8.3 | 0.63 | 2016-12-05 22:19:23 | 2016-12-06 08:45:00 | n |
| 111216 | IIEES | DAMV | N | 5.7 | 0.55 | 2016-12-05 22:19:24 | 2016-12-06 08:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2016-12-05 22:17:25 | -0.01 | y | 179 | 305 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-12-05 22:17:32 | 0.38 | y | 234 | 60 | |||
| IIEES | KHMZ | N | Sg | E | 2016-12-05 22:18:01 | -0.11 | y | 234 | 60 | |||
| IIEES | SNGE | Z | Pn | E | 2016-12-05 22:17:36 | -0.05 | y | 269 | 352 | |||
| IIEES | ASAO | Z | Pn | E | 2016-12-05 22:17:40 | 0.46 | y | 292 | 45 | |||
| IIEES | GHVR | Z | Pn | E | 2016-12-05 22:17:50 | 0.7 | y | 378 | 58 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-12-05 22:17:59 | -0.21 | y | 448 | 10 | |||
| IIEES | CHTH | Z | Pn | E | 2016-12-05 22:18:01 | -0.34 | y | 471 | 40 | |||
| IIEES | NASN | Z | Pn | E | 2016-12-05 22:18:01 | -0.69 | y | 472 | 87 | |||
| IIEES | DAMV | Z | Pn | E | 2016-12-05 22:18:05 | -0.57 | y | 505 | 49 | |||
| IIEES | AHRM | Z | Pn | E | 2016-12-05 22:18:10 | 0.05 | y | 542 | 141 | |||
