Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-12-06 12:35:56.4 |
| Date & Time (Local) | 1395/9/16 16:05:56.4 |

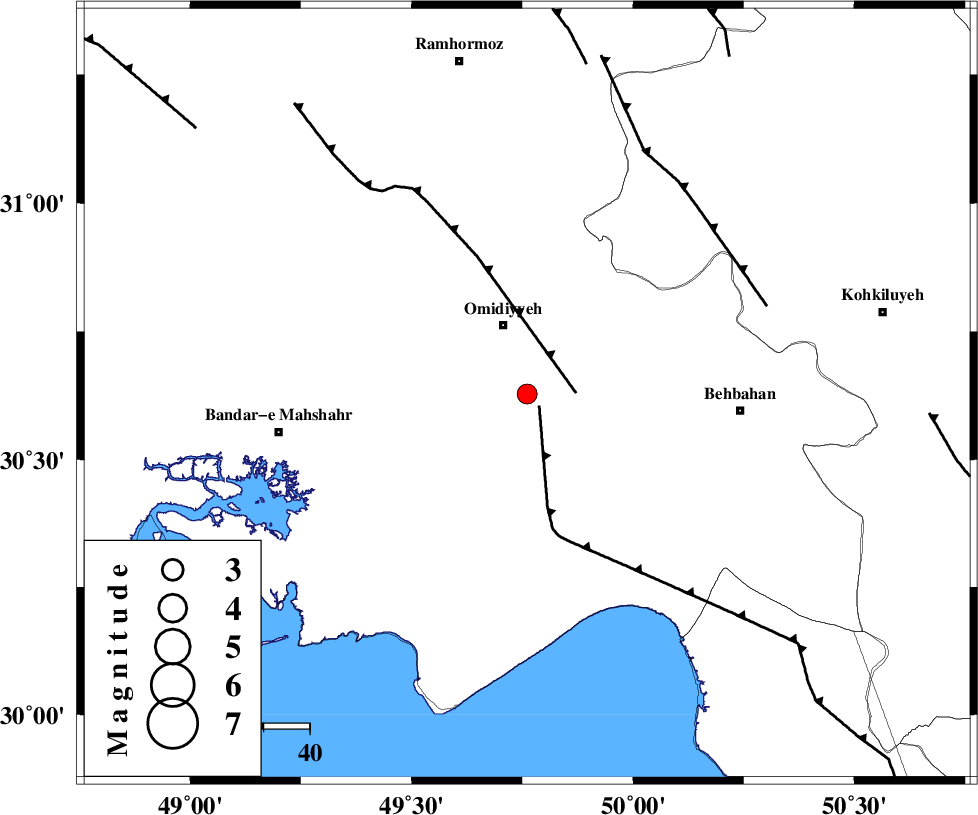

| Location | Lat:30.628 Lon: 49.761 |
| Region | Khoozestan Province, 16 km South of Omidiyeh |
Nearest Cities |
|
| 5 km North of Asiyab, Khoozestan Province | |
| 10 km of Aghajari, Khoozestan Province | |
| 11 km of Chah-e salem, Khoozestan Province | |
| 16 km South of Omidiyeh, Khoozestan Province | |
| 20 km North of Chamkhalf-e eisa, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 4 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 11 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 55 km | |
| Number of Phases | 8 |
| RMS | 0.7 |
| Number of Stations | 8 |
| Error in Latitude | >7.7 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111217 | IIEES | AHRM | N | 80.7 | 0.44 | 2016-12-06 12:37:21 | 2016-12-07 08:57:00 | n |
| 111218 | IIEES | AHRM | E | 59.9 | 0.44 | 2016-12-06 12:37:27 | 2016-12-07 08:57:00 | n |
| 111219 | IIEES | GHVR | E | 11.6 | 0.5 | 2016-12-06 12:38:16 | 2016-12-07 08:57:00 | n |
| 111220 | IIEES | ILBA | E | 6.1 | 0.64 | 2016-12-06 12:38:22 | 2016-12-07 08:57:00 | n |
| 111221 | IIEES | ILBA | N | 7.8 | 0.5 | 2016-12-06 12:38:23 | 2016-12-07 08:57:00 | n |
| 111222 | IIEES | SNGE | E | 2.4 | 0.58 | 2016-12-06 12:38:22 | 2016-12-07 08:57:00 | n |
| 111223 | IIEES | SNGE | N | 3 | 0.47 | 2016-12-06 12:38:46 | 2016-12-07 08:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-12-06 12:36:33 | -0.4 | y | 245 | 142 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-12-06 12:36:46 | -0.65 | y | 346 | 3 | |||
| IIEES | NASN | Z | Pn | E | 2016-12-06 12:36:51 | 0.14 | y | 376 | 49 | |||
| IIEES | ASAO | Z | Pn | E | 2016-12-06 12:36:58 | -0.16 | y | 435 | 3 | |||
| IIEES | GHVR | Z | Pn | E | 2016-12-06 12:36:59 | -0.57 | y | 449 | 18 | |||
| IIEES | ILBA | Z | Pn | E | 2016-12-06 12:37:03 | 1.13 | y | 472 | 316 | |||
| IIEES | YZKH | Z | Pn | E | 2016-12-06 12:37:07 | 1.27 | y | 499 | 66 | |||
| IIEES | SNGE | Z | Pn | E | 2016-12-06 12:37:11 | -0.41 | y | 544 | 336 | |||
