Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-12-19 17:33:45.3 |
| Date & Time (Local) | 1395/9/29 21:03:45.3 |

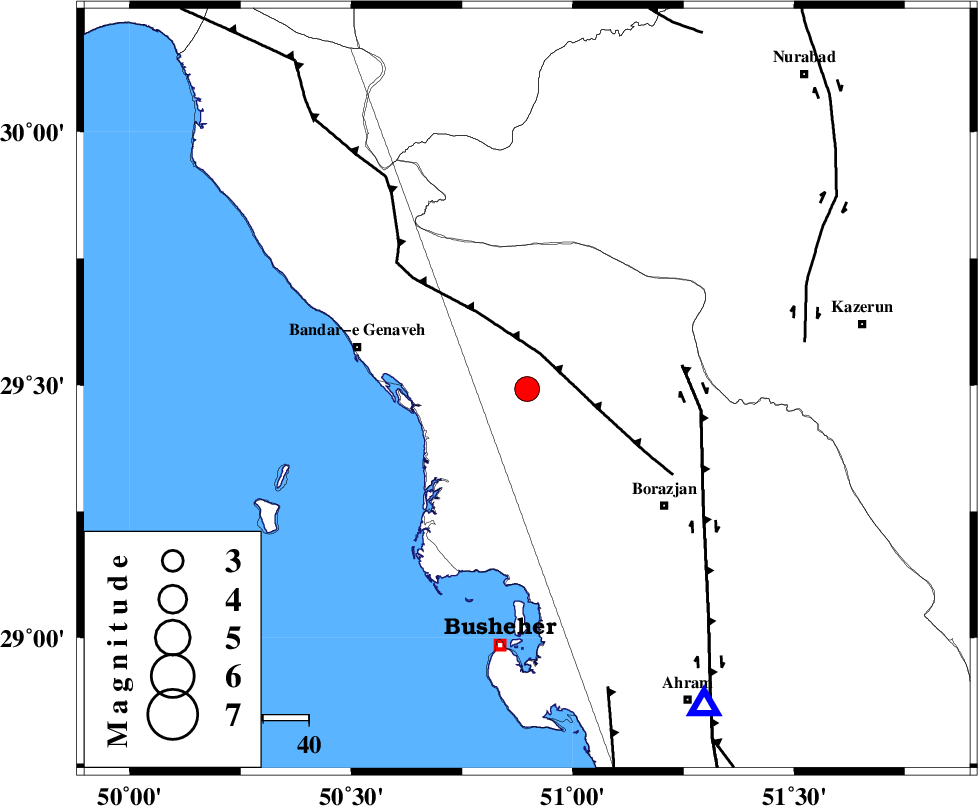

| Location | Lat:29.492 Lon: 50.897 |
| Region | Bushehr Province, 38 km -East of Bandar-e genaveh |
Nearest Cities |
|
| 9 km North of Dehkohneh, Bushehr Province | |
| 13 km East of Chehar rustaee, Bushehr Province | |
| 23 km North of Shabankareh, Bushehr Province | |
| 25 km North of Kareband, Bushehr Province | |
| 25 km North West of Saedabad, Bushehr Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 8 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 34 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 62 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111608 | IIEES | KHMZ | E | 36.5 | 0.52 | 2016-12-19 17:36:45 | 2016-12-20 07:20:00 | n |
| 111609 | IIEES | KHMZ | N | 41.2 | 0.6 | 2016-12-19 17:36:54 | 2016-12-20 07:20:00 | n |
| 111610 | IIEES | GHVR | E | 21.2 | 0.51 | 2016-12-19 17:36:19 | 2016-12-20 07:20:00 | n |
| 111611 | IIEES | GHVR | N | 24.3 | 0.1 | 2016-12-19 17:36:44 | 2016-12-20 07:20:00 | n |
| 111612 | IIEES | BNDS | N | 23.2 | 0.44 | 2016-12-19 17:36:11 | 2016-12-20 07:20:00 | n |
| 111613 | IIEES | BNDS | E | 19.6 | 0.38 | 2016-12-19 17:36:16 | 2016-12-20 07:20:00 | n |
| 111614 | IIEES | ASAO | N | 24.1 | 0.4 | 2016-12-19 17:36:06 | 2016-12-20 07:20:00 | n |
| 111615 | IIEES | ASAO | E | 21.3 | 0.8 | 2016-12-19 17:36:14 | 2016-12-20 07:20:00 | n |
| 111616 | IIEES | KRBR | E | 23.7 | 0.37 | 2016-12-19 17:36:09 | 2016-12-20 07:20:00 | n |
| 111617 | IIEES | KRBR | N | 22 | 0.65 | 2016-12-19 17:36:15 | 2016-12-20 07:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-12-19 17:33:59 | 0 | y | 79.6 | 151 | |||
| IIEES | YZKH | Z | Pn | E | 2016-12-19 17:34:52 | -0.04 | y | 477 | 47 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-12-19 17:34:53 | 0.25 | y | 479 | 350 | |||
| IIEES | GHVR | Z | Pn | E | 2016-12-19 17:35:02 | 0.21 | y | 554 | 3 | |||
| IIEES | BNDS | Z | Pn | E | 2016-12-19 17:35:03 | -0.15 | y | 566 | 113 | |||
| IIEES | ASAO | Z | Pn | E | 2016-12-19 17:35:04 | 0.14 | y | 567 | 352 | |||
| IIEES | KRBR | Z | Pn | E | 2016-12-19 17:35:04 | 0.41 | y | 570 | 83 | |||
| IIEES | ILBA | Z | Pn | E | 2016-12-19 17:35:12 | -0.27 | y | 639 | 317 | |||
| IIEES | DAMV | Z | Pn | E | 2016-12-19 17:35:18 | -0.49 | y | 688 | 8 | |||
| IIEES | SNGE | Z | Pn | E | 2016-12-19 17:35:21 | 0.11 | y | 705 | 333 | |||
| IIEES | CHTH | Z | Pn | E | 2016-12-19 17:35:22 | 0.09 | y | 712 | 2 | |||
| IIEES | TABS | Z | Pn | E | 2016-12-19 17:35:26 | -0.2 | y | 749 | 50 | |||
| IIEES | SHRO | Z | Pn | E | 2016-12-19 17:35:40 | -0.34 | y | 867 | 32 | |||
| IIEES | MRVT | Z | Pn | E | 2016-12-19 17:36:00 | -0.31 | y | 1026 | 27 | |||
