Magnitude |
:4.1 |
| Date & Time (UTC) | 2017-01-20 22:58:32.1 |
| Date & Time (Local) | 1395/11/2 02:28:32.1 |

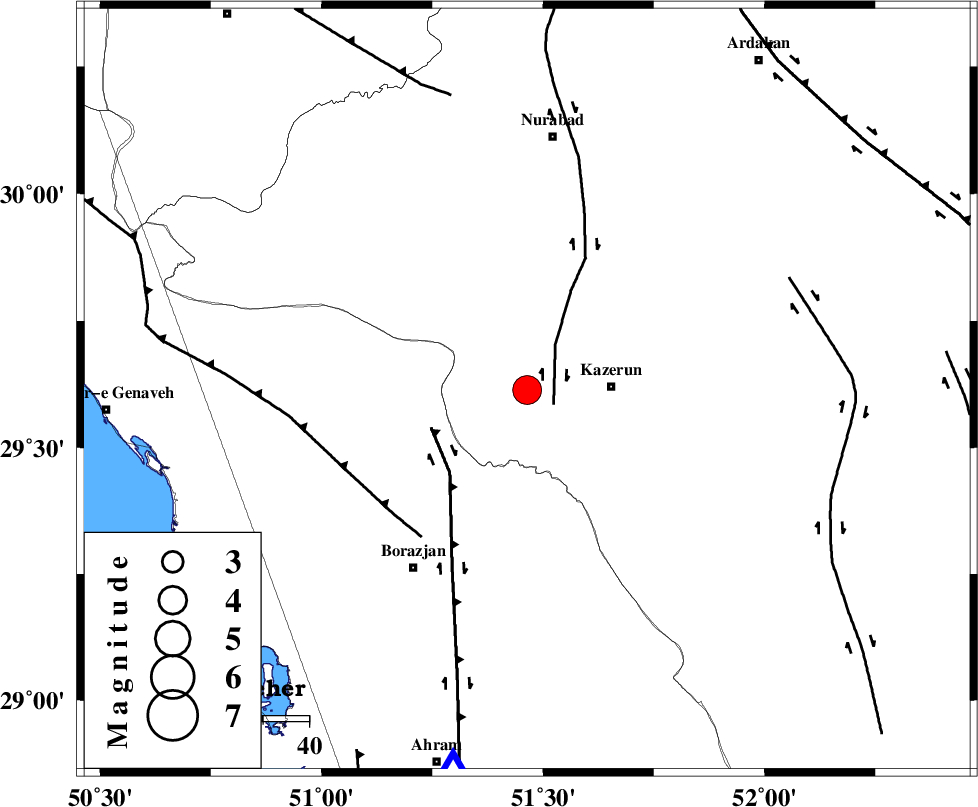

| Location | Lat:29.614 Lon: 51.464 |
| Region | Fars Province, 18 km -West of Kazerun |
Nearest Cities |
|
| 2 km of Kamaraj, Fars Province | |
| 13 km West of Deris, Fars Province | |
| 13 km North East of Khesht, Fars Province | |
| 18 km West of Kazerun, Fars Province | |
| 20 km North West of Mehranjan, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 7 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 23 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 40 km | |
| Number of Phases | 22 |
| RMS | 0.8 |
| Number of Stations | 22 |
| Error in Latitude | >7.2 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112380 | IIEES | AHRM | N | 5279.8 | 0.55 | 2017-01-20 22:59:04 | 2017-01-21 05:22:00 | n |
| 112381 | IIEES | AHRM | E | 4843.5 | 0.83 | 2017-01-20 22:59:11 | 2017-01-21 05:22:00 | n |
| 112382 | IIEES | GHIR | E | 1401.8 | 0.44 | 2017-01-20 22:59:42 | 2017-01-21 05:22:00 | n |
| 112383 | IIEES | GHIR | N | 1633.8 | 0.44 | 2017-01-20 22:59:50 | 2017-01-21 05:22:00 | n |
| 112384 | IIEES | YZKH | N | 129.1 | 0.82 | 2017-01-20 23:00:46 | 2017-01-21 05:22:00 | n |
| 112385 | IIEES | KHMZ | E | 130.7 | 0.62 | 2017-01-20 23:00:33 | 2017-01-21 05:22:00 | n |
| 112386 | IIEES | KHMZ | N | 107.5 | 0.73 | 2017-01-20 23:01:01 | 2017-01-21 05:22:00 | n |
| 112387 | IIEES | KRBR | E | 118.6 | 0.17 | 2017-01-20 23:00:42 | 2017-01-21 05:22:00 | n |
| 112388 | IIEES | KRBR | N | 101.5 | 0.58 | 2017-01-20 23:00:51 | 2017-01-21 05:22:00 | n |
| 112389 | IIEES | GHVR | N | 173.7 | 0.8 | 2017-01-20 23:00:47 | 2017-01-21 05:22:00 | n |
| 112390 | IIEES | GHVR | E | 103.8 | 0.62 | 2017-01-20 23:00:53 | 2017-01-21 05:22:00 | n |
| 112391 | IIEES | ASAO | N | 78.8 | 0.64 | 2017-01-20 23:00:53 | 2017-01-21 05:22:00 | n |
| 112392 | IIEES | ASAO | E | 123.3 | 0.37 | 2017-01-20 23:00:56 | 2017-01-21 05:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2017-01-20 22:58:48 | 1.49 | n | 4 | 84.5 | 191 | ||
| IIEES | GHIR | Z | Pn | E | 2017-01-20 22:59:06 | 0.77 | y | 209 | 134 | |||
| IIEES | NASN | Z | Pn | E | 2017-01-20 22:59:26 | -0.18 | y | 376 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2017-01-20 22:59:33 | 0.54 | y | 429 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-01-20 22:59:39 | -0.12 | y | 479 | 343 | |||
| IIEES | KRBR | Z | Pn | E | 2017-01-20 22:59:43 | 0.05 | y | 514 | 84 | |||
| IIEES | GHVR | Z | Pn | E | 2017-01-20 22:59:47 | 1.07 | y | 540 | 358 | |||
| IIEES | ASAO | Z | Pn | E | 2017-01-20 22:59:49 | 0.16 | y | 564 | 346 | |||
| IIEES | ILBA | Z | Pn | E | 2017-01-20 23:00:01 | -0.96 | y | 668 | 313 | |||
| IIEES | DAMV | Z | Pn | E | 2017-01-20 23:00:02 | -0.43 | y | 669 | 4 | |||
| IIEES | TABS | Z | Pn | E | 2017-01-20 23:00:06 | -0.08 | y | 698 | 49 | |||
| IIEES | CHTH | Z | Pn | E | 2017-01-20 23:00:06 | 0.17 | y | 699 | 357 | |||
| IIEES | THKV | Z | Pn | E | 2017-01-20 23:00:07 | 0.72 | y | 701 | 356 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-20 23:00:09 | -0.08 | y | 721 | 329 | |||
| IIEES | GIDE | Z | Pn | E | 2017-01-20 23:00:21 | 0.09 | y | 824 | 350 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-01-20 23:00:21 | -0.46 | y | 825 | 342 | |||
| IIEES | SHRO | Z | Pn | E | 2017-01-20 23:00:21 | -0.48 | y | 827 | 30 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-01-20 23:00:29 | -2.57 | y | 902 | 88 | |||
| IIEES | SHRT | Z | Pn | E | 2017-01-20 23:00:37 | 0.24 | y | 949 | 60 | |||
| IIEES | MRVT | Z | Pn | E | 2017-01-20 23:00:42 | -0.1 | y | 990 | 24 | |||
| IIEES | CHBR | Z | Pn | E | 2017-01-20 23:00:40 | -2.18 | y | 995 | 114 | |||
| IIEES | GRMI | Z | Pn | E | 2017-01-20 23:00:52 | -0.2 | y | 1072 | 343 | |||
