Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-01-20 23:10:00.2 |
| Date & Time (Local) | 1395/11/2 02:40:00.2 |

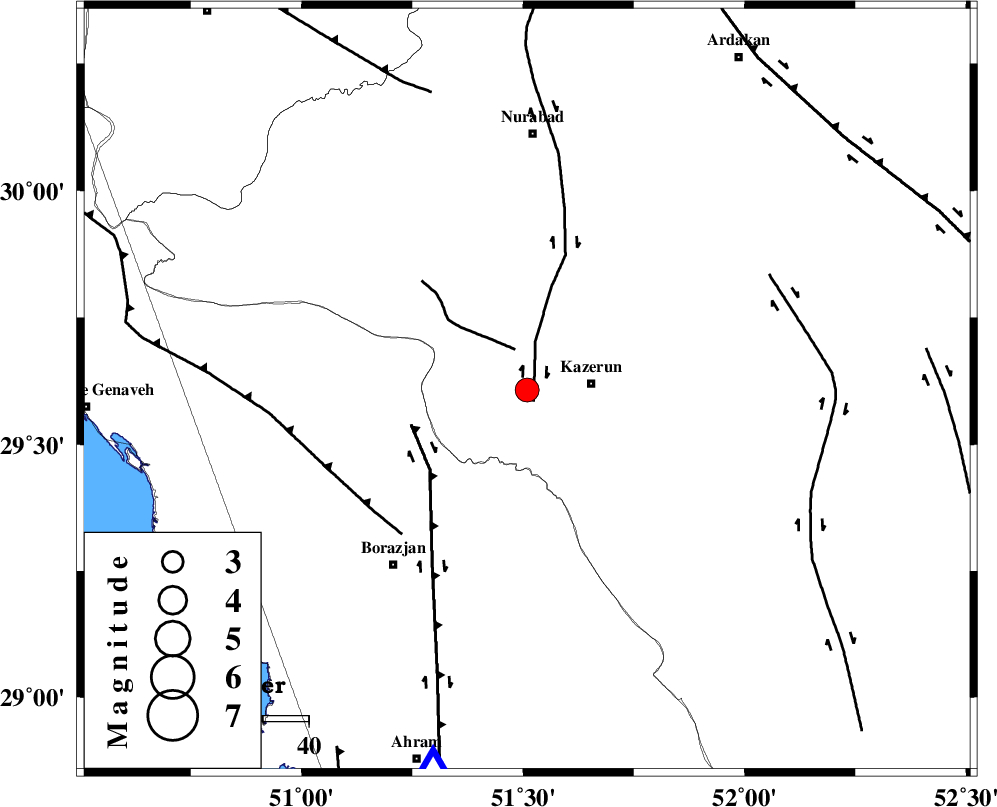

| Location | Lat:29.608 Lon: 51.509 |
| Region | Fars Province, 14 km -West of Kazerun |
Nearest Cities |
|
| 4 km of Kamaraj, Fars Province | |
| 10 km of Deris, Fars Province | |
| 14 km West of Kazerun, Fars Province | |
| 16 km North West of Mehranjan, Fars Province | |
| 17 km North East of Khesht, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 3 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 26 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 42 km | |
| Number of Phases | 14 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112404 | IIEES | AHRM | E | 783.7 | 0.65 | 2017-01-20 23:10:35 | 2017-01-21 06:47:00 | n |
| 112405 | IIEES | AHRM | N | 873.9 | 0.28 | 2017-01-20 23:10:36 | 2017-01-21 06:47:00 | n |
| 112406 | IIEES | GHIR | N | 228.3 | 0.11 | 2017-01-20 23:11:06 | 2017-01-21 06:47:00 | n |
| 112407 | IIEES | GHIR | E | 221.8 | 0.48 | 2017-01-20 23:11:09 | 2017-01-21 06:47:00 | n |
| 112408 | IIEES | KHMZ | E | 30.6 | 0.25 | 2017-01-20 23:12:00 | 2017-01-21 06:47:00 | n |
| 112409 | IIEES | KRBR | N | 23.4 | 0.54 | 2017-01-20 23:12:15 | 2017-01-21 06:47:00 | n |
| 112410 | IIEES | KRBR | E | 35.5 | 0.54 | 2017-01-20 23:12:37 | 2017-01-21 06:47:00 | n |
| 112411 | IIEES | GHVR | N | 29.9 | 0.34 | 2017-01-20 23:12:14 | 2017-01-21 06:47:00 | n |
| 112412 | IIEES | GHVR | E | 17.3 | 0.42 | 2017-01-20 23:12:14 | 2017-01-21 06:47:00 | n |
| 112413 | IIEES | ASAO | E | 21.2 | 0.6 | 2017-01-20 23:12:18 | 2017-01-21 06:47:00 | n |
| 112414 | IIEES | ASAO | N | 23.8 | 0.46 | 2017-01-20 23:12:18 | 2017-01-21 06:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2017-01-20 23:10:15 | 1.05 | n | 4 | 84.8 | 194 | ||
| IIEES | GHIR | Z | Pn | E | 2017-01-20 23:10:33 | 0.17 | y | 205 | 135 | |||
| IIEES | NASN | Z | Pn | E | 2017-01-20 23:10:54 | -0.13 | y | 375 | 19 | |||
| IIEES | YZKH | Z | Pn | E | 2017-01-20 23:11:01 | 0.29 | y | 426 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-01-20 23:11:07 | 0.18 | y | 481 | 343 | |||
| IIEES | KRBR | Z | Pn | E | 2017-01-20 23:11:11 | 0.09 | y | 509 | 84 | |||
| IIEES | GHVR | Z | Pn | E | 2017-01-20 23:11:15 | 0.83 | y | 541 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2017-01-20 23:11:18 | 0.57 | y | 565 | 346 | |||
| IIEES | DAMV | Z | Pn | E | 2017-01-20 23:11:30 | -1.05 | y | 669 | 4 | |||
| IIEES | TABS | Z | Pn | E | 2017-01-20 23:11:34 | 0.15 | y | 696 | 48 | |||
| IIEES | CHTH | Z | Pn | E | 2017-01-20 23:11:35 | 0.81 | y | 700 | 357 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-20 23:11:36 | -1.44 | y | 723 | 328 | |||
| IIEES | SHRO | Z | Pn | E | 2017-01-20 23:11:49 | -0.96 | y | 826 | 30 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-01-20 23:11:58 | -1.18 | y | 897 | 88 | |||
