Magnitude |
:3.1 |
| Date & Time (UTC) | 2017-01-20 02:18:30.6 |
| Date & Time (Local) | 1395/11/1 05:48:30.6 |

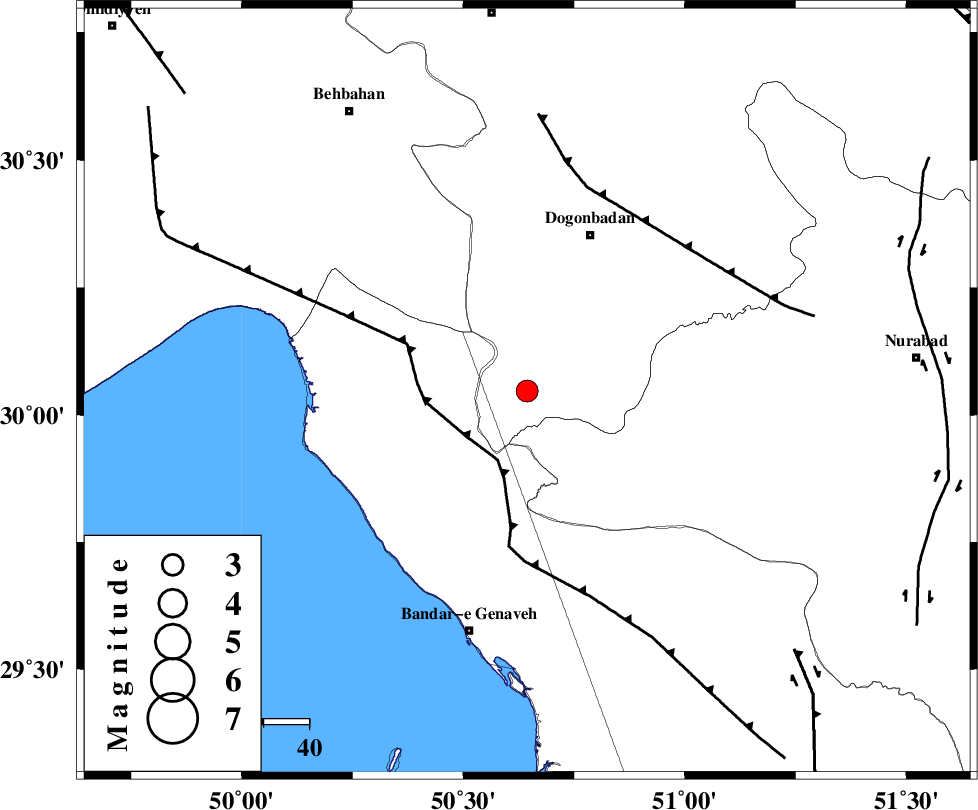

| Location | Lat:30.047 Lon: 50.644 |
| Region | Kohkiluieh va boyerahmad Province, 37 km South-West of Dogonbadan |
Nearest Cities |
|
| 30 km East of Siyahmakan-e bozorg, Bushehr Province | |
| 37 km South West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 43 km North East of Emamhasan, Bushehr Province | |
| 45 km North of Mohammad salehi, Bushehr Province | |
| 46 km South East of Ameri, Bushehr Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 16 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 28 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 45 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112451 | IIEES | AHRM | N | 194 | 0.38 | 2017-01-20 02:19:18 | 2017-01-21 08:19:00 | n |
| 112452 | IIEES | AHRM | E | 213.9 | 0.32 | 2017-01-20 02:19:19 | 2017-01-21 08:19:00 | n |
| 112453 | IIEES | GHIR | N | 69.9 | 0.46 | 2017-01-20 02:20:03 | 2017-01-21 08:19:00 | n |
| 112454 | IIEES | GHIR | E | 48.9 | 0.46 | 2017-01-20 02:20:09 | 2017-01-21 08:19:00 | n |
| 112455 | IIEES | KHMZ | E | 18.4 | 0.52 | 2017-01-20 02:20:18 | 2017-01-21 08:19:00 | n |
| 112456 | IIEES | KHMZ | N | 14.8 | 0.3 | 2017-01-20 02:20:18 | 2017-01-21 08:19:00 | n |
| 112457 | IIEES | GHVR | E | 10.6 | 0.35 | 2017-01-20 02:20:38 | 2017-01-21 08:19:00 | n |
| 112458 | IIEES | GHVR | N | 12.5 | 0.61 | 2017-01-20 02:20:51 | 2017-01-21 08:19:00 | n |
| 112459 | IIEES | ASAO | N | 12.7 | 0.44 | 2017-01-20 02:20:35 | 2017-01-21 08:19:00 | n |
| 112460 | IIEES | ASAO | E | 16.2 | 0.5 | 2017-01-20 02:20:36 | 2017-01-21 08:19:00 | n |
| 112461 | IIEES | KRBR | N | 9 | 0.54 | 2017-01-20 02:20:58 | 2017-01-21 08:19:00 | n |
| 112462 | IIEES | KRBR | E | 10.2 | 0.48 | 2017-01-20 02:21:04 | 2017-01-21 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2017-01-20 02:18:57 | 2.79 | n | 4 | 145 | 154 | ||
| IIEES | GHIR | Z | Pn | E | 2017-01-20 02:19:15 | -0.18 | y | 300 | 130 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-01-20 02:19:30 | 0.75 | y | 415 | 351 | |||
| IIEES | YZKH | Z | Pn | E | 2017-01-20 02:19:35 | -0.03 | y | 457 | 54 | |||
| IIEES | GHVR | Z | Pn | E | 2017-01-20 02:19:39 | 0.06 | y | 495 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2017-01-20 02:19:41 | 0.22 | y | 503 | 354 | |||
| IIEES | KRBR | Z | Pn | E | 2017-01-20 02:19:52 | 0.57 | y | 590 | 89 | |||
| IIEES | DAMV | Z | Pn | E | 2017-01-20 02:19:56 | -0.64 | y | 632 | 11 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-20 02:19:57 | -0.73 | y | 639 | 332 | |||
| IIEES | TABS | Z | Pn | E | 2017-01-20 02:20:08 | -0.69 | y | 731 | 55 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-01-20 02:20:12 | 0.35 | y | 757 | 347 | |||
| IIEES | SHRO | Z | Pn | E | 2017-01-20 02:20:20 | -0.64 | y | 830 | 36 | |||
| IIEES | BSRN | Z | Pn | E | 2017-01-20 02:20:22 | 0.54 | y | 837 | 73 | |||
| IIEES | MRVT | Z | Pn | E | 2017-01-20 02:20:39 | -0.59 | y | 983 | 29 | |||
| IIEES | SHRT | Z | Pn | E | 2017-01-20 02:20:42 | 0.53 | y | 996 | 64 | |||
