Magnitude |
:4.3 |
| Date & Time (UTC) | 2017-01-22 06:47:38.7 |
| Date & Time (Local) | 1395/11/3 10:17:38.7 |

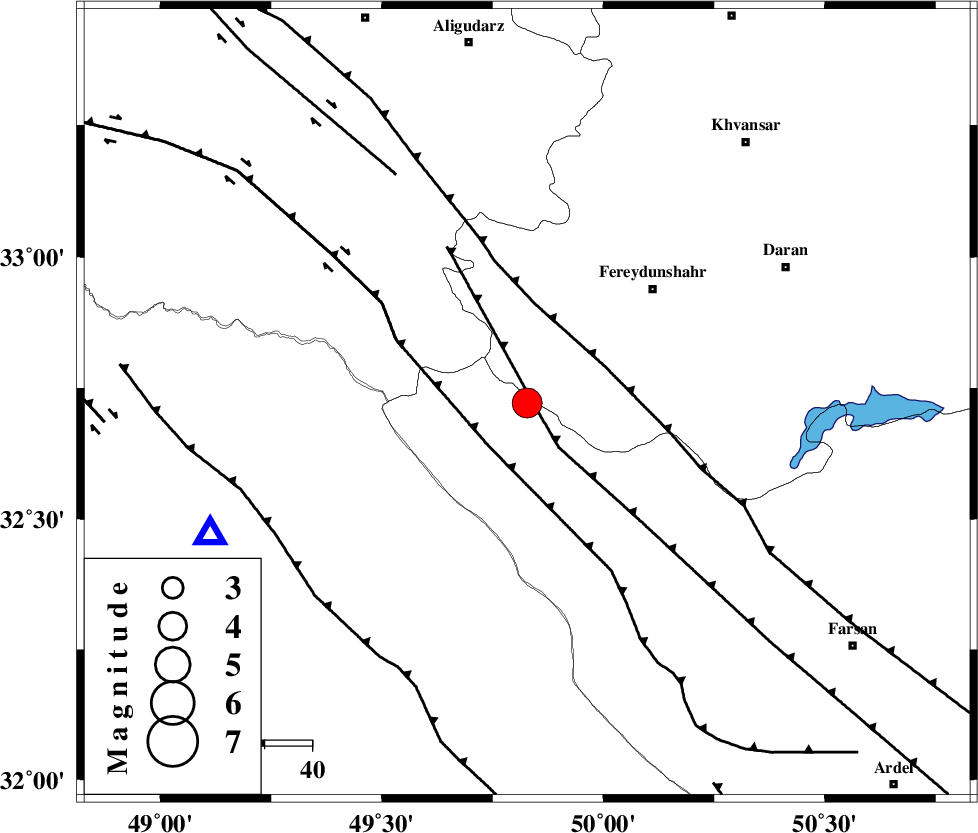

| Location | Lat:32.721 Lon: 49.828 |
| Region | Chaharmahal Bakhtiari Province, 36 km South-West of Fereydunshahr |
Nearest Cities |
|
| 4 km North of Durak, Chaharmahal Bakhtiari Province | |
| 14 km South of Masir, Esfahan Province | |
| 28 km South West of Sibak, Esfahan Province | |
| 36 km South West of Fereydunshahr, Esfahan Province | |
| 37 km West of Ghale? sorkh, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 2 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 18 km | |
| Number of Phases | 25 |
| RMS | 0.6 |
| Number of Stations | 24 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 6 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112496 | IIEES | ASAO | N | 1693.3 | 0.61 | 2017-01-22 06:48:50 | 2017-01-22 07:45:00 | n |
| 112497 | IIEES | GHVR | N | 2313.7 | 0.59 | 2017-01-22 06:48:56 | 2017-01-22 07:45:00 | n |
| 112498 | IIEES | GHVR | E | 3046.4 | 0.46 | 2017-01-22 06:48:59 | 2017-01-22 07:45:00 | n |
| 112499 | IIEES | SNGE | N | 518.7 | 0.48 | 2017-01-22 06:49:31 | 2017-01-22 07:45:00 | n |
| 112500 | IIEES | THKV | N | 520.1 | 0.7 | 2017-01-22 06:49:38 | 2017-01-22 07:45:00 | n |
| 112501 | IIEES | DAMV | E | 533.6 | 0.76 | 2017-01-22 06:49:35 | 2017-01-22 07:45:00 | n |
| 112502 | IIEES | AHRM | E | 250.1 | 0.5 | 2017-01-22 06:50:00 | 2017-01-22 07:45:00 | n |
| 112503 | IIEES | AHRM | N | 214.1 | 0.58 | 2017-01-22 06:50:04 | 2017-01-22 07:45:00 | n |
| 112504 | IIEES | GIDE | N | 253.1 | 0.69 | 2017-01-22 06:49:59 | 2017-01-22 07:45:00 | n |
| 112505 | IIEES | GIDE | E | 282.1 | 0.69 | 2017-01-22 06:50:10 | 2017-01-22 07:45:00 | n |
| 112506 | IIEES | GHIR | N | 96 | 0.43 | 2017-01-22 06:50:19 | 2017-01-22 07:45:00 | n |
| 112507 | IIEES | GHIR | E | 93 | 0.65 | 2017-01-22 06:50:21 | 2017-01-22 07:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-01-22 06:47:56 | -1.12 | y | 114 | 6 | |||
| IIEES | KHMZ | N | Sg | E | 2017-01-22 06:48:11 | -0.32 | y | 114 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2017-01-22 06:48:11 | -0.04 | y | 203 | 5 | |||
| IIEES | GHVR | Z | Pn | E | 2017-01-22 06:48:15 | -0.02 | y | 235 | 34 | |||
| IIEES | NASN | Z | Pn | E | 2017-01-22 06:48:21 | 0.21 | y | 279 | 87 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-22 06:48:30 | 0.99 | y | 349 | 320 | |||
| IIEES | ILBA | Z | Pn | E | 2017-01-22 06:48:29 | -0.56 | y | 352 | 288 | |||
| IIEES | THKV | Z | Pn | E | 2017-01-22 06:48:35 | 2.9 | n | 4 | 367 | 15 | ||
| IIEES | CHTH | Z | Pn | E | 2017-01-22 06:48:33 | 0.44 | y | 373 | 18 | |||
| IIEES | DAMV | Z | Pn | E | 2017-01-22 06:48:33 | 0.21 | y | 378 | 31 | |||
| IIEES | YZKH | Z | Pn | E | 2017-01-22 06:48:42 | 0.28 | y | 449 | 93 | |||
| IIEES | AHRM | Z | Pn | E | 2017-01-22 06:48:42 | 0.06 | y | 450 | 161 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-01-22 06:48:42 | 0.05 | y | 451 | 347 | |||
| IIEES | GIDE | Z | Pn | E | 2017-01-22 06:48:44 | 0.27 | y | 466 | 1 | |||
| IIEES | GHIR | Z | Pn | E | 2017-01-22 06:48:57 | -0.99 | y | 578 | 148 | |||
| IIEES | SHRO | Z | Pn | E | 2017-01-22 06:49:11 | 0.77 | y | 676 | 56 | |||
| IIEES | TABS | Z | Pn | E | 2017-01-22 06:49:11 | -0.26 | y | 688 | 79 | |||
| IIEES | GRMI | Z | Pn | E | 2017-01-22 06:49:13 | -0.06 | y | 698 | 346 | |||
| IIEES | KRBR | Z | Pn | E | 2017-01-22 06:49:16 | -0.68 | y | 726 | 113 | |||
| IIEES | MRVT | Z | Pn | E | 2017-01-22 06:49:25 | 1.03 | y | 791 | 44 | |||
| IIEES | MAKU | Z | Pn | E | 2017-01-22 06:49:35 | 0.93 | y | 870 | 329 | |||
| IIEES | BSRN | Z | Pn | E | 2017-01-22 06:49:35 | -0.07 | y | 879 | 93 | |||
| IIEES | BJRD | Z | Pn | E | 2017-01-22 06:49:35 | -1.03 | y | 884 | 49 | |||
| IIEES | SHRT | Z | Pn | E | 2017-01-22 06:49:48 | 0.28 | y | 981 | 81 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-01-22 06:50:04 | 1.29 | y | 1098 | 105 | |||
