Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-02-12 18:25:41.5 |
| Date & Time (Local) | 1395/11/24 21:55:41.5 |

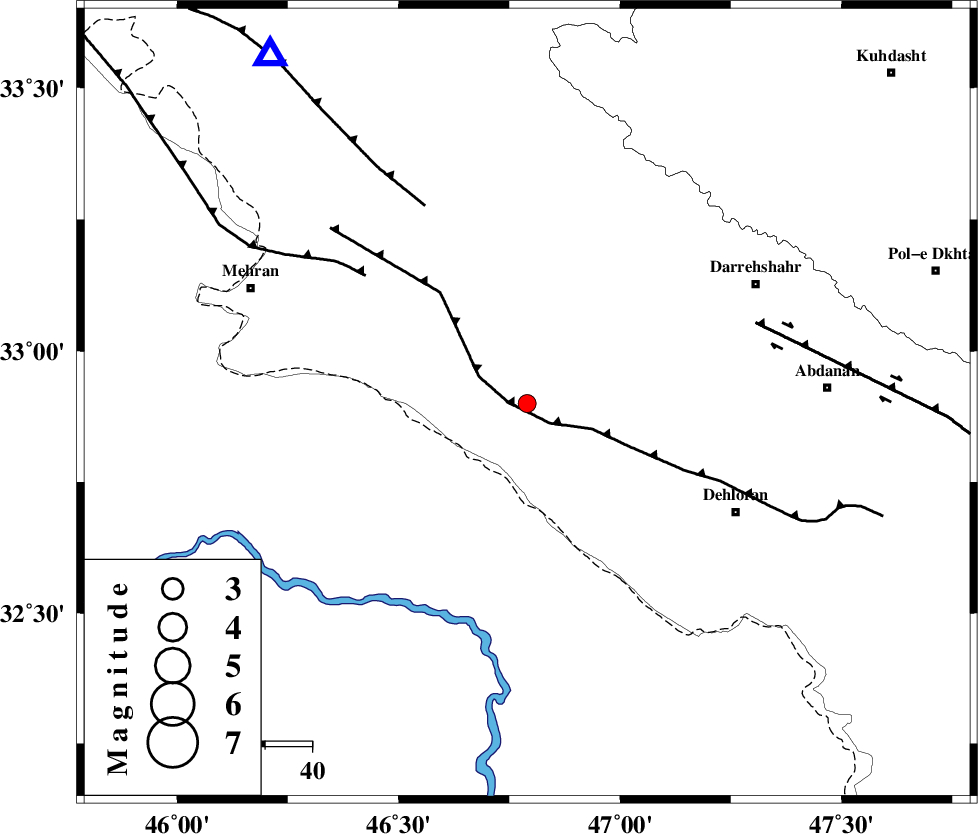

| Location | Lat:32.9 Lon: 46.79 |
| Region | Ilam Province, 50 km North-West of Dehloran |
Nearest Cities |
|
| 19 km North West of Bishehzar, Ilam Province | |
| 39 km South West of Meymeh, Ilam Province | |
| 44 km South East of Gonbad-e pirmohammad, Ilam Province | |
| 45 km South West of Badreh, Ilam Province | |
| 50 km North West of Dehloran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 4 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 44 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 47 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113300 | IIEES | SNGE | N | 24 | 0.24 | 2017-02-12 18:26:55 | 2017-02-13 06:08:00 | n |
| 113301 | IIEES | SNGE | E | 24.5 | 0.57 | 2017-02-12 18:27:04 | 2017-02-13 06:08:00 | n |
| 113302 | IIEES | KHMZ | E | 11.2 | 0.33 | 2017-02-12 18:27:04 | 2017-02-13 06:08:00 | n |
| 113303 | IIEES | KHMZ | N | 10.5 | 0.59 | 2017-02-12 18:27:19 | 2017-02-13 06:08:00 | n |
| 113304 | IIEES | ASAO | E | 8.3 | 0.25 | 2017-02-12 18:27:15 | 2017-02-13 06:08:00 | n |
| 113305 | IIEES | ASAO | N | 10.9 | 0.58 | 2017-02-12 18:27:15 | 2017-02-13 06:08:00 | n |
| 113306 | IIEES | GHVR | N | 13.7 | 0.5 | 2017-02-12 18:27:36 | 2017-02-13 06:08:00 | n |
| 113307 | IIEES | GHVR | E | 20 | 0.5 | 2017-02-12 18:27:36 | 2017-02-13 06:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2017-02-12 18:26:20 | 0.16 | y | 249 | 12 | |||
| IIEES | SNGE | N | Sg | E | 2017-02-12 18:26:51 | -0.04 | y | 249 | 12 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-12 18:26:27 | -0.04 | y | 310 | 72 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-12 18:26:33 | 0.37 | y | 351 | 58 | |||
| IIEES | ASAO | N | S | E | 2017-02-12 18:27:10 | 0.1 | y | 351 | 58 | |||
| IIEES | GHVR | Z | Pn | E | 2017-02-12 18:26:45 | 0.07 | y | 449 | 66 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-12 18:26:53 | -0.5 | y | 520 | 49 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-12 18:26:59 | -0.37 | y | 565 | 56 | |||
