Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-03-09 13:16:30.8 |
| Date & Time (Local) | 1395/12/19 16:46:30.8 |

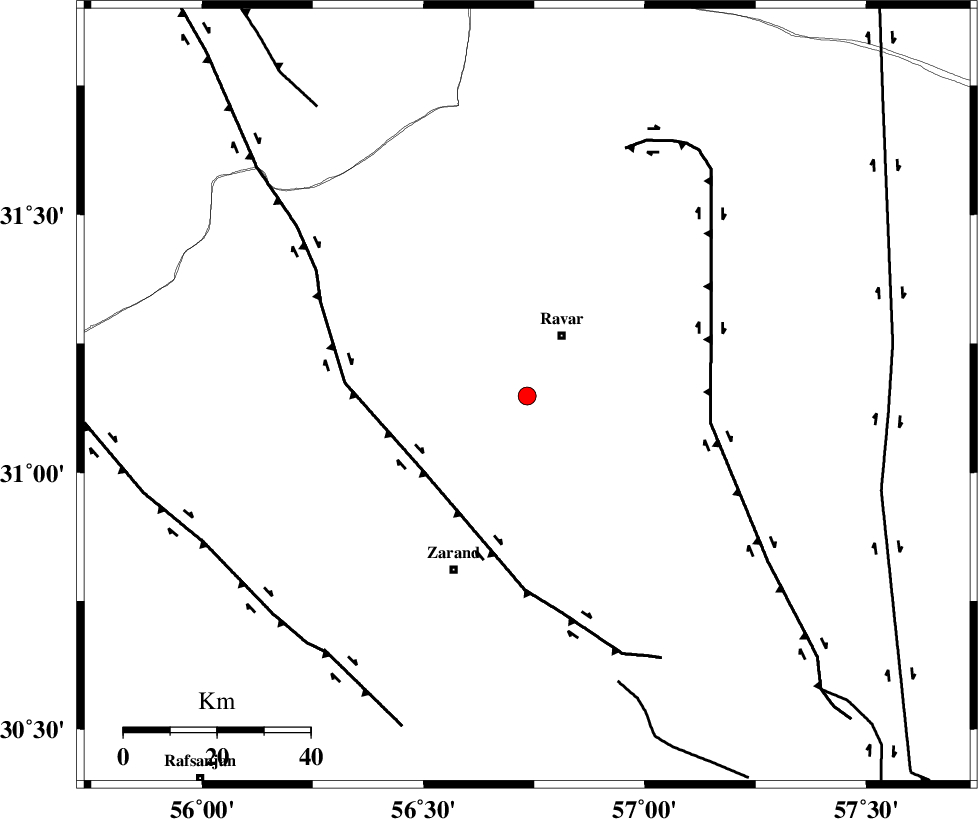

| Location | Lat:31.149 Lon: 56.734 |
| Region | Kerman Province, 15 km South of Ravar |
Nearest Cities |
|
| 15 km South of Ravar, Kerman Province | |
| 19 km North East of Ahmadi, Kerman Province | |
| 19 km North East of Dasht-e khak, Kerman Province | |
| 20 km South of Dehali, Kerman Province | |
| 30 km East of Toghroljerd, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 28 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 40 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 65 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113850 | IIEES | KRBR | N | 91.6 | 0.28 | 2017-03-09 13:17:10 | 2017-03-11 06:58:00 | n |
| 113851 | IIEES | KRBR | E | 102.9 | 0.22 | 2017-03-09 13:17:11 | 2017-03-11 06:58:00 | n |
| 113852 | IIEES | YZKH | N | 38.6 | 0.29 | 2017-03-09 13:17:43 | 2017-03-11 06:58:00 | n |
| 113853 | IIEES | YZKH | E | 45.1 | 0.46 | 2017-03-09 13:17:46 | 2017-03-11 06:58:00 | n |
| 113854 | IIEES | TABS | N | 23.5 | 0.39 | 2017-03-09 13:18:06 | 2017-03-11 06:58:00 | n |
| 113855 | IIEES | NASN | N | 5.6 | 0.43 | 2017-03-09 13:18:32 | 2017-03-11 06:58:00 | n |
| 113856 | IIEES | SHRT | N | 4.7 | 0.45 | 2017-03-09 13:18:45 | 2017-03-11 06:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-03-09 13:16:52 | -0.1 | y | 129 | 179 | |||
| IIEES | KRBR | N | Sg | E | 2017-03-09 13:17:08 | -0.01 | y | 129 | 179 | |||
| IIEES | YZKH | Z | Pn | E | 2017-03-09 13:17:09 | 0.02 | y | 245 | 305 | |||
| IIEES | YZKH | N | Sg | E | 2017-03-09 13:17:40 | -0.26 | y | 245 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2017-03-09 13:17:13 | 0.05 | y | 280 | 7 | |||
| IIEES | NASN | Z | Pn | E | 2017-03-09 13:17:30 | 0.54 | y | 414 | 297 | |||
| IIEES | SHRT | Z | Pn | E | 2017-03-09 13:17:32 | -0.16 | y | 434 | 49 | |||
