Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-04-06 21:47:14.4 |
| Date & Time (Local) | 1396/1/18 02:17:14.4 |

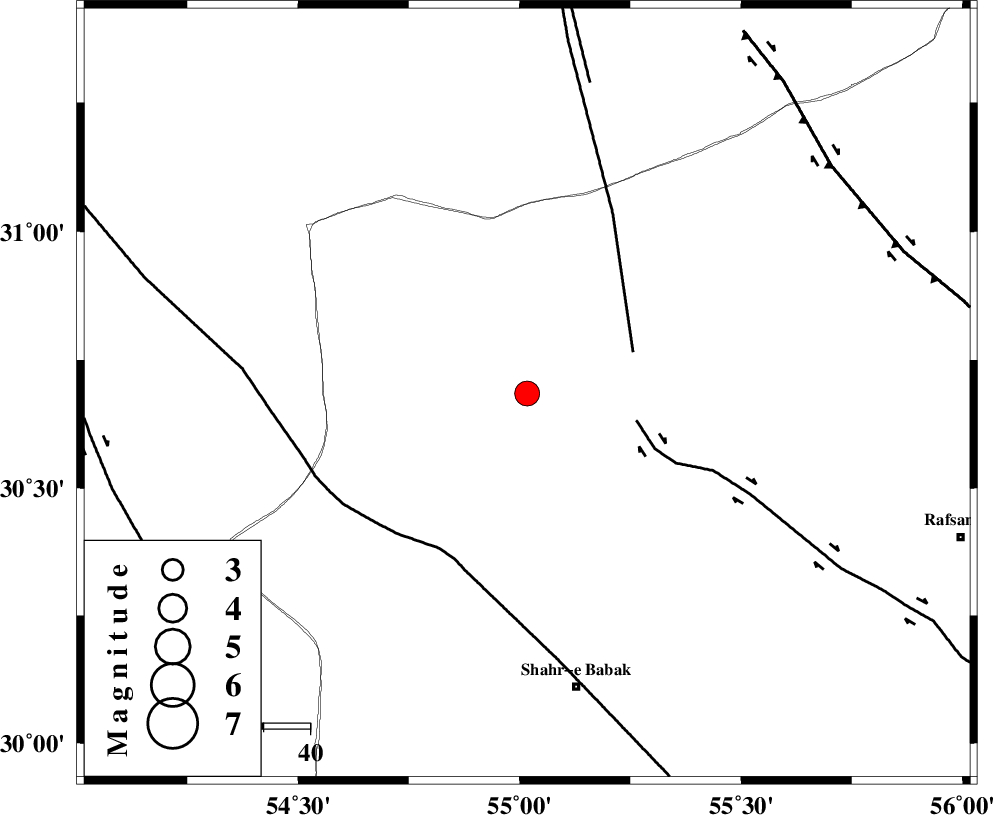

| Location | Lat:30.684 Lon: 55.017 |
| Region | Kerman Province, 65 km North-West of Shahr-e babak |
Nearest Cities |
|
| 12 km East of Dehaj, Kerman Province | |
| 18 km North of Jozam, Kerman Province | |
| 32 km South West of Anar, Kerman Province | |
| 33 km North East of Khabar, Kerman Province | |
| 36 km South West of Hoseiynabad-e amin, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| RAFSANJAN_F (Length: 129 km) , Distance to epicenter: 24 km | |
| ANAR_F (Length: 127 km) , Distance to epicenter: 25 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 39 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114700 | IIEES | KRBR | E | 1091.8 | 0.45 | 2017-04-06 21:48:12 | 2017-04-08 06:36:00 | n |
| 114701 | IIEES | KRBR | N | 794.6 | 0.32 | 2017-04-06 21:48:13 | 2017-04-08 06:36:00 | n |
| 114702 | IIEES | YZKH | E | 324 | 0.45 | 2017-04-06 21:48:13 | 2017-04-08 06:36:00 | n |
| 114703 | IIEES | YZKH | N | 292.3 | 0.33 | 2017-04-06 21:48:16 | 2017-04-08 06:36:00 | n |
| 114704 | IIEES | NASN | N | 93.2 | 0.5 | 2017-04-06 21:48:51 | 2017-04-08 06:36:00 | n |
| 114705 | IIEES | BNDS | N | 62.8 | 0.51 | 2017-04-06 21:49:12 | 2017-04-08 06:36:00 | n |
| 114706 | IIEES | BNDS | E | 68 | 0.17 | 2017-04-06 21:49:14 | 2017-04-08 06:36:00 | n |
| 114707 | IIEES | TABS | N | 74.1 | 0.77 | 2017-04-06 21:49:17 | 2017-04-08 06:36:00 | n |
| 114708 | IIEES | BSRN | E | 40.6 | 0.77 | 2017-04-06 21:49:23 | 2017-04-08 06:36:00 | n |
| 114709 | IIEES | GHVR | N | 18.8 | 0.56 | 2017-04-06 21:49:58 | 2017-04-08 06:36:00 | n |
| 114710 | IIEES | GHVR | E | 18.9 | 0.56 | 2017-04-06 21:50:07 | 2017-04-08 06:36:00 | n |
| 114711 | IIEES | SHRO | N | 17.3 | 0.71 | 2017-04-06 21:50:12 | 2017-04-08 06:36:00 | n |
| 114712 | IIEES | SHRO | E | 13.6 | 0.27 | 2017-04-06 21:50:14 | 2017-04-08 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-04-06 21:47:44 | -0.86 | y | 185 | 114 | |||
| IIEES | KRBR | E | Sg | E | 2017-04-06 21:48:07 | 0.2 | y | 185 | 114 | |||
| IIEES | YZKH | Z | Pg | E | 2017-04-06 21:47:46 | -0.09 | y | 193 | 348 | |||
| IIEES | YZKH | E | Sg | E | 2017-04-06 21:48:09 | -0.1 | y | 193 | 348 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-06 21:48:02 | 0.65 | y | 314 | 319 | |||
| IIEES | BNDS | Z | Pn | E | 2017-04-06 21:48:10 | 0.97 | y | 381 | 163 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-06 21:48:10 | 0.57 | y | 384 | 31 | |||
| IIEES | AHRM | Z | Pn | E | 2017-04-06 21:48:12 | -0.44 | y | 412 | 242 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-06 21:48:13 | -0.14 | y | 416 | 69 | |||
| IIEES | GHVR | Z | Pn | E | 2017-04-06 21:48:30 | 0.35 | y | 550 | 321 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-06 21:48:33 | -0.84 | y | 584 | 307 | |||
| IIEES | SHRT | Z | Pn | E | 2017-04-06 21:48:35 | -0.35 | y | 596 | 55 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-06 21:48:36 | -0.1 | y | 598 | 9 | |||
| IIEES | DAMV | Z | Pn | E | 2017-04-06 21:48:39 | 0.22 | y | 618 | 333 | |||
| IIEES | ASAO | Z | Pn | E | 2017-04-06 21:48:41 | 0.36 | y | 635 | 314 | |||
| IIEES | CHTH | Z | Pn | E | 2017-04-06 21:48:47 | -0.05 | y | 683 | 329 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-06 21:48:59 | 0.16 | y | 780 | 7 | |||
| IIEES | SNGE | Z | Pn | E | 2017-04-06 21:49:10 | 0.05 | y | 868 | 306 | |||
| IIEES | ILBA | Z | Pn | E | 2017-04-06 21:49:11 | -1.39 | y | 892 | 294 | |||
