Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-04-22 07:40:23.7 |
| Date & Time (Local) | 1396/2/2 12:10:23.7 |

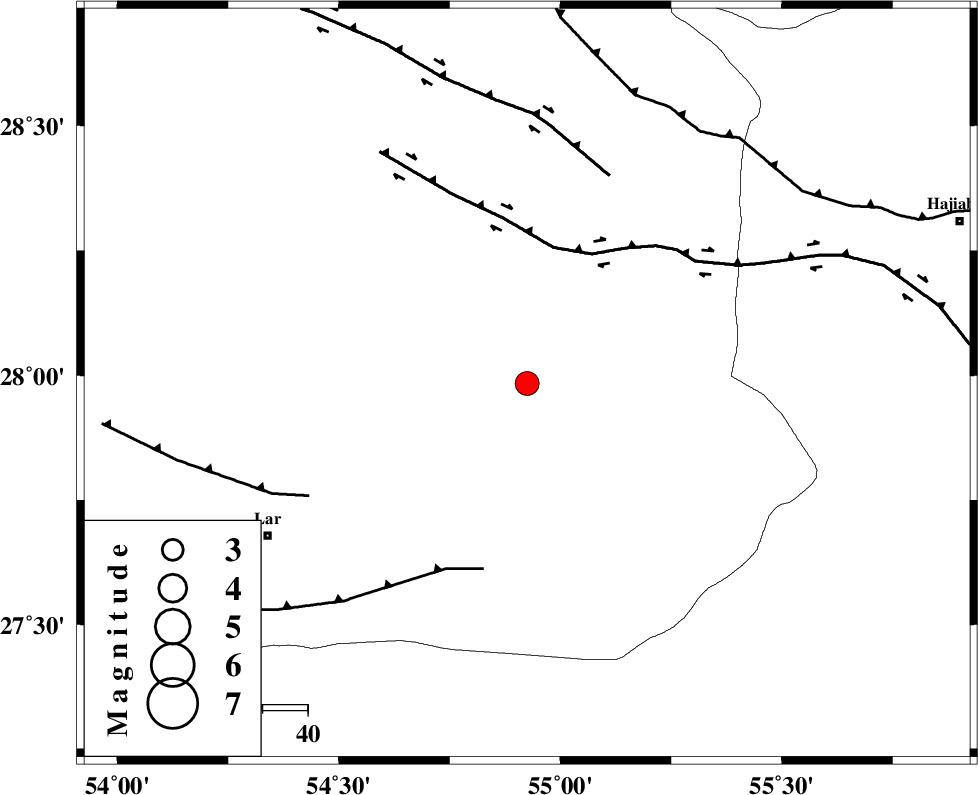

| Location | Lat:27.984 Lon: 54.925 |
| Region | Fars Province, 67 km North-East of Lar |
Nearest Cities |
|
| 35 km South West of Fadami, Fars Province | |
| 45 km South West of Doborji, Fars Province | |
| 51 km North West of Darz, Fars Province | |
| 51 km North East of Dehkuyeh, Fars Province | |
| 54 km South West of Rostaq, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 31 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 42 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 50 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115269 | IIEES | GHIR | N | 352.4 | 0.49 | 2017-04-22 07:41:23 | 2017-04-22 08:29:00 | n |
| 115270 | IIEES | GHIR | E | 364.6 | 0.55 | 2017-04-22 07:41:29 | 2017-04-22 08:29:00 | n |
| 115271 | IIEES | AHRM | N | 54.4 | 0.59 | 2017-04-22 07:42:17 | 2017-04-22 08:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-04-22 07:40:46 | -0.04 | y | 139 | 118 | |||
| IIEES | GHIR | Z | Pg | E | 2017-04-22 07:40:55 | -0.29 | y | 193 | 280 | |||
| IIEES | KRBR | Z | Pn | E | 2017-04-22 07:41:07 | 0.25 | y | 285 | 39 | |||
| IIEES | KRBR | N | Sg | E | 2017-04-22 07:41:44 | -0.1 | y | 285 | 39 | |||
| IIEES | AHRM | Z | Pn | E | 2017-04-22 07:41:17 | 0.32 | y | 369 | 286 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-22 07:41:32 | 0.07 | y | 489 | 356 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-22 07:41:45 | -0.2 | y | 599 | 42 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-22 07:41:53 | -0.02 | y | 662 | 18 | |||
