Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-05-18 02:14:19.4 |
| Date & Time (Local) | 1396/2/28 06:44:19.4 |
| Location | Lat:31.811 Lon: 51.037 |
| Region | Chaharmahal Bakhtiari Province, 29 km South-West of Borujen |
Nearest Cities |
|
| 13 km West of Gandoman, Chaharmahal Bakhtiari Province | |
| 13 km South of Baladaji, Chaharmahal Bakhtiari Province | |
| 26 km South West of Faradonbeh, Chaharmahal Bakhtiari Province | |
| 29 km North of Aluni, Chaharmahal Bakhtiari Province | |
| 29 km South West of Borujen, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |

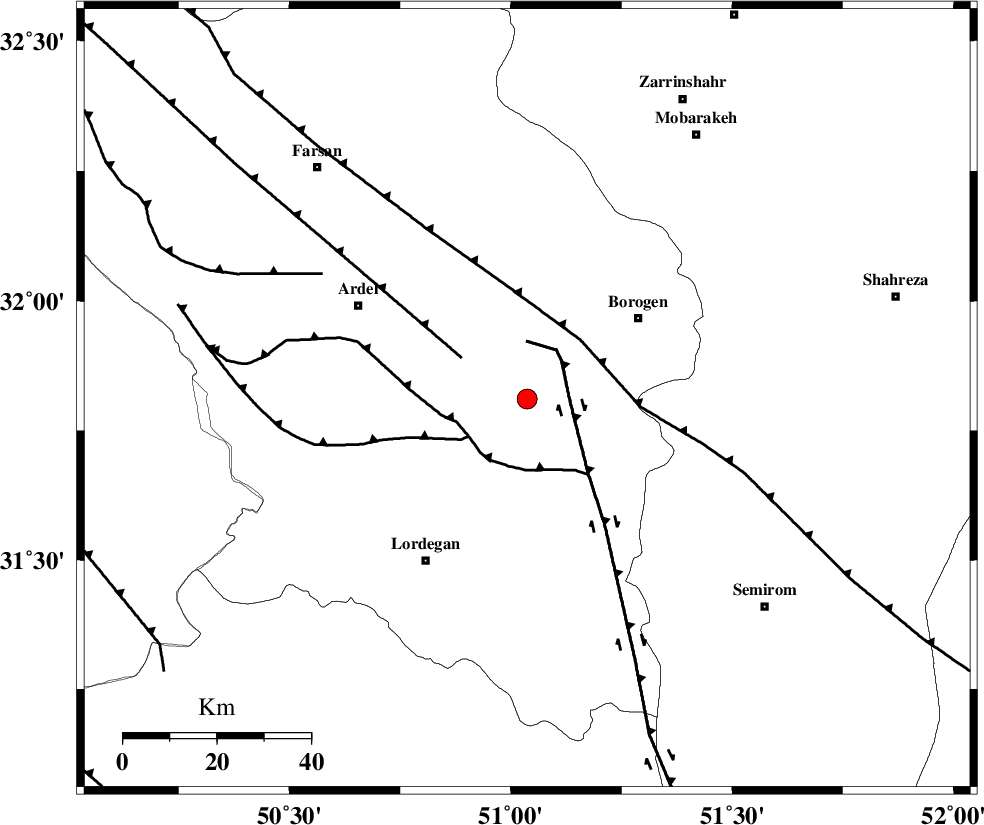

Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 9 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 15 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 15 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116094 | IIEES | KHMZ | N | 64.7 | 0.83 | 2017-05-18 02:15:30 | 2017-05-20 07:31:00 | n |
| 116095 | IIEES | KHMZ | E | 58.4 | 0.31 | 2017-05-18 02:15:32 | 2017-05-20 07:31:00 | n |
| 116096 | IIEES | GHVR | E | 31 | 0.47 | 2017-05-18 02:15:54 | 2017-05-20 07:31:00 | n |
| 116097 | IIEES | GHVR | N | 30.3 | 0.63 | 2017-05-18 02:16:01 | 2017-05-20 07:31:00 | n |
| 116098 | IIEES | ASAO | E | 22.3 | 0.4 | 2017-05-18 02:15:51 | 2017-05-20 07:31:00 | n |
| 116099 | IIEES | ASAO | N | 37.1 | 0.56 | 2017-05-18 02:15:56 | 2017-05-20 07:31:00 | n |
| 116100 | IIEES | YZKH | N | 8 | 0.59 | 2017-05-18 02:16:11 | 2017-05-20 07:31:00 | n |
| 116101 | IIEES | DAMV | E | 9.5 | 0.81 | 2017-05-18 02:16:24 | 2017-05-20 07:31:00 | n |
| 116102 | IIEES | DAMV | N | 10.1 | 0.57 | 2017-05-18 02:16:32 | 2017-05-20 07:31:00 | n |
| 116103 | IIEES | SNGE | E | 5.5 | 0.59 | 2017-05-18 02:16:29 | 2017-05-20 07:31:00 | n |
| 116104 | IIEES | SNGE | N | 7.4 | 0.68 | 2017-05-18 02:16:51 | 2017-05-20 07:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2017-05-18 02:14:51 | -0.43 | y | 200 | 56 | |||
| IIEES | NASN | E | Sg | E | 2017-05-18 02:15:16 | 0.1 | y | 200 | 56 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-05-18 02:14:56 | 0.05 | y | 236 | 335 | |||
| IIEES | KHMZ | N | Sg | E | 2017-05-18 02:15:26 | -0.07 | y | 236 | 335 | |||
| IIEES | GHVR | Z | Pn | E | 2017-05-18 02:15:04 | 0.01 | y | 297 | 4 | |||
| IIEES | ASAO | Z | Pn | E | 2017-05-18 02:15:07 | 0.47 | y | 318 | 343 | |||
| IIEES | YZKH | Z | Pn | E | 2017-05-18 02:15:09 | 0.19 | y | 342 | 78 | |||
| IIEES | DAMV | Z | Pn | E | 2017-05-18 02:15:20 | -0.15 | y | 432 | 11 | |||
| IIEES | ILBA | Z | Pn | E | 2017-05-18 02:15:28 | -0.27 | y | 495 | 295 | |||
| IIEES | SNGE | Z | Pn | E | 2017-05-18 02:15:27 | -1.89 | n | 4 | 500 | 318 | ||
| IIEES | TABS | Z | Pn | E | 2017-05-18 02:15:42 | 0.08 | y | 605 | 69 | |||
