Magnitude |
:3.2 |
| Date & Time (UTC) | 2017-06-04 13:04:17.0 |
| Date & Time (Local) | 1396/3/14 17:34:17.0 |
| Location | Lat:30.592 Lon: 50.659 |
| Region | Kohkiluieh va boyerahmad Province, 24 km South of Dehdasht |
Nearest Cities |
|
| 24 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 29 km North West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 35 km East of Mansuriyeh, Khoozestan Province | |
| 35 km South of Savari, Kohkiluieh va boyerahmad Province | |
| 40 km East of Behbahan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |

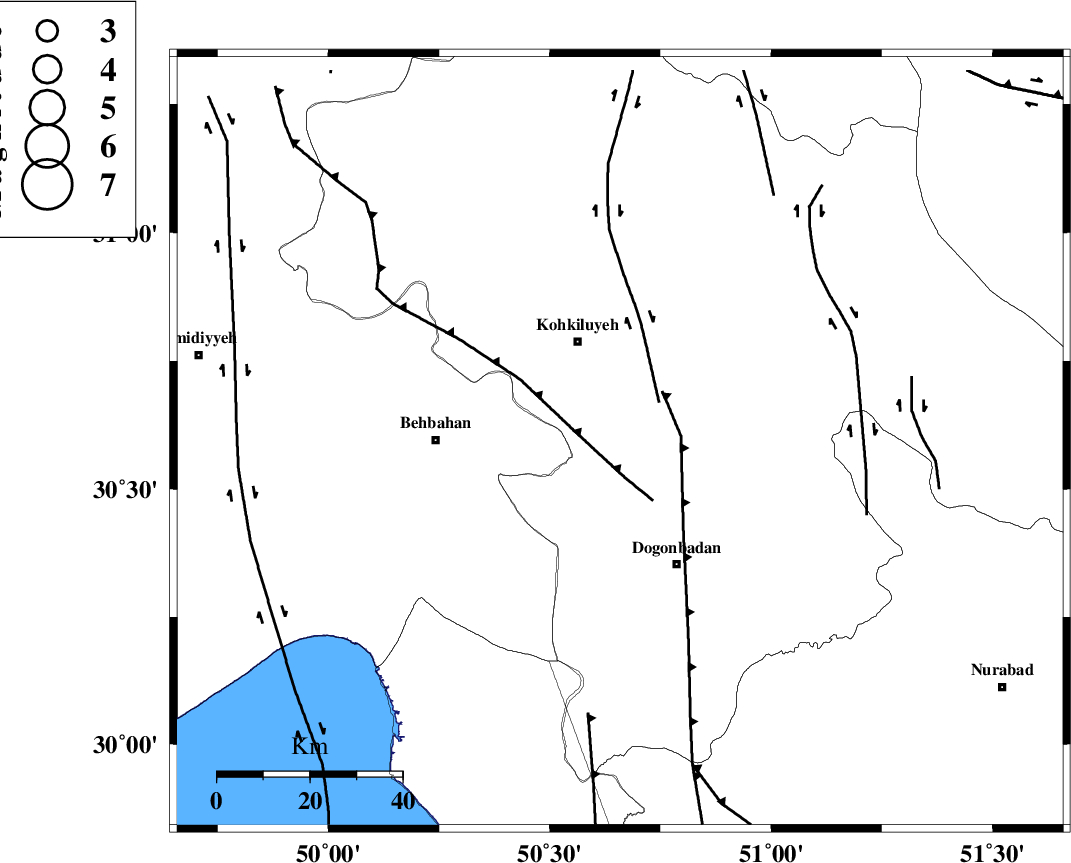

Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 1 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 41 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 57 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116538 | IIEES | AHRM | N | 219.9 | 0.62 | 2017-06-04 13:05:20 | 2017-06-06 09:45:00 | n |
| 116539 | IIEES | AHRM | E | 171.8 | 0.49 | 2017-06-04 13:05:21 | 2017-06-06 09:45:00 | n |
| 116540 | IIEES | GHIR | N | 53 | 0.49 | 2017-06-04 13:06:04 | 2017-06-06 09:45:00 | n |
| 116541 | IIEES | GHIR | E | 49.1 | 0.58 | 2017-06-04 13:06:24 | 2017-06-06 09:45:00 | n |
| 116542 | IIEES | YZKH | E | 26.4 | 0.8 | 2017-06-04 13:06:07 | 2017-06-06 09:45:00 | n |
| 116543 | IIEES | YZKH | N | 22.1 | 0.51 | 2017-06-04 13:06:07 | 2017-06-06 09:45:00 | n |
| 116544 | IIEES | GHVR | E | 24.7 | 0 | 2017-06-04 13:06:08 | 2017-06-06 09:45:00 | n |
| 116545 | IIEES | GHVR | N | 20.5 | 0.56 | 2017-06-04 13:06:17 | 2017-06-06 09:45:00 | n |
| 116546 | IIEES | KRBR | E | 12.4 | 0.34 | 2017-06-04 13:06:44 | 2017-06-06 09:45:00 | n |
| 116547 | IIEES | KRBR | N | 9 | 0.6 | 2017-06-04 13:06:47 | 2017-06-06 09:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2017-06-04 13:04:49 | 0.51 | y | 201 | 162 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-04 13:05:04 | 0.35 | y | 318 | 39 | |||
| IIEES | GHIR | Z | Pn | E | 2017-06-04 13:05:06 | -0.93 | y | 341 | 138 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-06-04 13:05:08 | 0.11 | y | 355 | 350 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-04 13:05:17 | 0.29 | y | 424 | 61 | |||
| IIEES | GHVR | Z | Pn | E | 2017-06-04 13:05:18 | 0.25 | y | 435 | 7 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-04 13:05:20 | 0.55 | y | 443 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-04 13:05:35 | -0.8 | y | 572 | 12 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-04 13:05:37 | -0.06 | y | 588 | 329 | |||
| IIEES | KRBR | Z | Pn | E | 2017-06-04 13:05:38 | 0.64 | y | 591 | 95 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-04 13:05:37 | -0.84 | y | 591 | 4 | |||
| IIEES | BNDS | Z | Pn | E | 2017-06-04 13:05:44 | -0.12 | y | 643 | 122 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-04 13:05:51 | 0.02 | y | 697 | 59 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-04 13:06:01 | -0.45 | y | 781 | 38 | |||
| IIEES | BSRN | Z | Pn | E | 2017-06-04 13:06:06 | -0.11 | y | 820 | 77 | |||
| IIEES | MRVT | Z | Pn | E | 2017-06-04 13:06:19 | -0.21 | y | 930 | 31 | |||
