Magnitude |
:3 |
| Date & Time (UTC) | 2017-06-19 01:43:12.9 |
| Date & Time (Local) | 1396/3/29 06:13:12.9 |

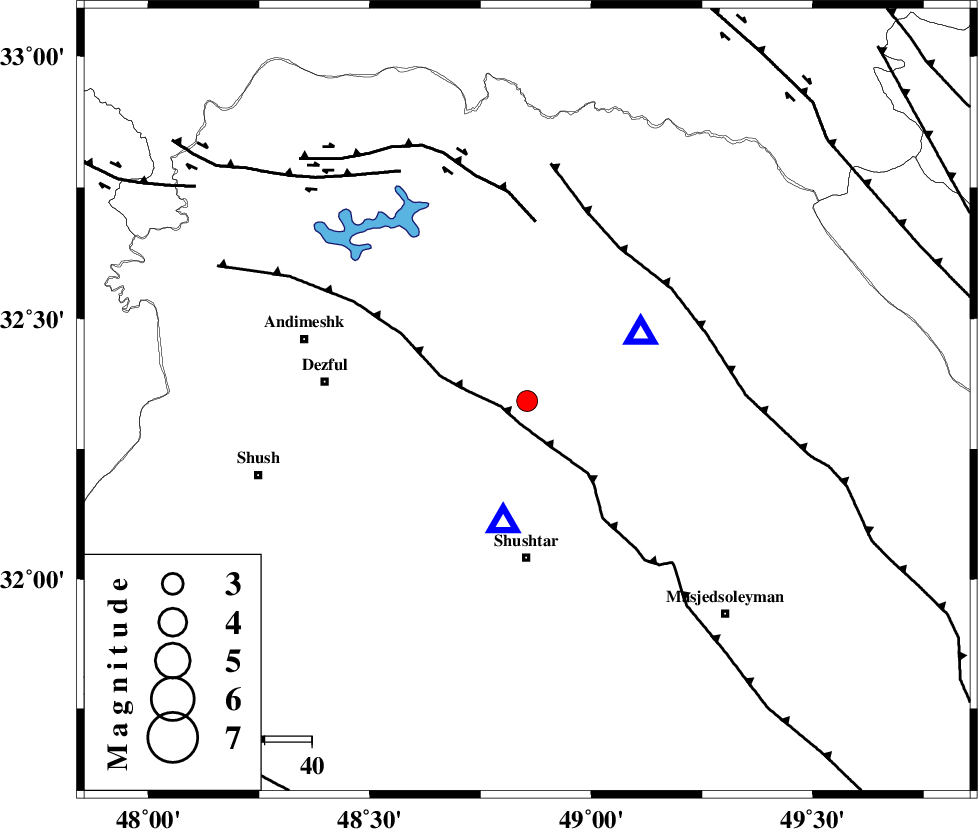

| Location | Lat:32.342 Lon: 48.855 |
| Region | Khoozestan Province, 24 km -West of Lali |
Nearest Cities |
|
| 12 km North of Gatvand, Khoozestan Province | |
| 16 km North of Samaleh, Khoozestan Province | |
| 18 km South of Sardasht, Khoozestan Province | |
| 19 km East of Mahur berenji, Khoozestan Province | |
| 24 km West of Lali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 5 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 38 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 38 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116841 | IIEES | KHMZ | N | 153.4 | 0.43 | 2017-06-19 01:44:08 | 2017-06-19 05:57:00 | n |
| 116842 | IIEES | KHMZ | E | 165.9 | 0.49 | 2017-06-19 01:44:10 | 2017-06-19 05:57:00 | n |
| 116843 | IIEES | ASAO | E | 66.6 | 0.36 | 2017-06-19 01:44:29 | 2017-06-19 05:57:00 | n |
| 116844 | IIEES | ASAO | N | 128.3 | 0.8 | 2017-06-19 01:44:34 | 2017-06-19 05:57:00 | n |
| 116845 | IIEES | GHVR | E | 64.8 | 0.38 | 2017-06-19 01:44:47 | 2017-06-19 05:57:00 | n |
| 116846 | IIEES | GHVR | N | 32 | 0.58 | 2017-06-19 01:44:52 | 2017-06-19 05:57:00 | n |
| 116847 | IIEES | NASN | E | 15.7 | 0.51 | 2017-06-19 01:45:06 | 2017-06-19 05:57:00 | n |
| 116848 | IIEES | NASN | N | 16.1 | 0.58 | 2017-06-19 01:45:12 | 2017-06-19 05:57:00 | n |
| 116849 | IIEES | THKV | E | 16.1 | 0.58 | 2017-06-19 01:45:26 | 2017-06-19 05:57:00 | n |
| 116850 | IIEES | THKV | N | 14.5 | 0.58 | 2017-06-19 01:45:28 | 2017-06-19 05:57:00 | n |
| 116851 | IIEES | CHTH | E | 10.3 | 0.78 | 2017-06-19 01:45:26 | 2017-06-19 05:57:00 | n |
| 116852 | IIEES | DAMV | N | 13.6 | 0.63 | 2017-06-19 01:45:31 | 2017-06-19 05:57:00 | n |
| 116853 | IIEES | DAMV | E | 16.5 | 0.32 | 2017-06-19 01:45:34 | 2017-06-19 05:57:00 | n |
| 116854 | IIEES | YZKH | E | 4.7 | 0.66 | 2017-06-19 01:45:52 | 2017-06-19 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-06-19 01:43:43 | 0.05 | y | 186 | 33 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-19 01:43:54 | 0.12 | y | 268 | 24 | |||
| IIEES | ASAO | E | Sg | E | 2017-06-19 01:44:28 | -0.19 | y | 268 | 24 | |||
| IIEES | ILBA | Z | Pn | E | 2017-06-19 01:43:55 | -0.44 | y | 285 | 301 | |||
| IIEES | GHVR | Z | Pn | E | 2017-06-19 01:44:01 | 0.32 | y | 325 | 43 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-19 01:44:02 | 0.45 | y | 336 | 336 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-19 01:44:07 | 0.22 | y | 375 | 81 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-19 01:44:15 | 0.26 | y | 438 | 25 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-19 01:44:16 | -0.04 | y | 448 | 27 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-19 01:44:18 | -0.31 | y | 465 | 37 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-19 01:44:20 | 0.08 | y | 480 | 358 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-19 01:44:27 | -0.31 | y | 540 | 88 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-19 01:44:56 | -0.61 | y | 775 | 56 | |||
