Magnitude |
:4.4 |
| Date & Time (UTC) | 2017-06-22 02:00:19.7 |
| Date & Time (Local) | 1396/4/1 06:30:19.7 |

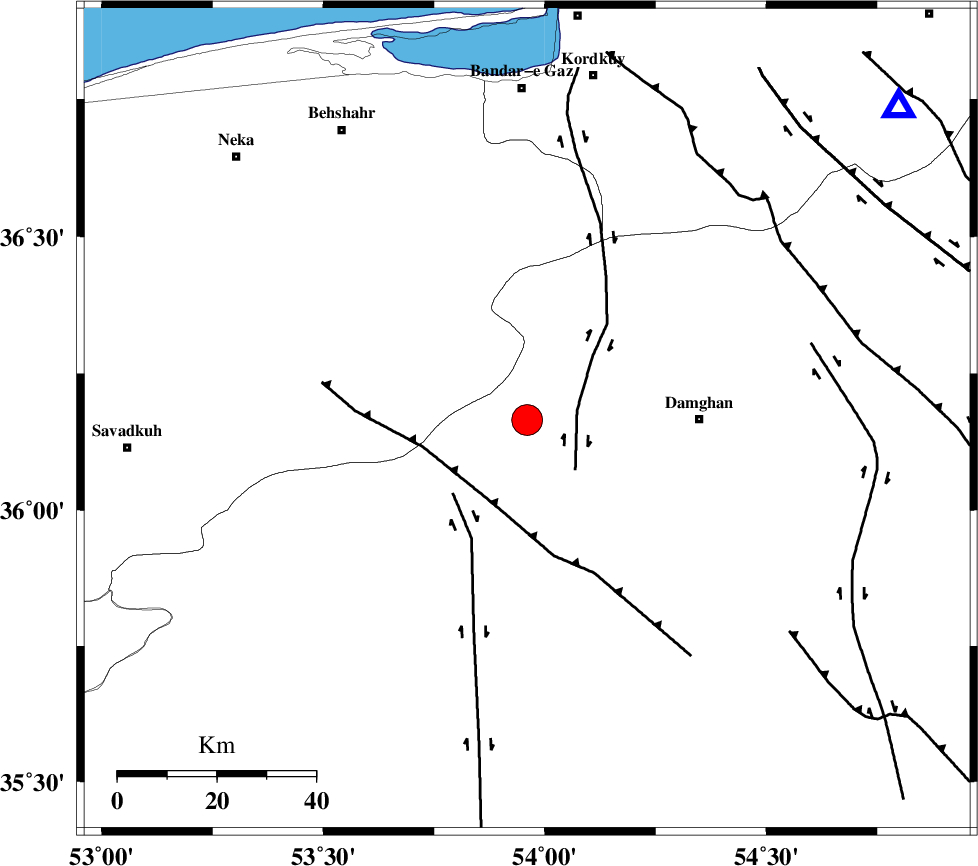

| Location | Lat:36.165 Lon: 53.96 |
| Region | Semnan Province, 35 km -West of Damghan |
Nearest Cities |
|
| 19 km North of Darvar, Semnan Province | |
| 21 km North West of Seydabad, Semnan Province | |
| 23 km North West of Amirabad, Semnan Province | |
| 24 km East of Talma darreh, Mazandaran Province | |
| 35 km West of Damghan, Semnan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 2 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 9 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 16 km | |
| Number of Phases | 25 |
| RMS | 0.6 |
| Number of Stations | 23 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116913 | IIEES | DAMV | N | 3177.6 | 0.59 | 2017-06-22 02:01:18 | 2017-06-24 06:01:00 | n |
| 116914 | IIEES | DAMV | E | 3666.5 | 0.59 | 2017-06-22 02:01:18 | 2017-06-24 06:01:00 | n |
| 116915 | IIEES | THKV | N | 1332.7 | 0.63 | 2017-06-22 02:01:45 | 2017-06-24 06:01:00 | n |
| 116916 | IIEES | THKV | E | 2276.4 | 0.63 | 2017-06-22 02:01:50 | 2017-06-24 06:01:00 | n |
| 116917 | IIEES | GHVR | E | 3088.3 | 0.57 | 2017-06-22 02:01:53 | 2017-06-24 06:01:00 | n |
| 116918 | IIEES | GHVR | N | 1653.5 | 0.47 | 2017-06-22 02:01:54 | 2017-06-24 06:01:00 | n |
| 116919 | IIEES | GIDE | N | 856.9 | 0.41 | 2017-06-22 02:02:11 | 2017-06-24 06:01:00 | n |
| 116920 | IIEES | GIDE | E | 932.4 | 0.5 | 2017-06-22 02:02:13 | 2017-06-24 06:01:00 | n |
| 116921 | IIEES | NASN | E | 313 | 0.85 | 2017-06-22 02:02:30 | 2017-06-24 06:01:00 | n |
| 116922 | IIEES | ASAO | E | 383.8 | 0.62 | 2017-06-22 02:02:16 | 2017-06-24 06:01:00 | n |
| 116923 | IIEES | ASAO | N | 422.3 | 0.62 | 2017-06-22 02:02:28 | 2017-06-24 06:01:00 | n |
| 116924 | IIEES | TABS | N | 360.9 | 0.67 | 2017-06-22 02:02:33 | 2017-06-24 06:01:00 | n |
| 116925 | IIEES | YZKH | E | 240.9 | 0.89 | 2017-06-22 02:02:40 | 2017-06-24 06:01:00 | n |
| 116926 | IIEES | KHMZ | E | 379.9 | 0.49 | 2017-06-22 02:02:36 | 2017-06-24 06:01:00 | n |
| 116927 | IIEES | KHMZ | N | 217.5 | 0.51 | 2017-06-22 02:02:38 | 2017-06-24 06:01:00 | n |
| 116928 | IIEES | ZNJK | N | 232.3 | 0.81 | 2017-06-22 02:02:35 | 2017-06-24 06:01:00 | n |
| 116929 | IIEES | ZNJK | E | 144.2 | 0.58 | 2017-06-22 02:02:38 | 2017-06-24 06:01:00 | n |
| 116930 | IIEES | GRMI | N | 108.9 | 0.51 | 2017-06-22 02:02:45 | 2017-06-24 06:01:00 | n |
| 116931 | IIEES | GRMI | E | 172.6 | 0.51 | 2017-06-22 02:02:46 | 2017-06-24 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2017-06-22 02:00:49 | -0.52 | y | 186 | 95 | |||
| IIEES | SHRO | N | Sg | E | 2017-06-22 02:01:13 | 0.32 | y | 186 | 95 | |||
| IIEES | DAMV | Z | Pg | E | 2017-06-22 02:00:48 | -2.04 | n | 4 | 189 | 252 | ||
| IIEES | MRVT | Z | Pn | E | 2017-06-22 02:00:58 | -0.05 | y | 252 | 48 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-22 02:00:59 | 0.46 | y | 257 | 264 | |||
| IIEES | CHTH | N | Sg | E | 2017-06-22 02:01:32 | 0.12 | y | 257 | 264 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-22 02:01:03 | 1.52 | y | 279 | 265 | |||
| IIEES | GHVR | Z | Pn | E | 2017-06-22 02:01:05 | -0.25 | y | 310 | 234 | |||
| IIEES | BJRD | Z | Pn | E | 2017-06-22 02:01:11 | 0.5 | y | 351 | 60 | |||
| IIEES | GIDE | Z | Pn | E | 2017-06-22 02:01:13 | -0.47 | y | 372 | 284 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-22 02:01:14 | -0.86 | y | 388 | 196 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-22 02:01:17 | -0.07 | y | 400 | 245 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-22 02:01:17 | 0.25 | y | 401 | 133 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-22 02:01:19 | -0.29 | y | 423 | 172 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-06-22 02:01:24 | 0.61 | y | 453 | 235 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-22 02:01:26 | -0.01 | y | 476 | 278 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-22 02:01:43 | -0.17 | y | 611 | 261 | |||
| IIEES | GRMI | Z | Pn | E | 2017-06-22 02:01:41 | -1.78 | y | 611 | 300 | |||
| IIEES | SHRT | Z | Pn | E | 2017-06-22 02:01:47 | -0.08 | y | 642 | 114 | |||
| IIEES | BSRN | Z | Pn | E | 2017-06-22 02:01:50 | 0.04 | y | 666 | 133 | |||
| IIEES | KRBR | Z | Pn | E | 2017-06-22 02:01:59 | 0.35 | y | 734 | 158 | |||
| IIEES | ILBA | Z | Pn | E | 2017-06-22 02:02:01 | -0.41 | y | 762 | 251 | |||
| IIEES | AHRM | Z | Pn | E | 2017-06-22 02:02:12 | -0.26 | y | 847 | 198 | |||
| IIEES | GHIR | Z | Pn | E | 2017-06-22 02:02:16 | 0.1 | y | 878 | 186 | |||
| IIEES | MAKU | Z | Pn | E | 2017-06-22 02:02:17 | -0.41 | y | 890 | 296 | |||
