Magnitude |
:3.8 |
| Date & Time (UTC) | 2017-06-22 03:54:04.4 |
| Date & Time (Local) | 1396/4/1 08:24:04.4 |

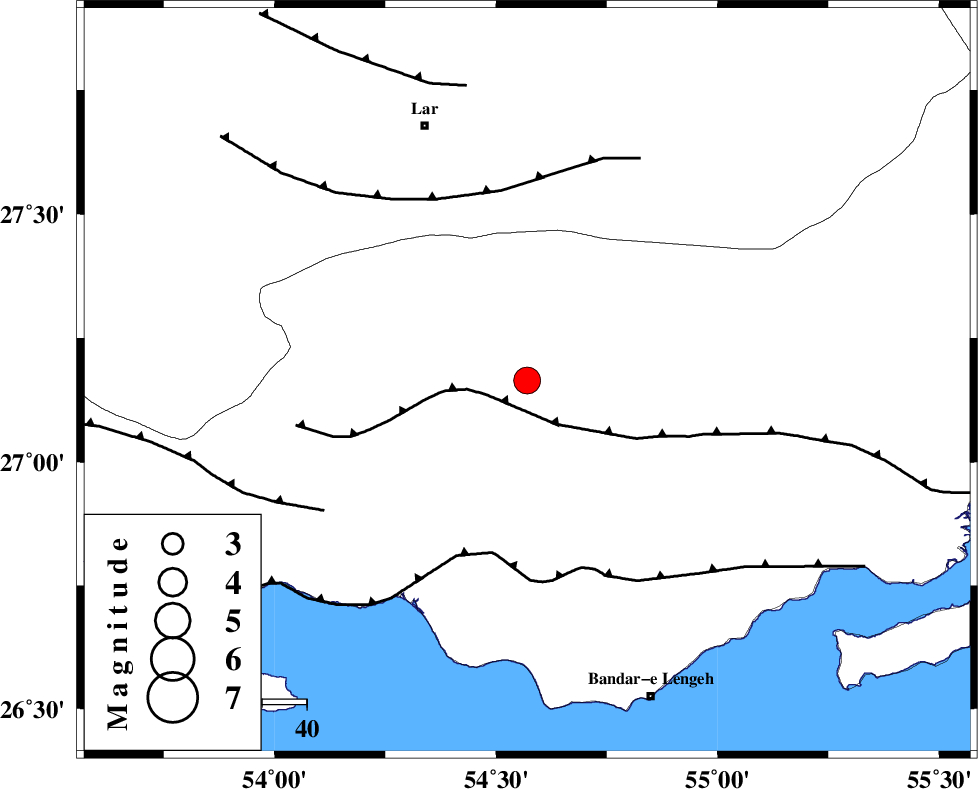

| Location | Lat:27.165 Lon: 54.57 |
| Region | Hormozgan Province, 21 km -East of Bastak |
Nearest Cities |
|
| 21 km East of Bastak, Hormozgan Province | |
| 33 km North East of Jenah, Hormozgan Province | |
| 62 km South East of Lar, Fars Province | |
| 62 km South East of Latifi, Fars Province | |
| 65 km South East of Bagh, Fars Province | |
| Depth | 26 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 10 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 39 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 43 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116932 | IIEES | BNDS | N | 1922.2 | 0.38 | 2017-06-22 03:54:54 | 2017-06-24 06:01:00 | n |
| 116933 | IIEES | BNDS | E | 2182.9 | 0.61 | 2017-06-22 03:54:56 | 2017-06-24 06:01:00 | n |
| 116934 | IIEES | GHIR | N | 902.6 | 0.44 | 2017-06-22 03:55:05 | 2017-06-24 06:01:00 | n |
| 116935 | IIEES | GHIR | E | 788.9 | 0.44 | 2017-06-22 03:55:09 | 2017-06-24 06:01:00 | n |
| 116936 | IIEES | AHRM | N | 152.5 | 0.51 | 2017-06-22 03:56:09 | 2017-06-24 06:01:00 | n |
| 116937 | IIEES | AHRM | E | 100.4 | 0.51 | 2017-06-22 03:56:11 | 2017-06-24 06:01:00 | n |
| 116938 | IIEES | KRBR | N | 160.4 | 0.45 | 2017-06-22 03:55:57 | 2017-06-24 06:01:00 | n |
| 116939 | IIEES | KRBR | E | 185.3 | 0.54 | 2017-06-22 03:56:12 | 2017-06-24 06:01:00 | n |
| 116940 | IIEES | YZKH | E | 20.4 | 0.78 | 2017-06-22 03:56:45 | 2017-06-24 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-06-22 03:54:30 | -0.01 | y | 161 | 80 | |||
| IIEES | GHIR | Z | Pn | E | 2017-06-22 03:54:36 | 0.19 | y | 199 | 309 | |||
| IIEES | AHRM | Z | Pn | E | 2017-06-22 03:55:10 | 13.38 | n | 4 | 373 | 301 | ||
| IIEES | KRBR | Z | Pn | E | 2017-06-22 03:54:58 | 0.54 | y | 379 | 34 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-22 03:55:23 | 0.18 | y | 579 | 0 | |||
| IIEES | CHBR | Z | Pn | E | 2017-06-22 03:55:27 | -0.17 | y | 615 | 105 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-22 03:55:31 | -0.43 | y | 647 | 345 | |||
| IIEES | BSRN | Z | Pn | E | 2017-06-22 03:55:36 | -0.1 | y | 691 | 39 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-22 03:55:44 | -0.43 | y | 759 | 18 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-06-22 03:55:56 | -0.18 | y | 852 | 330 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-22 03:56:13 | -0.77 | y | 990 | 8 | |||
