Magnitude |
:3.1 |
| Date & Time (UTC) | 2017-06-23 19:35:32.8 |
| Date & Time (Local) | 1396/4/3 00:05:32.8 |

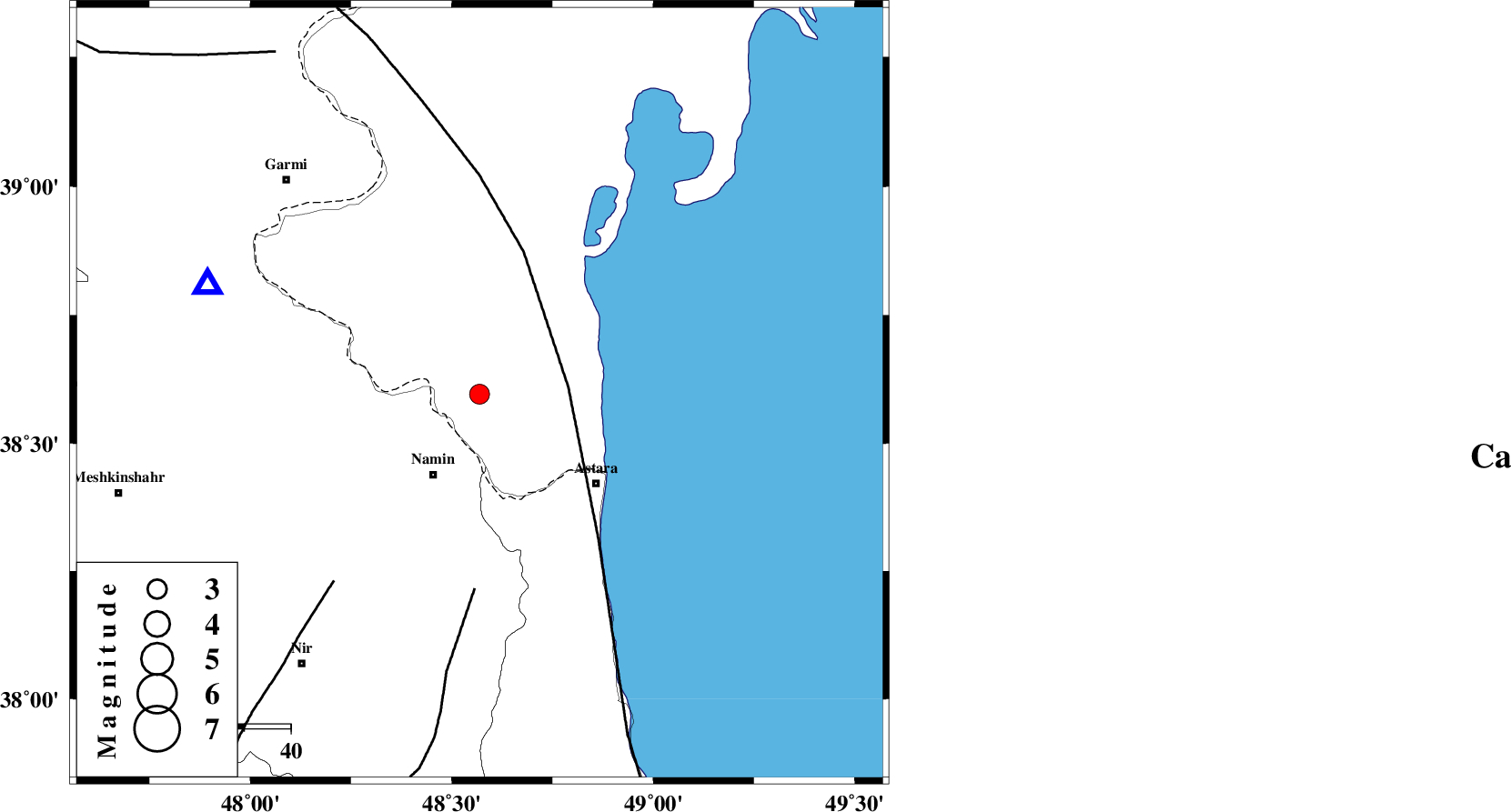

| Location | Lat:38.596 Lon: 48.569 |
| Region | Azerbaijan, 20 km North-East of Namin |
Nearest Cities |
|
| 15 km North East of Anbaran, Ardebil Province | |
| 19 km North East of Lurun, Ardebil Province | |
| 20 km North East of Khaneh zeinian, Ardebil Province | |
| 20 km North East of Namin, Ardebil Province | |
| 25 km North of Kiladeh, Gilan Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 19 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 42 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 51 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116958 | IIEES | GRMI | E | 1800.3 | 0.36 | 2017-06-23 19:35:53 | 2017-06-24 06:01:00 | n |
| 116959 | IIEES | GRMI | N | 1329.1 | 0.24 | 2017-06-23 19:35:55 | 2017-06-24 06:01:00 | n |
| 116960 | IIEES | ZNJK | N | 112.7 | 0.3 | 2017-06-23 19:36:38 | 2017-06-24 06:01:00 | n |
| 116961 | IIEES | ZNJK | E | 96.7 | 0.24 | 2017-06-23 19:36:38 | 2017-06-24 06:01:00 | n |
| 116962 | IIEES | GIDE | E | 111.1 | 0.53 | 2017-06-23 19:36:29 | 2017-06-24 06:01:00 | n |
| 116963 | IIEES | GIDE | N | 115.9 | 0.35 | 2017-06-23 19:36:45 | 2017-06-24 06:01:00 | n |
| 116964 | IIEES | MAKU | E | 45.2 | 0.32 | 2017-06-23 19:37:12 | 2017-06-24 06:01:00 | n |
| 116965 | IIEES | MAKU | N | 41.4 | 0.32 | 2017-06-23 19:37:18 | 2017-06-24 06:01:00 | n |
| 116966 | IIEES | DAMV | E | 9 | 0 | 2017-06-23 19:37:27 | 2017-06-24 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2017-06-23 19:35:44 | 0.01 | y | 63.3 | 292 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-23 19:36:06 | 0.37 | y | 214 | 177 | |||
| IIEES | ZNJK | N | Sg | E | 2017-06-23 19:36:32 | 0.17 | y | 214 | 177 | |||
| IIEES | GIDE | Z | Pn | E | 2017-06-23 19:36:07 | -0.04 | y | 220 | 147 | |||
| IIEES | MAKU | Z | Pn | E | 2017-06-23 19:36:23 | 0.51 | y | 347 | 285 | |||
| IIEES | MAKU | N | Sg | E | 2017-06-23 19:37:07 | -0.23 | y | 347 | 285 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-23 19:36:24 | -0.17 | y | 361 | 145 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-23 19:36:26 | -0.08 | y | 375 | 142 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-23 19:36:29 | -0.67 | y | 404 | 196 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-23 19:36:35 | -0.03 | y | 447 | 136 | |||
