Magnitude |
:3.9 |
| Date & Time (UTC) | 2017-06-24 08:54:26.5 |
| Date & Time (Local) | 1396/4/3 13:24:26.5 |

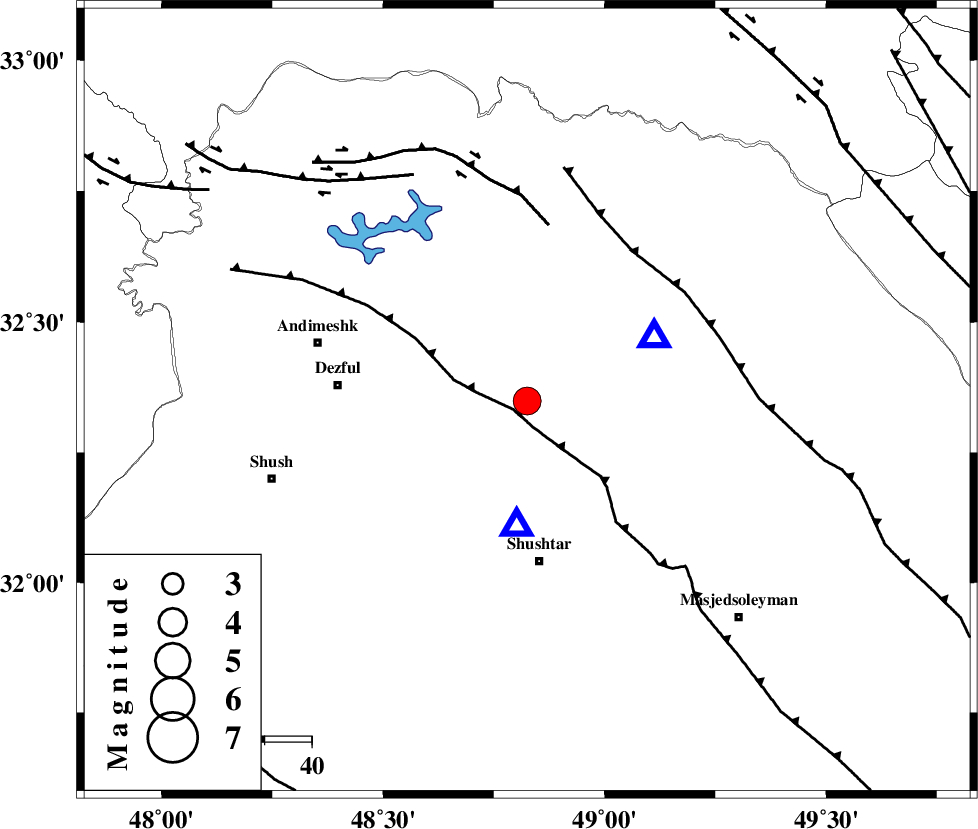

| Location | Lat:32.349 Lon: 48.825 |
| Region | Khoozestan Province, 27 km -West of Lali |
Nearest Cities |
|
| 12 km North of Gatvand, Khoozestan Province | |
| 16 km East of Mahur berenji, Khoozestan Province | |
| 17 km North of Samaleh, Khoozestan Province | |
| 17 km South of Sardasht, Khoozestan Province | |
| 27 km West of Lali, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 3 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 38 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 39 km | |
| Number of Phases | 20 |
| RMS | 0.4 |
| Number of Stations | 19 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116985 | IIEES | KHMZ | E | 1046.8 | 0.63 | 2017-06-24 08:55:22 | 2017-06-24 09:47:00 | n |
| 116986 | IIEES | KHMZ | N | 928.5 | 0.57 | 2017-06-24 08:55:23 | 2017-06-24 09:47:00 | n |
| 116987 | IIEES | ASAO | N | 800.1 | 0.74 | 2017-06-24 08:55:47 | 2017-06-24 09:47:00 | n |
| 116988 | IIEES | ASAO | E | 473.2 | 0.64 | 2017-06-24 08:55:49 | 2017-06-24 09:47:00 | n |
| 116989 | IIEES | ILBA | E | 153.2 | 0.6 | 2017-06-24 08:55:42 | 2017-06-24 09:47:00 | n |
| 116990 | IIEES | GHVR | N | 206 | 0.64 | 2017-06-24 08:56:05 | 2017-06-24 09:47:00 | n |
| 116991 | IIEES | GHVR | E | 415.6 | 0.49 | 2017-06-24 08:56:08 | 2017-06-24 09:47:00 | n |
| 116992 | IIEES | NASN | N | 192.8 | 0.56 | 2017-06-24 08:56:18 | 2017-06-24 09:47:00 | n |
| 116993 | IIEES | NASN | E | 220.5 | 0.39 | 2017-06-24 08:56:21 | 2017-06-24 09:47:00 | n |
| 116994 | IIEES | THKV | E | 95.3 | 0.59 | 2017-06-24 08:56:44 | 2017-06-24 09:47:00 | n |
| 116995 | IIEES | CHTH | E | 63.5 | 0.64 | 2017-06-24 08:56:45 | 2017-06-24 09:47:00 | n |
| 116996 | IIEES | AHRM | N | 298.7 | 0.29 | 2017-06-24 08:56:21 | 2017-06-24 09:47:00 | n |
| 116997 | IIEES | AHRM | E | 148.3 | 0.44 | 2017-06-24 08:56:21 | 2017-06-24 09:47:00 | n |
| 116998 | IIEES | DAMV | E | 77.8 | 0.46 | 2017-06-24 08:56:46 | 2017-06-24 09:47:00 | n |
| 116999 | IIEES | DAMV | N | 86.1 | 0.64 | 2017-06-24 08:56:49 | 2017-06-24 09:47:00 | n |
| 117000 | IIEES | GIDE | N | 77.1 | 0.84 | 2017-06-24 08:57:03 | 2017-06-24 09:47:00 | n |
| 117001 | IIEES | GIDE | E | 63.2 | 0.59 | 2017-06-24 08:57:04 | 2017-06-24 09:47:00 | n |
| 117002 | IIEES | YZKH | N | 42.3 | 0.48 | 2017-06-24 08:57:10 | 2017-06-24 09:47:00 | n |
| 117003 | IIEES | YZKH | E | 36.4 | 0.56 | 2017-06-24 08:57:12 | 2017-06-24 09:47:00 | n |
| 117004 | IIEES | GHIR | E | 59.2 | 0.4 | 2017-06-24 08:56:54 | 2017-06-24 09:47:00 | n |
| 117005 | IIEES | GHIR | N | 72.4 | 0.4 | 2017-06-24 08:56:56 | 2017-06-24 09:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-06-24 08:54:57 | -0.14 | y | 187 | 34 | |||
| IIEES | KHMZ | N | Sg | E | 2017-06-24 08:55:19 | -0.24 | y | 187 | 34 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-24 08:55:08 | 0.78 | y | 268 | 24 | |||
| IIEES | ILBA | Z | Pn | E | 2017-06-24 08:55:08 | -0.43 | y | 283 | 301 | |||
| IIEES | GHVR | Z | Pn | E | 2017-06-24 08:55:15 | 0.84 | y | 326 | 43 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-24 08:55:16 | 0.42 | y | 334 | 336 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-24 08:55:21 | 0.13 | y | 377 | 81 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-24 08:55:29 | 0.27 | y | 439 | 25 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-24 08:55:29 | -0.51 | y | 448 | 28 | |||
| IIEES | AHRM | Z | Pn | E | 2017-06-24 08:55:30 | 0.39 | y | 453 | 148 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-24 08:55:31 | -0.38 | y | 466 | 38 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-24 08:55:33 | -0.15 | y | 480 | 359 | |||
| IIEES | GIDE | Z | Pn | E | 2017-06-24 08:55:38 | 0 | y | 517 | 11 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-24 08:55:41 | -0.28 | y | 543 | 88 | |||
| IIEES | GHIR | Z | Pn | E | 2017-06-24 08:55:48 | -0.57 | y | 602 | 137 | |||
| IIEES | GRMI | Z | Pn | E | 2017-06-24 08:56:03 | -0.35 | y | 722 | 354 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-24 08:56:11 | -0.52 | y | 788 | 77 | |||
| IIEES | KRBR | Z | Pn | E | 2017-06-24 08:56:14 | 0.22 | y | 800 | 107 | |||
| IIEES | MRVT | Z | Pn | E | 2017-06-24 08:56:23 | -0.56 | y | 887 | 46 | |||
| IIEES | SHRT | Z | Pn | E | 2017-06-24 08:56:48 | -0.2 | y | 1081 | 79 | |||
