Magnitude |
:4.3 |
| Date & Time (UTC) | 2017-06-26 23:59:28.1 |
| Date & Time (Local) | 1396/4/6 04:29:28.1 |

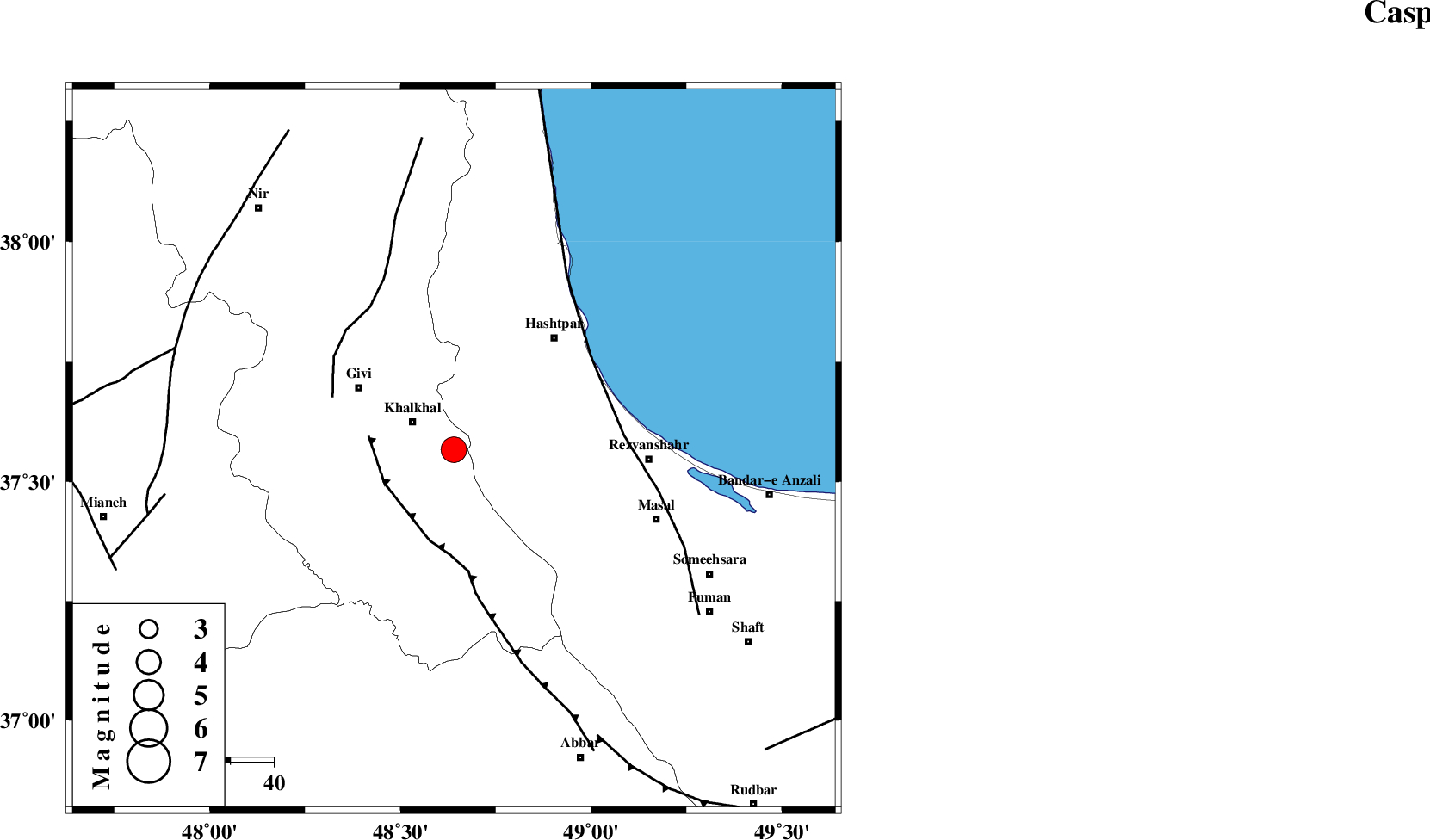

| Location | Lat:37.567 Lon: 48.64 |
| Region | Ardebil Province, 12 km -East of Khalkhal |
Nearest Cities |
|
| 8 km of Khojin, Ardebil Province | |
| 12 km East of Khalkhal, Ardebil Province | |
| 21 km North of Kalur, Ardebil Province | |
| 21 km North West of Ardeh, Gilan Province | |
| 23 km East of Gazaz, Ardebil Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 18 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 31 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 38 km | |
| Number of Phases | 7 |
| RMS | 0.5 |
| Number of Stations | 6 |
| Error in Latitude | >9 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 10.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117119 | IIEES | GIDE | N | 7559 | 0.32 | 2017-06-27 00:00:12 | 2017-06-28 05:03:00 | n |
| 117120 | IIEES | GIDE | E | 5218.4 | 0.52 | 2017-06-27 00:00:17 | 2017-06-28 05:03:00 | n |
| 117121 | IIEES | THKV | N | 1450.7 | 0.72 | 2017-06-27 00:00:49 | 2017-06-28 05:03:00 | n |
| 117122 | IIEES | THKV | E | 791.6 | 0.56 | 2017-06-27 00:00:51 | 2017-06-28 05:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-06-26 23:59:44 | -0.64 | y | 99.5 | 178 | |||
| IIEES | GIDE | Z | Pg | E | 2017-06-26 23:59:51 | -0.23 | y | 133 | 122 | |||
| IIEES | GIDE | N | Sg | E | 2017-06-27 00:00:08 | -0.2 | y | 133 | 122 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-27 00:00:11 | 0.46 | y | 271 | 132 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-27 00:00:14 | 0.67 | y | 298 | 203 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-27 00:00:23 | 0.45 | y | 367 | 125 | |||
| IIEES | MAKU | Z | Pn | E | 2017-06-27 00:00:25 | -0.47 | y | 398 | 301 | |||
