Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-06-28 04:22:01.8 |
| Date & Time (Local) | 1396/4/7 08:52:01.8 |

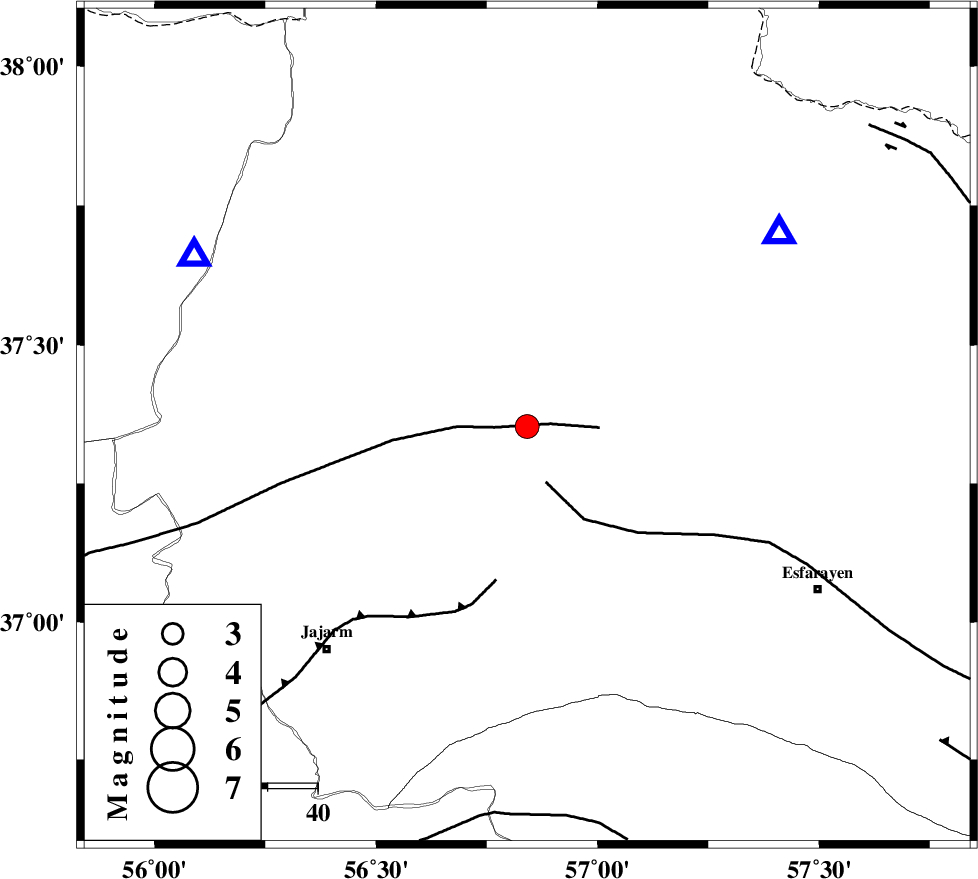

| Location | Lat:37.353 Lon: 56.841 |
| Region | Khorasan(north) Province, 24 km South of Ashkhaneh |
Nearest Cities |
|
| 1 km North of Shogan, Khorasan(north) Province | |
| 24 km South of Ashkhaneh, Khorasan(north) Province | |
| 36 km South West of Pish qaleh, Khorasan(north) Province | |
| 40 km North West of Cheharborj, Khorasan(north) Province | |
| 45 km South West of Void, Khorasan(north) Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 5 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 12 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 31 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117123 | IIEES | SHRO | N | 490.1 | 0.4 | 2017-06-28 04:22:52 | 2017-06-28 05:13:00 | n |
| 117124 | IIEES | SHRO | E | 489.5 | 0.48 | 2017-06-28 04:22:55 | 2017-06-28 05:13:00 | n |
| 117125 | IIEES | TABS | N | 45.8 | 0.56 | 2017-06-28 04:24:10 | 2017-06-28 05:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-06-28 04:22:14 | -0.1 | y | 63.2 | 52 | |||
| IIEES | MRVT | Z | Pg | E | 2017-06-28 04:22:16 | 0.25 | y | 74.7 | 297 | |||
| IIEES | MRVT | N | Sg | E | 2017-06-28 04:22:26 | -0.08 | y | 74.7 | 297 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-28 04:22:27 | 0 | y | 166 | 207 | |||
| IIEES | SHRO | N | Sg | E | 2017-06-28 04:22:49 | -0.14 | y | 166 | 207 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-28 04:22:57 | -0.11 | y | 412 | 176 | |||
| IIEES | TABS | N | Sg | E | 2017-06-28 04:23:54 | 0.17 | y | 412 | 176 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-28 04:23:20 | 0.53 | y | 588 | 201 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-28 04:23:24 | -0.51 | y | 625 | 217 | |||
