Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-06-28 18:21:41.9 |
| Date & Time (Local) | 1396/4/7 22:51:41.9 |

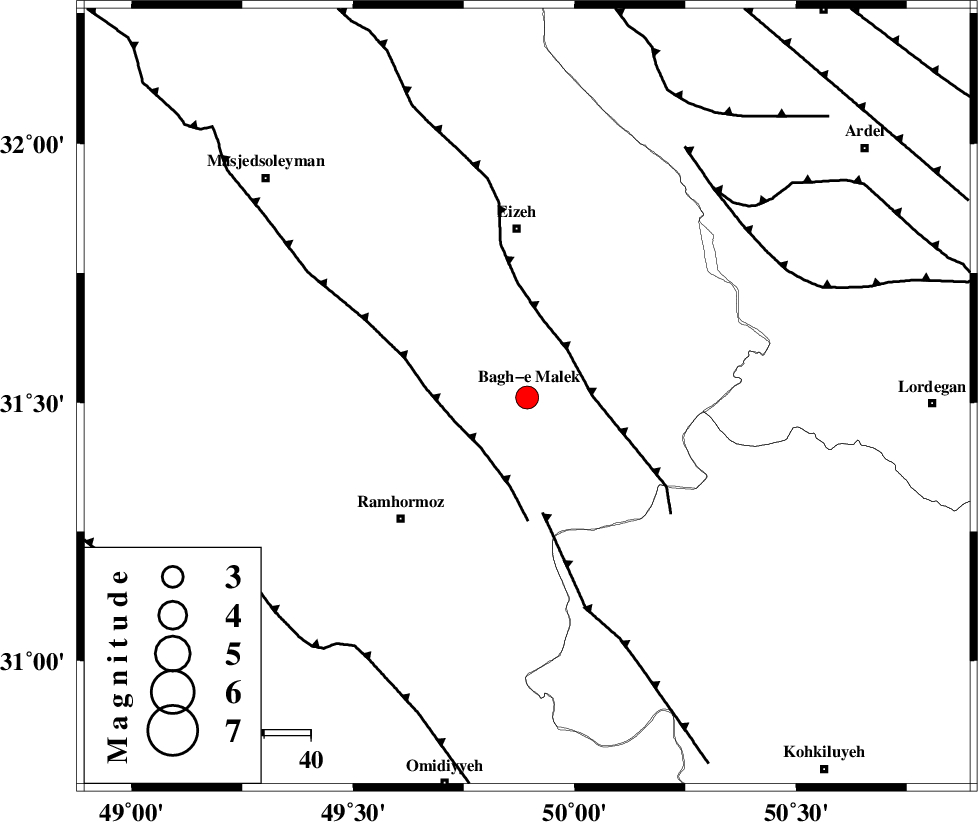

| Location | Lat:31.51 Lon: 49.893 |
| Region | Khoozestan Province, 1 km of Bagh Malek |
Nearest Cities |
|
| 1 km of Bagh Malek, Khoozestan Province | |
| 10 km of Abolabbas, Khoozestan Province | |
| 14 km South of Ghaleh tal, Khoozestan Province | |
| 19 km North East of Midavood-e sofla, Khoozestan Province | |
| 21 km North of Dalan, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 13 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 15 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 25 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 12 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117209 | IIEES | KHMZ | E | 116.4 | 0.33 | 2017-06-28 18:22:53 | 2017-07-01 10:38:00 | n |
| 117210 | IIEES | AHRM | N | 103.2 | 0.47 | 2017-06-28 18:23:28 | 2017-07-01 10:38:00 | n |
| 117211 | IIEES | AHRM | E | 69.6 | 0.32 | 2017-06-28 18:23:35 | 2017-07-01 10:38:00 | n |
| 117212 | IIEES | ILBA | E | 28.8 | 0.36 | 2017-06-28 18:23:24 | 2017-07-01 10:38:00 | n |
| 117213 | IIEES | ILBA | N | 39.3 | 0.48 | 2017-06-28 18:23:50 | 2017-07-01 10:38:00 | n |
| 117214 | IIEES | SNGE | N | 23.1 | 0.36 | 2017-06-28 18:23:36 | 2017-07-01 10:38:00 | n |
| 117215 | IIEES | SNGE | E | 26.2 | 0.36 | 2017-06-28 18:23:37 | 2017-07-01 10:38:00 | n |
| 117216 | IIEES | GHIR | E | 25.6 | 0.44 | 2017-06-28 18:23:52 | 2017-07-01 10:38:00 | n |
| 117217 | IIEES | GHIR | N | 24.2 | 0.55 | 2017-06-28 18:24:10 | 2017-07-01 10:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-06-28 18:22:20 | 0.33 | y | 247 | 2 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-28 18:22:28 | 0.13 | y | 310 | 62 | |||
| IIEES | AHRM | Z | Pn | E | 2017-06-28 18:22:30 | 1.22 | y | 323 | 155 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-28 18:22:31 | 0.31 | y | 337 | 2 | |||
| IIEES | GHVR | Z | Pn | E | 2017-06-28 18:22:33 | 0.79 | y | 353 | 21 | |||
| IIEES | ILBA | Z | Pn | E | 2017-06-28 18:22:38 | -2.58 | n | 4 | 418 | 305 | ||
| IIEES | YZKH | Z | Pn | E | 2017-06-28 18:22:45 | -0.26 | y | 455 | 76 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-28 18:22:45 | -1.03 | y | 463 | 330 | |||
| IIEES | GHIR | Z | Pn | E | 2017-06-28 18:22:45 | -1.43 | y | 466 | 139 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-28 18:22:50 | -0.42 | y | 496 | 22 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-28 18:23:18 | -0.43 | y | 719 | 69 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-28 18:23:22 | -0.27 | y | 755 | 47 | |||
