Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-07-04 23:40:27.6 |
| Date & Time (Local) | 1396/4/14 04:10:27.6 |
| Location | Lat:31.934 Lon: 57.479 |
| Region | Yazd Province, 98 km North-East of Ravar |
Nearest Cities |
|
| 25 km South of Hoz-e qorban, Yazd Province | |
| 94 km North East of Dehali, Kerman Province | |
| 98 km North East of Ravar, Kerman Province | |
| 122 km North East of Asfih, Yazd Province | |
| 126 km North East of Kuhbanan, Kerman Province | |
| Depth | 14 km |
| Agency | |

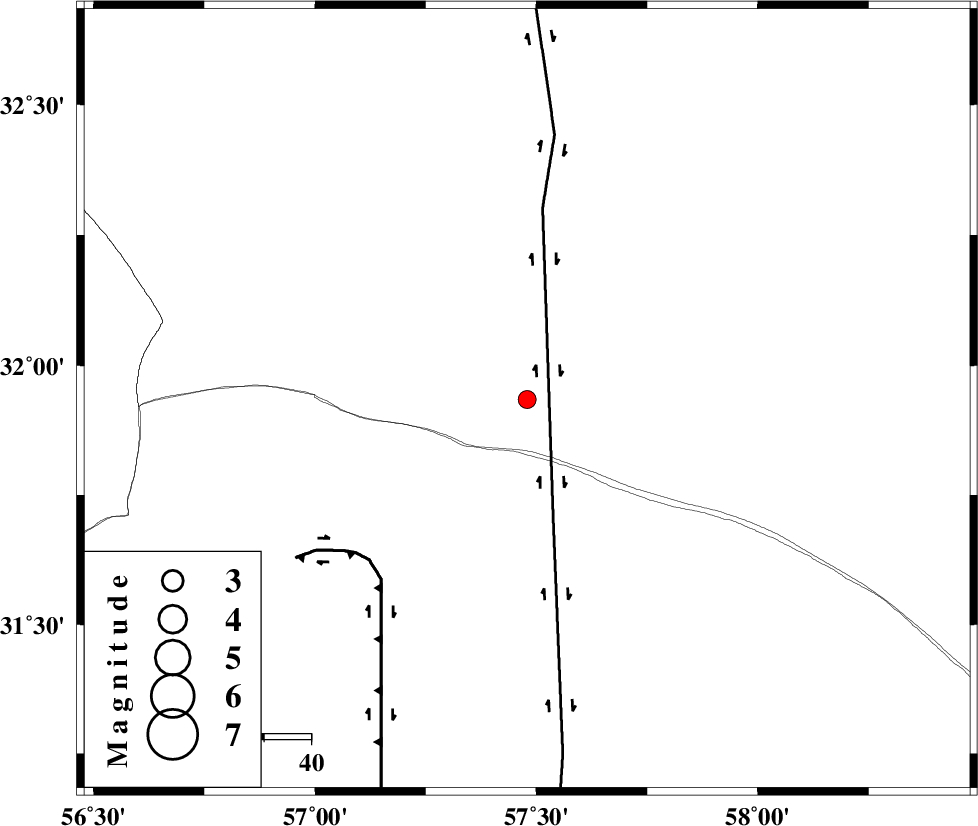

Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 25 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 48 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 108 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117365 | IIEES | TABS | N | 43.2 | 0.27 | 2017-07-04 23:41:28 | 2017-07-05 04:28:00 | n |
| 117366 | IIEES | YZKH | N | 24.2 | 0.31 | 2017-07-04 23:41:49 | 2017-07-05 04:28:00 | n |
| 117367 | IIEES | YZKH | E | 23.5 | 0.45 | 2017-07-04 23:41:50 | 2017-07-05 04:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2017-07-04 23:40:53 | -0.48 | y | 156 | 88 | |||
| IIEES | TABS | Z | Pg | E | 2017-07-04 23:40:59 | -0.18 | y | 193 | 350 | |||
| IIEES | TABS | N | Sg | E | 2017-07-04 23:41:22 | 0.01 | y | 193 | 350 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-04 23:41:10 | 0.51 | y | 277 | 281 | |||
| IIEES | YZKH | E | Sg | E | 2017-07-04 23:41:45 | -0.09 | y | 277 | 281 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-04 23:41:16 | 0.79 | y | 325 | 53 | |||
| IIEES | NASN | Z | Pn | E | 2017-07-04 23:41:31 | -0.36 | y | 450 | 284 | |||
| IIEES | SHRO | Z | Pn | E | 2017-07-04 23:41:33 | -0.28 | y | 472 | 344 | |||
