Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-07-10 07:04:53.0 |
| Date & Time (Local) | 1396/4/19 11:34:53.0 |

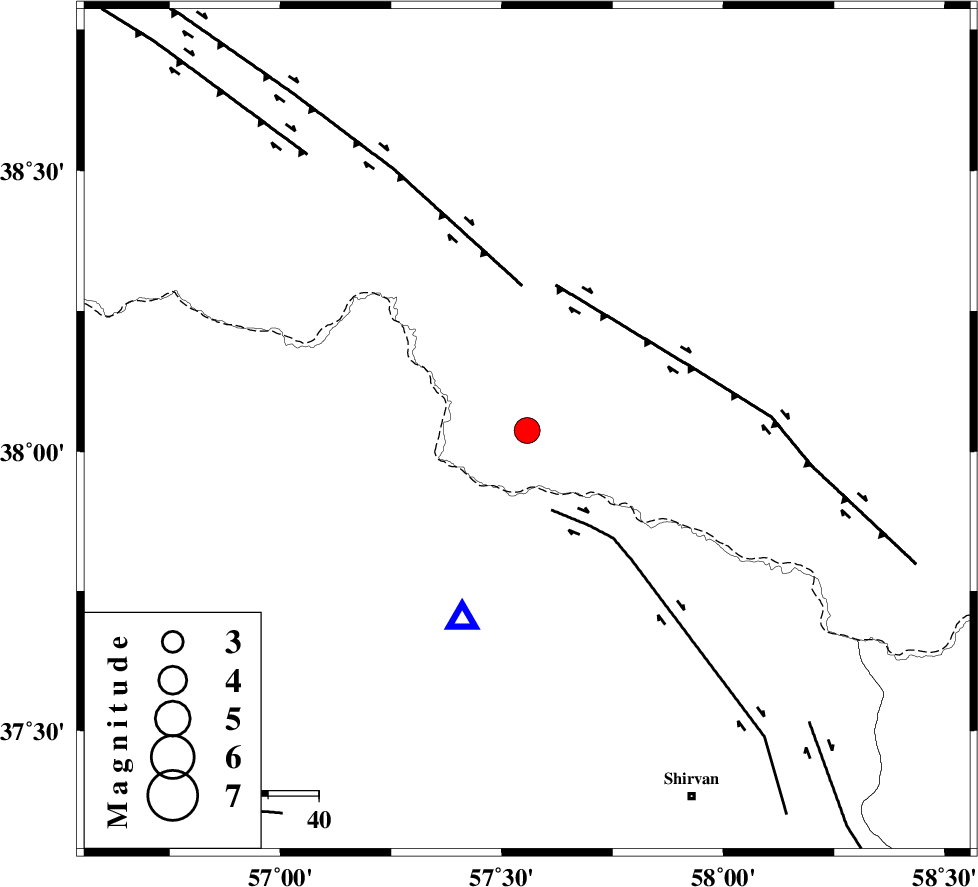

| Location | Lat:38.037 Lon: 57.557 |
| Region | , 66 km North-East of Bojnurd |
Nearest Cities |
|
| 17 km North of Gifan olia, Khorasan(north) Province | |
| 37 km North West of Yangi ghale-ye bala, Khorasan(north) Province | |
| 40 km North East of Raz, Khorasan(north) Province | |
| 50 km North West of Tukur, Khorasan(north) Province | |
| 51 km North West of Kuseh, Khorasan(north) Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 17 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 29 km | |
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 29 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117529 | IIEES | BJRD | N | 17220.1 | 0.32 | 2017-07-10 07:05:06 | 2017-07-10 07:46:00 | n |
| 117530 | IIEES | MRVT | E | 1178.6 | 0.19 | 2017-07-10 07:05:35 | 2017-07-10 07:46:00 | n |
| 117531 | IIEES | MRVT | N | 1184.8 | 0.44 | 2017-07-10 07:05:36 | 2017-07-10 07:46:00 | n |
| 117532 | IIEES | SHRO | E | 189.8 | 0.49 | 2017-07-10 07:06:12 | 2017-07-10 07:46:00 | n |
| 117533 | IIEES | SHRT | E | 17.5 | 0.69 | 2017-07-10 07:07:07 | 2017-07-10 07:46:00 | n |
| 117534 | IIEES | SHRT | N | 18.6 | 0.38 | 2017-07-10 07:07:08 | 2017-07-10 07:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-07-10 07:05:00 | -0.07 | y | 39.7 | 199 | |||
| IIEES | MRVT | Z | Pg | E | 2017-07-10 07:05:16 | -0.12 | y | 136 | 252 | |||
| IIEES | MRVT | N | Sg | E | 2017-07-10 07:05:33 | 0.07 | y | 136 | 252 | |||
| IIEES | SHRO | Z | Pn | E | 2017-07-10 07:05:35 | 1.11 | n | 4 | 264 | 212 | ||
| IIEES | TABS | Z | Pn | E | 2017-07-10 07:06:02 | 0.05 | y | 488 | 185 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-10 07:06:09 | 0.2 | y | 546 | 152 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-10 07:06:29 | 2.95 | n | 4 | 682 | 204 | ||
| IIEES | BSRN | Z | Pn | E | 2017-07-10 07:06:27 | -0.26 | y | 689 | 168 | |||
| IIEES | NASN | Z | Pn | E | 2017-07-10 07:06:31 | 0.2 | y | 723 | 218 | |||
