Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-07-13 19:22:01.5 |
| Date & Time (Local) | 1396/4/22 23:52:01.5 |

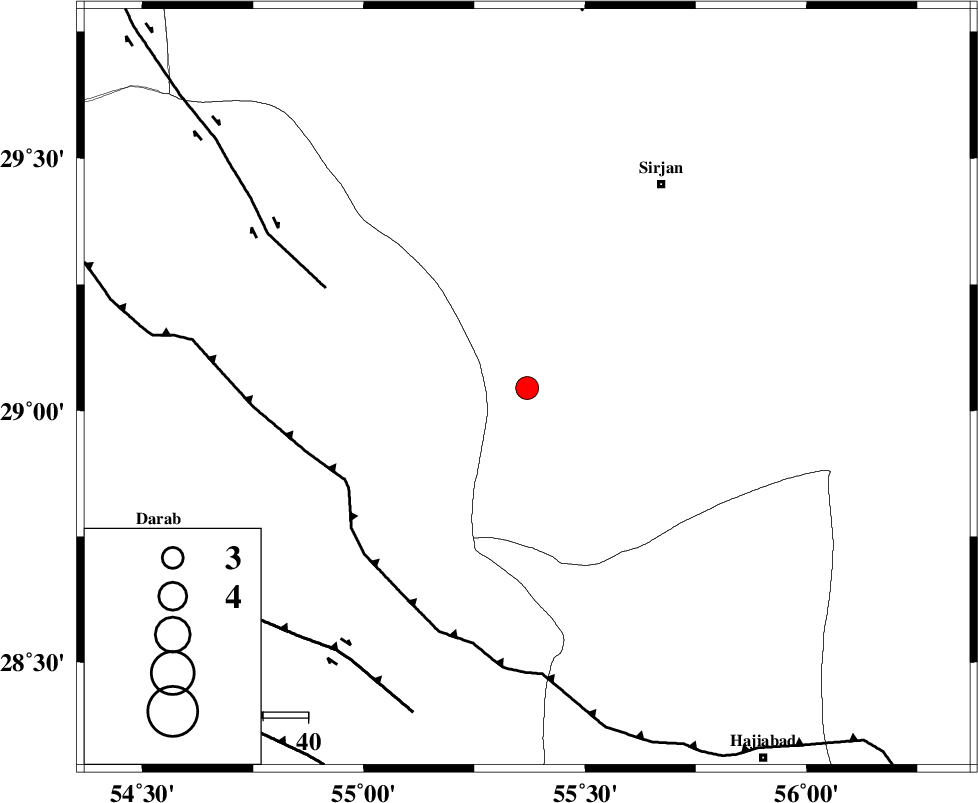

| Location | Lat:29.045 Lon: 55.369 |
| Region | Kerman Province, 54 km South-West of Sirjan |
Nearest Cities |
|
| 51 km South West of Najafabad, Kerman Province | |
| 51 km South West of Sharifabad, Kerman Province | |
| 52 km South West of Malekabad, Kerman Province | |
| 53 km North of Tal bargah, Fars Province | |
| 54 km South West of Sirjan, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 45 km | |
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 49 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 71 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117658 | IIEES | GHIR | N | 194.5 | 0.44 | 2017-07-13 19:23:23 | 2017-07-15 10:53:00 | n |
| 117659 | IIEES | GHIR | E | 173 | 0.37 | 2017-07-13 19:23:25 | 2017-07-15 10:53:00 | n |
| 117660 | IIEES | YZKH | E | 41 | 0.57 | 2017-07-13 19:24:00 | 2017-07-15 10:53:00 | n |
| 117661 | IIEES | TABS | E | 9.3 | 0.58 | 2017-07-13 19:24:45 | 2017-07-15 10:53:00 | n |
| 117662 | IIEES | TABS | N | 16 | 0.69 | 2017-07-13 19:25:03 | 2017-07-15 10:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-07-13 19:22:29 | -0.29 | y | 170 | 52 | |||
| IIEES | KRBR | N | Sg | E | 2017-07-13 19:22:50 | 0.35 | y | 170 | 52 | |||
| IIEES | BNDS | Z | Pg | E | 2017-07-13 19:22:34 | -0.12 | y | 199 | 156 | |||
| IIEES | BNDS | N | S | E | 2017-07-13 19:22:57 | 0.05 | y | 199 | 156 | |||
| IIEES | GHIR | Z | Pn | E | 2017-07-13 19:22:40 | 0.24 | y | 248 | 251 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-13 19:22:56 | 0.02 | y | 378 | 349 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-13 19:23:15 | -0.39 | y | 537 | 18 | |||
