Magnitude |
:2.4 |
| Date & Time (UTC) | 2017-07-15 07:36:04.2 |
| Date & Time (Local) | 1396/4/24 12:06:04.2 |

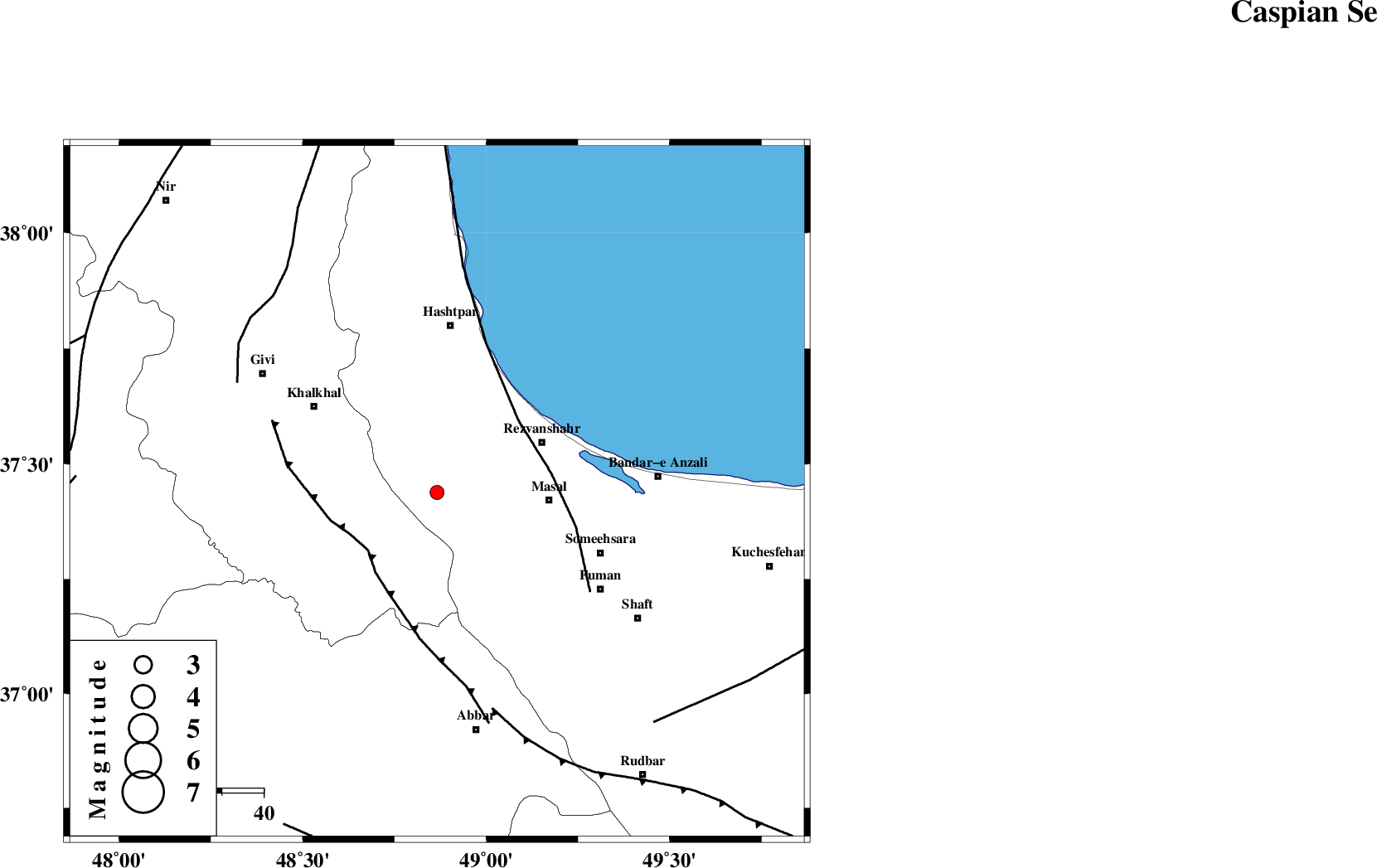

| Location | Lat:37.438 Lon: 48.866 |
| Region | Gilan Province, 27 km -West of Masal |
Nearest Cities |
|
| 13 km South of Ardeh, Gilan Province | |
| 13 km North of Shal, Ardebil Province | |
| 14 km North East of Kalur, Ardebil Province | |
| 22 km West of Shangavar, Gilan Province | |
| 22 km North East of Karin, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 22 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 26 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 54 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117674 | IIEES | ZNJK | E | 99.9 | 0.11 | 2017-07-15 07:36:30 | 2017-07-16 04:16:00 | n |
| 117675 | IIEES | GIDE | N | 129.8 | 0.26 | 2017-07-15 07:36:40 | 2017-07-16 04:16:00 | n |
| 117676 | IIEES | GIDE | E | 104.5 | 0.35 | 2017-07-15 07:36:41 | 2017-07-16 04:16:00 | n |
| 117677 | IIEES | GRMI | N | 32.6 | 0.14 | 2017-07-15 07:36:56 | 2017-07-16 04:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-07-15 07:36:19 | -0.05 | y | 86.6 | 191 | |||
| IIEES | GIDE | Z | Pg | E | 2017-07-15 07:36:22 | -0.3 | y | 109 | 121 | |||
| IIEES | GRMI | Z | Pg | E | 2017-07-15 07:36:32 | -0.14 | y | 174 | 331 | |||
| IIEES | GRMI | N | Sg | E | 2017-07-15 07:36:54 | 0.08 | y | 174 | 331 | |||
| IIEES | CHTH | Z | Pn | E | 2017-07-15 07:36:45 | 0.42 | y | 264 | 129 | |||
